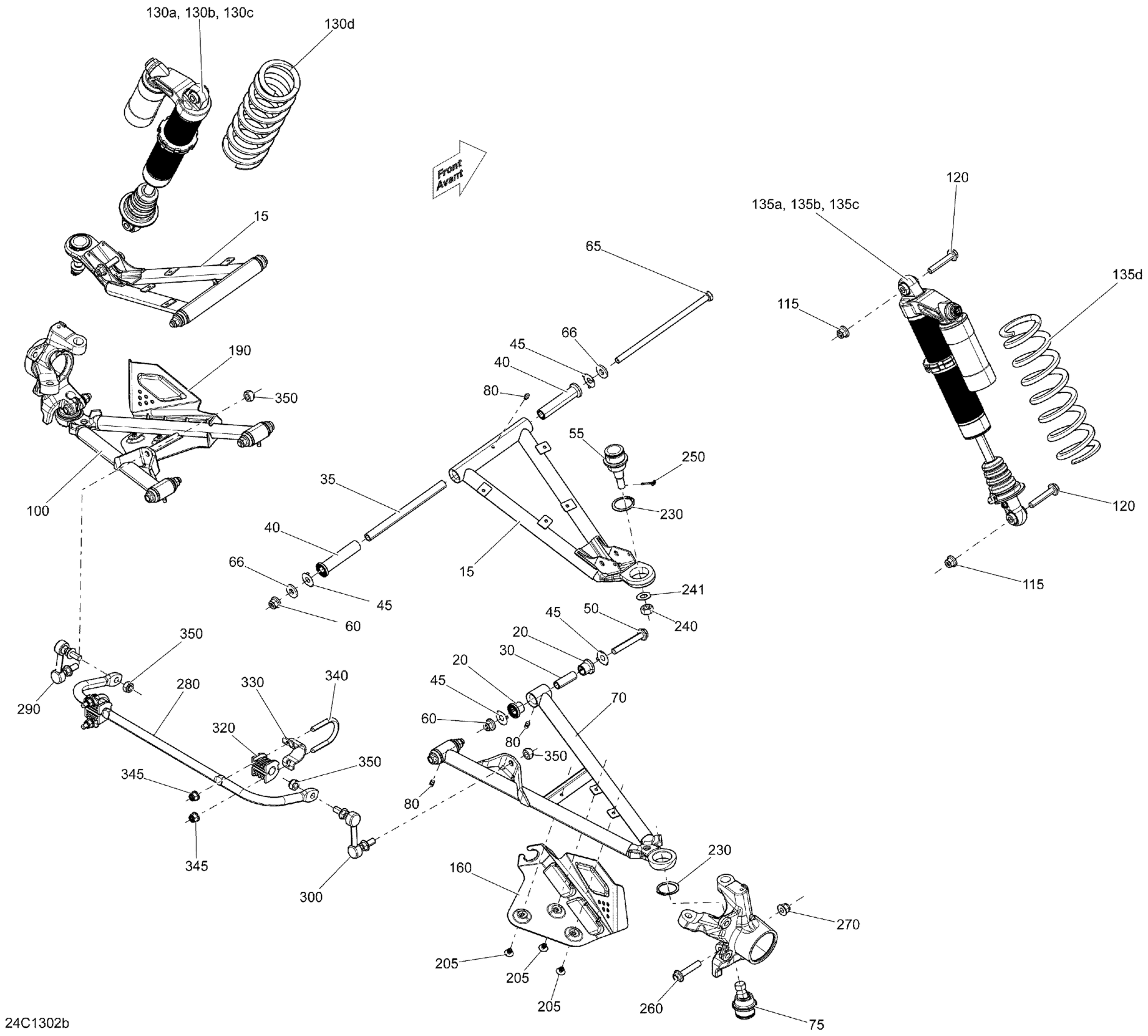

Can-Am Commander STD, DPS, XT, X 1000 EFI, 2013 Front Suspension X Diagram

#

Description
Price

15

Suspension Upper Arm

706200796

$177.58

20

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

30

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

35

Bushing

706202445

$13.28

40

Cushion

706201062

$1.79

45

Wear Plate

706201063

$0.85

50

Hex. Flange Screw M10 X 70

207607046

$2.82

55

Ball Joint

706202044

$34.30

60

Hex. Flange Elastic Nut M10

233201436

$2.00

65

Hex. Cap Screw M10 X 225

250001032

$10.90

66

Washer

503190439

$5.64

70

RH Lower Suspension Arm

706200744

$177.58

75

Ball Joint

706202045

$34.30

80

Grease Fitting

408200700

$3.21

100

LH Lower Suspension Arm

706200742

$177.58

115

Hex. Flange Elastic Nut M10

233201436

$2.00

120

Hex. Flange Screw M10 X 55

207605544

$3.19

130a

FRONT SHOCK ASS'Y - Call your local BRP dealership | Includes 130a to 130c

706201658

Unavailable

130b

O-Ring Bushing

715900209

$12.49

130c

Interior Bushing | XTP

715900210

$13.58

130d

Black, Front Spring | X Carbon/Black Model

706201617

$93.25

130d

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201124

Unavailable

135a

FRONT SHOCK ASS'Y - Call your local BRP dealership | Includes 130a to 130c

706201658

Unavailable

135b

O-Ring Bushing

715900209

$12.49

135c

Interior Bushing | XTP

715900210

$13.58

135d

Black, Front Spring | X Carbon/Black Model

706201617

$93.25

135d

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201124

Unavailable

160

RH Protector

706201670

$16.39

190

LH Protector

706201669

$16.39

205

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

230

Circlip

293370035

$2.48

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

260

Hex. Flange Screw M10 X 50

207605044

$5.04

270

Hex. Flange Elastic Nut M10

233201414

$1.45

280

Sway Bar Ass'y | X

706202560

$92.51

290

LH Sway Bar Link | X

706202536

$62.66

300

RH Sway Bar Link | X

706202537

$63.40

320

Stabilizer Bushing | X

706201086

$6.34

330

Clamp | X

706201087

$10.94

340

U-clamp | X

506060600

$14.90

345

Hex. Flange Elastic Nut M8

233281414

$1.31

350

Elastic Flange Nut M10

232501416

$1.43
