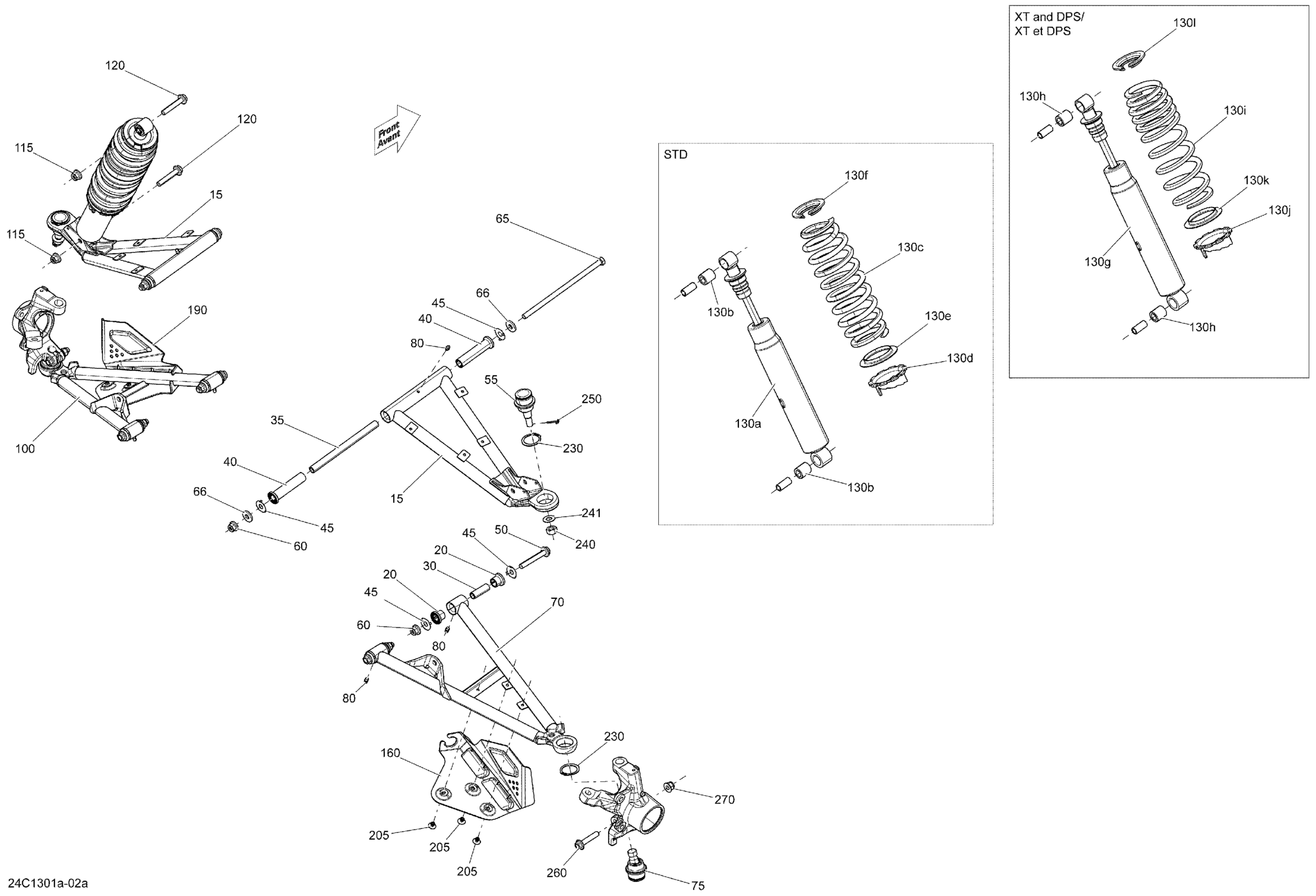

Can-Am Commander STD, DPS, XT, X 1000 EFI, 2013 Front Suspension STD, XT, DPS Diagram

#

Description
Price

15

Suspension Upper Arm

706200796

$177.58

20

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

30

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

35

Bushing

706202445

$13.28

40

Cushion

706201062

$1.79

45

Wear Plate

706201063

$0.85

50

Hex. Flange Screw M10 X 70

207607046

$2.82

55

Ball Joint

706202044

$34.30

60

Hex. Flange Elastic Nut M10

233201436

$2.00

65

Hex. Cap Screw M10 X 225

250001032

$10.90

66

Washer

503190439

$5.64

70

RH Lower Suspension Arm

706200744

$177.58

75

Ball Joint

706202045

$34.30

80

Grease Fitting

408200700

$3.21

100

LH Lower Suspension Arm

706200742

$177.58

115

Hex. Flange Elastic Nut M10

233201436

$2.00

120

Hex. Flange Screw M10 X 55

207605544

$3.19

130a

Front Shock | STD

706200780

$188.78

130b

Bushing

715900122

$9.28

130c

RED FRONT SPRING - Call your local BRP dealership | STD Model

706201631

Unavailable

130d

Adjustment Ring

706000910

$13.45

130e

Protector Ring | STD, XT

706000911

$6.73

130f

Spring Stopper

706000567

$14.40

130g

Front Shock | XT Yellow Model

706200782

$180.57

130h

Bushing

715900122

$9.28

130i

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

706200860

Unavailable

130i

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

706201369

Unavailable

130i

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

706201367

Unavailable

130i

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

706201369

Unavailable

130i

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

706200860

Unavailable

130j

Adjustment Ring

706000910

$13.45

130k

Protector Ring | STD, XT

706000911

$6.73

130l

Spring Stopper

706000567

$14.40

160

RH Protector

706201670

$16.39

190

LH Protector

706201669

$16.39

205

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

230

Circlip

293370035

$2.48

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

260

Hex. Flange Screw M10 X 50

207605044

$5.04

270

Hex. Flange Elastic Nut M10

233201414

$1.45
