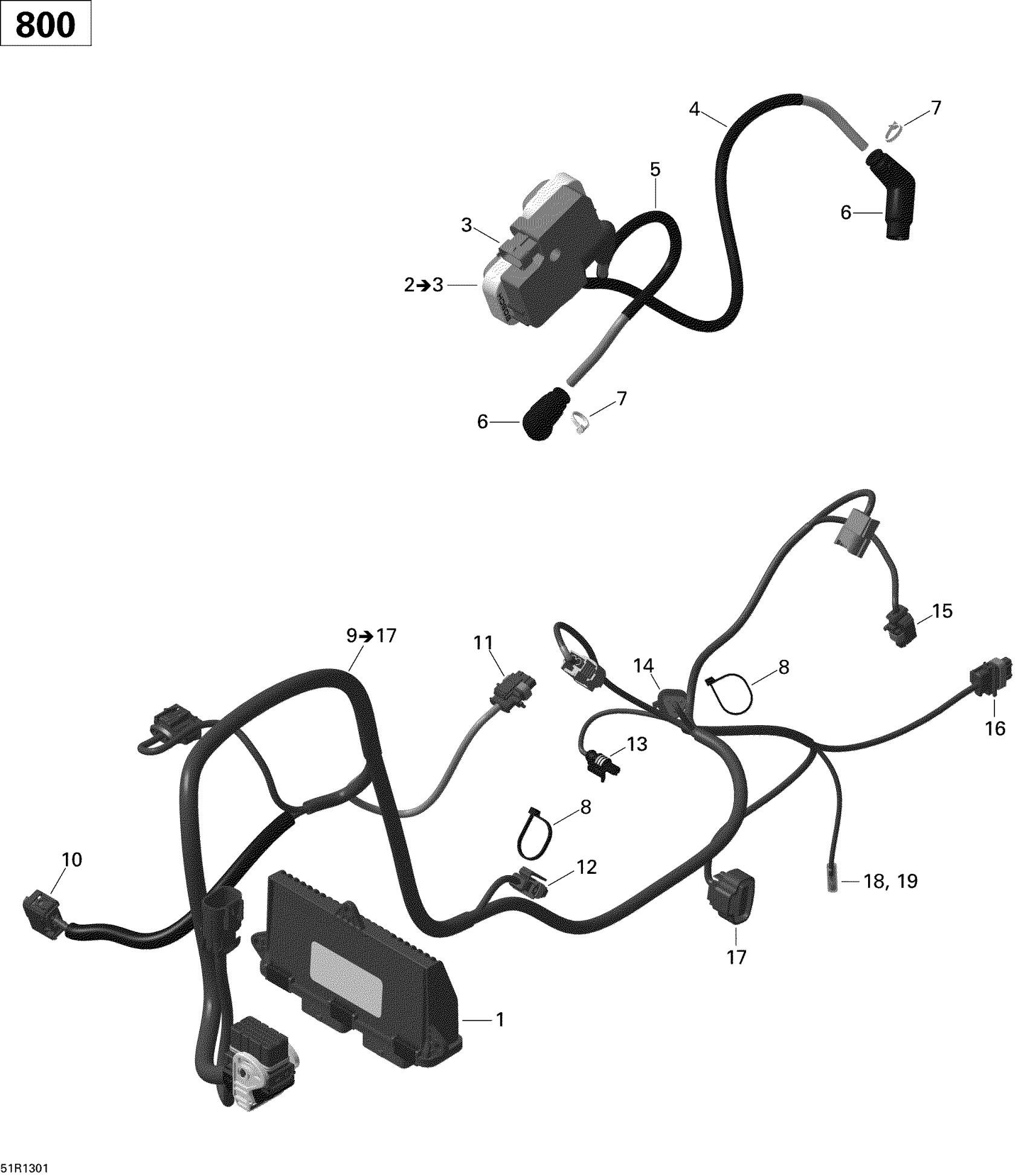

Can-Am Commander STD, DPS, XT, 800R EFI, 2013 Engine Harness And Electronic Module Diagram

ECM CONNECTOR - Call your local BRP dealership | Except Europe

420266992

Unavailable

ECM Connector | Europe

420266993

$1,539.99

Ignition Coil

278001546

$158.99

Housing

710000568

$11.12

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

Spark Plug Connector

420265248

$31.99

Tie Rap

420866710

$5.49

Tie Rap

420866714

$1.90

Engine Wiring Harness | Includes 9 to 17

420666333

$719.99

Housing

710003731

$8.59

Male Housing, 3 Circuits

278000997

$19.49

Male Housing, 2 Circuits

278001005

$19.49

Male Housing, 1 Circuit

278001012

$16.86

Male Housing

278002378

$13.99

Male Housing, 2 Circuits

278001005

$19.49

Male Housing, 3 Circuits

278000997

$19.49

Male Housing, 4 Circuits

710000329

$15.36

Female Terminal | DS 650 X

278001009

$3.19

Insulated Sheath

278001007

$3.58
