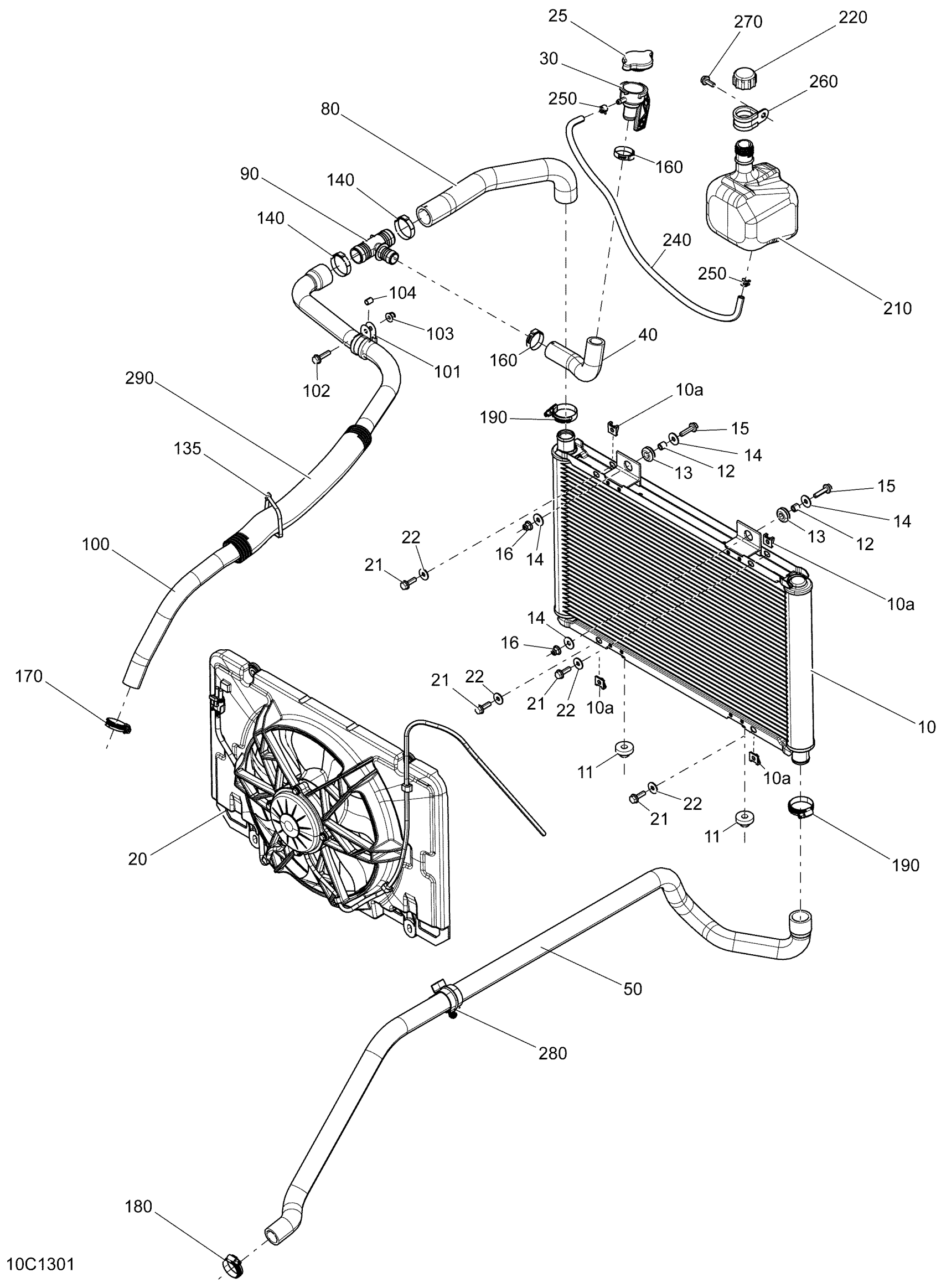

Can-Am Commander STD, DPS, XT, 800R EFI, 2013 Cooling System Diagram

#

Description
Price

10

Radiator

709200395

$359.97

10a

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

11

Grommet

709200285

$7.09

12

Bushing

293900105

$6.26

13

Grommet

709000582

$4.38

14

Flat Washer

250200082

$0.35

15

Hex. Flange Screw M6 X 25

207662534

$1.74

16

Flange Elastic Nut M6

233261434

$3.61

20

Fan Ass'y

709200566

$267.66

21

Hex. Flange Screw M6 X 20

207662044

$1.66

22

Flat Washer 6 mm

234062410

$0.64

25

Radiator Pressure Cap

709200207

$18.82

30

Filler Neck

709200179

$17.66

40

Filler Neck Hose

709200264

$10.14

50

Radiator Inlet Hose

709200355

$64.58

80

Radiator Outlet Hose

709200265

$10.98

90

T-Fitting

509000372

$7.87

100

Intermediate Hose

709200295

$41.51

101

Hose Anchor

709200036

$10.83

102

Hex. Flange Screw M6 X 25

207662534

$1.74

103

Flange Elastic Nut M6

233261434

$3.61

104

Spacer

707000065

$6.45

135

Tie Wrap 368 mm

293750008

$0.85

140

Gear Clamp

509000162

$5.84

160

Crimp Clamp

293650099

$4.60

170

Norma Gear Clamp

293650098

$4.28

180

Norma Gear Clamp

293650098

$4.28

190

Norma Gear Clamp

293650098

$4.28

210

Coolant Tank Ass'y

709200624

$96.89

220

Tank Cap

709200587

$5.29

240

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

250

Spring Clamp

414554800

$0.83

260

Hose Anchor

709200036

$10.83

270

Hex. Flange Screw M6 X 16

207661644

$0.61

280

Retainer

275500590

$7.18

290

Tubing 35 MM 1000MM Long

219704428

$8.57
