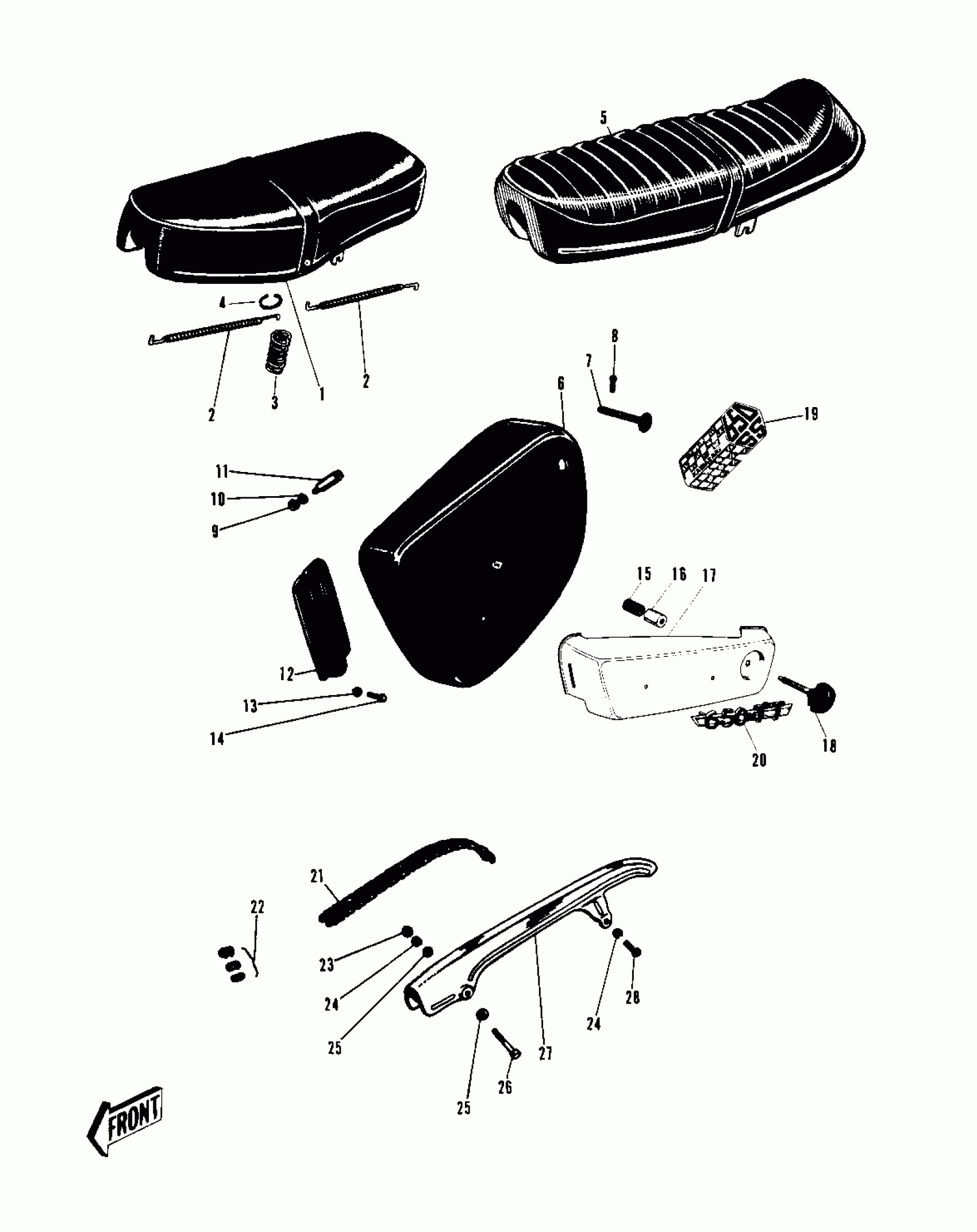

Kawasaki Commander SEAT/SIDE COVER/CHAIN COVER/CHAIN Diagram

#

Description
Price

1~4

SEAT DUAL

53001-059

Unavailable

1~4

SEAT-DUAL

53001-037

$162.61

2

SPRING SEAT

53026-002

$3.66

3

SPRING SEAT COIL

53026-001

$2.77

4

HOOK SPRING

53027-002

$0.54

6

COVER L.H SIDE BLACK

36001-020-10

$61.04

6

COVER L.H SIDE C.RED

36001-020-24

Unavailable

6

COVER L.H SIDE C.BLUE

36001-020-27

Unavailable

7

KNOB SIDE COVER

92077-014

Unavailable

8

PIN-COTTER,1.6X15

550D1615

$2.51

9

NUT,8MM

311B0800

$0.67

10

WASHER SPRING 8MM

461F0800

$0.40

11

NUT SIDE COVER FIT

92015-028

$4.51

12

HANGER SIDE COVER

36005-001

Unavailable

13

WASHER SPRING 6MM

461F0600

$0.69

14

BOLT-UPSET,6X12

112G0612

$1.45

21,22

DRIVE CHAIN ASSY

695Z5096

$99.80

22

CHAIN JOINT 530

92058-008

Unavailable

23

NUT 6MM

311B0600

$0.93

24

WASHER SPRING 6MM

461F0600

$0.69

25

WASHER PLAIN 6MM

411B0600

$2.84

26

SCREW PAN HEAD 6X50

220B0650

$1.25

27

CASE-CHAIN

36014-020

Unavailable

28

SCREW PAN HEAD 6X12

220B0612

Unavailable
