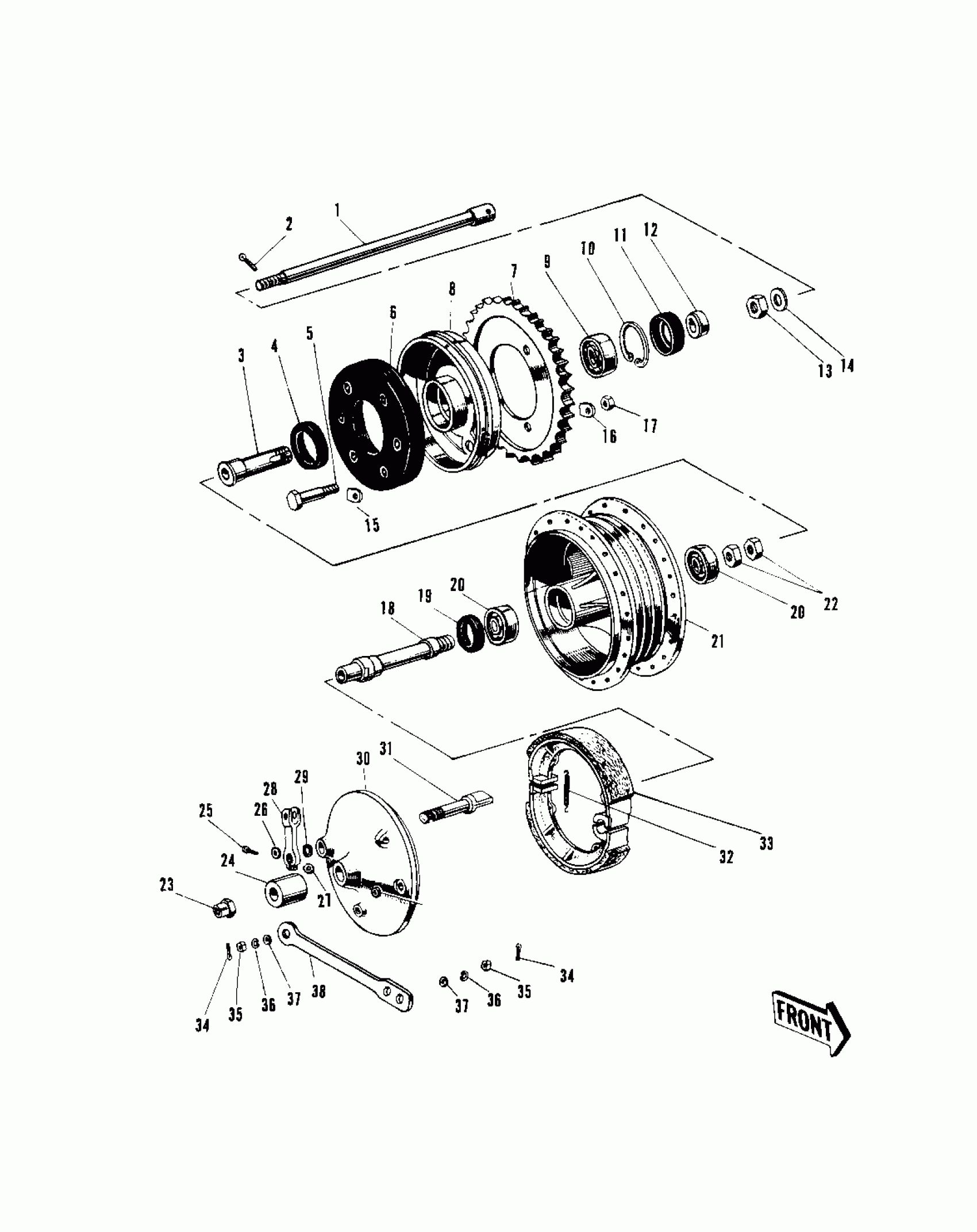

Kawasaki Commander REAR HUB/BRAKE (LATE PRODUCTION) Diagram

#

Description
Price

1

AXLE REAR

42031-018

$28.25

2

PIN COTTER 4.0X30

550D4030

$2.33

3,4 8~

COUPRING ASSY RR HUB

42033-002

$107.31

3

SLEEVE L.H REAR AXLE

42036-004

$28.15

4

OIL SEAL COUPLING

92053-008

Unavailable

5

BOLT SHOCK DAMPER FIT

92003-032

$3.85

5

BOLT-AIR CLNR. FITTNG

92003-067

$3.73

6

DAMPER REAR HUB SHOCK

42014-011

Unavailable

7

REAR SPROCKET 41T

42041-034

$73.87

9

BEARING-BALL,#6205C3

601B6205

$19.57

10

RING-SNAP,52MM

92033-1043

$8.05

11

SEAL-OIL,TWC35527

92052-006

Unavailable

12

COLLAR L.H REAR AXLE

42037-019

$2.24

13

NUT L.H SLEEVE

42045-007

$8.60

14

WASHER L.H SLEEVE

42046-010

$7.21

15

WASHER COUPLING LOCK

92088-009

Unavailable

16

WASHER-SPROCKET LOCK

92088-015

$21.71

17

NUT-HEX-FINE

315B1200

$0.93

17

NUT-HEX-FINE

315B1200

$0.93

18~22

REAR BRAKE DRUM COMPLETE

42005-012

$218.45

18

SLEEVE R.H.REAR AXLE

42011-001

$59.58

19

OIL SEAL RR AXLE R.H

652A355508

$9.61

20

BEARING CONE ROLLER

92116-001

$35.61

22

NUT BEARING ADJUST

42045-008

Unavailable

23

NUT,CASTLE,16MM

42045-014

$9.91

24

COLLAR REAR HUB R.H

42032-007

$10.22

25~33

PANEL-ASY,RR BRK,BLK

42006-010-21

$325.95

25

BOLT-UPSET,6X40

112G0640

$2.22

26

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

27

NUT 6MM

311B0600

$0.93

28

LEVER REAR BRAKE CAM

42029-008

$14.01

29

SEAL,BRAKE CAM

41051-001

$4.26

31

CAM SHAFT,REAR BRAKE

42026-017

$42.94

32

SPRING BRAKE SHOE

42020-003

Unavailable

33

SHOE,BRAKE

42019-007

$152.09

34

PIN-COTTER,2.0X20

550D2020

$0.96

35

NUT-HEX-FINE,10MM

314B1000

$0.67

36

WASHER SPRING 10MM

461F1000

$0.67

37

WASHER-PLAIN,10MM

411B1000

$0.93

38

TORQUE LINK REAR BRK

43007-013

$7.32
