Description

Price

1

AXLE REAR

42031-018

$28.25

2

PIN COTTER 4.0X30

550D4030

$2.33

3,4,8,

COUPRING ASSY RR HUB

42033-002

$107.31

3

SLEEVE L.H REAR AXLE

42036-004

$28.15

4

OIL SEAL COUPLING

92053-008

Unavailable

5

BOLT SHOCK DAMPER FIT

92003-032

$3.85

6

DAMPER REAR HUB SHOCK

42014-011

Unavailable

6

DAMPER REAR HUB SHOCK

42014-011

Unavailable

7

REAR SPROCKET 41T

42041-034

$73.87

9

BEARING-BALL,#6205C3

601B6205

$19.57

10

RING-SNAP,52MM

92033-1043

$8.05

11

SEAL-OIL,TWC35527

92052-006

Unavailable

12

COLLAR L.H REAR AXLE

42037-009

Unavailable

12

COLLAR L.H REAR AXLE

42037-019

$2.24

13

NUT L.H SLEEVE

42045-007

$8.60

14

WASHER L.H SLEEVE

42046-010

$7.21

15

WASHER-SPROCKET LOCK

92088-015

$21.71

16

NUT-HEX-FINE

315B1200

$0.93

17

SLEEVE R.H.REAR AXLE

42011-001

$59.58

18

OIL SEAL RR AXLE R.H

652A355508

$9.61

19

BEARING CONE ROLLER

92116-001

$35.61

20

GREASE NIPPLE 6MM

92005-001

$1.89

21

NUT CASTLE 12MM

321B1200

$3.86

22

WASHER-SPRING,12MM

461F1200

$0.96

23

WASHER PLAIN 12MM

411B1200

$0.93

25

STUD SHOCK DAMPER

42038-002

$7.83

26

NUT BEARING ADJUST

42045-008

Unavailable

27

NUT,CASTLE,16MM

42045-014

$9.91

28

COLLAR REAR HUB R.H

42032-007

$10.22

29

BOLT-UPSET,6X40

112G0640

$2.22

30

WASHER SPRING 6MM

461F0600

$0.69

31

LEVER REAR BRAKE CAM

42029-009

Unavailable

32

SEAL,BRAKE CAM

41051-001

$4.26

33

GREASE NIPPLE

92080-002

$1.23

13,29~

UNAVAILABLE IN PRICE BOOK

42006-017

Unavailable

35

CAM SHAFT,REAR BRAKE

42026-017

$42.94

36

PIN REAR TORQUE LINK

42017-004

Unavailable

37

WASHER-PLAIN,10MM

411B1000

$0.93

38

NUT-HEX-FINE,10MM

314B1000

$0.67

39

UNAVAILABLE IN PRICE BOOK

41044-002

$8.03

40

SPRING BRAKE SHOE

42020-003

Unavailable

41

SHOE,BRAKE

42019-007

$152.09

42

PIN-COTTER,2.0X20

550D2020

$0.96

43

NUT CASTLE 10MM

321B1000

Unavailable

44

WASHER SPRING 10MM

461F1000

$0.67

45

TORQUE LINK REAR BRK

43007-013

$7.32

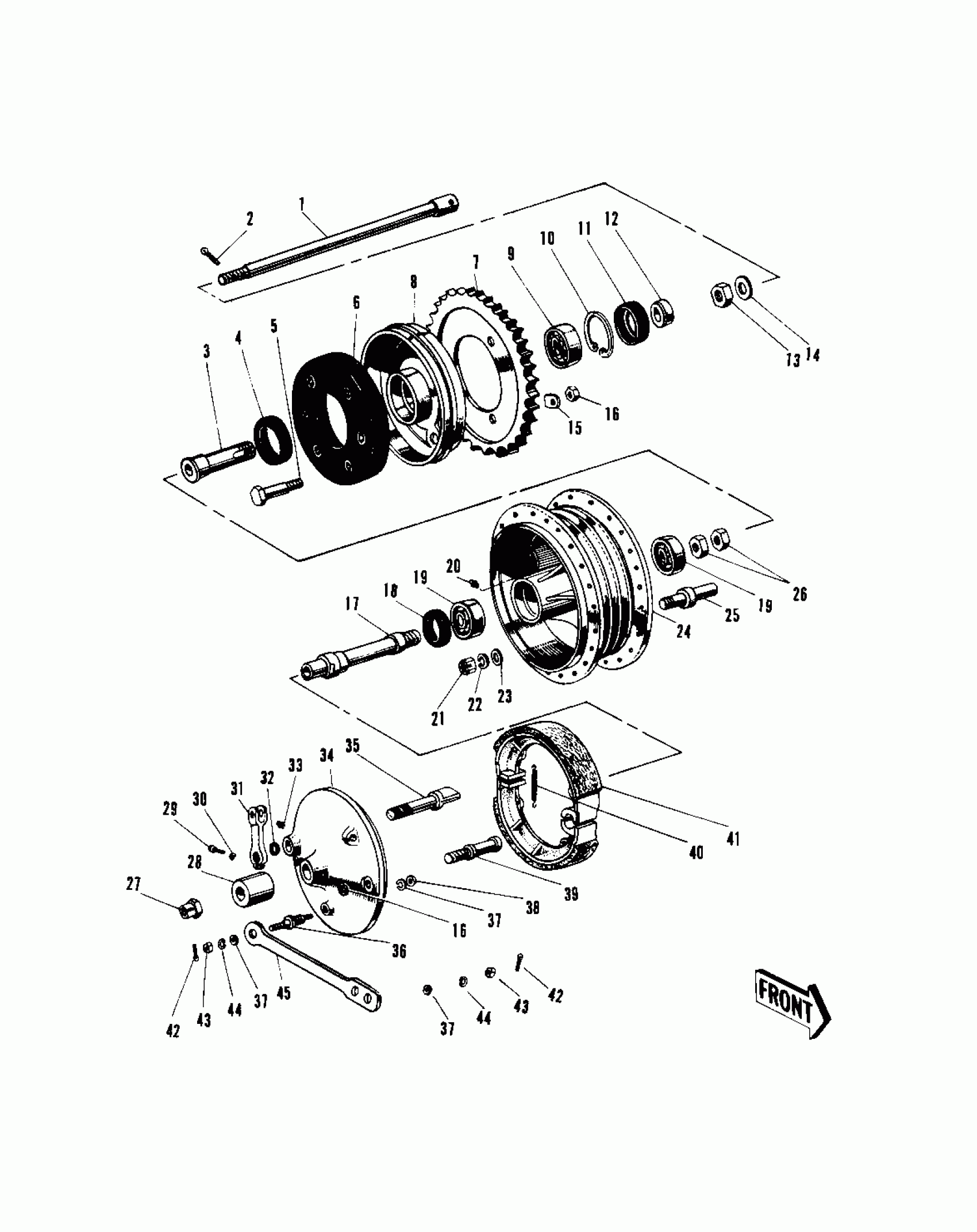

Kawasaki Commander REAR HUB/BRAKE (EARLY PRODUCTION) Diagram

AXLE REAR

PIN COTTER 4.0X30

COUPRING ASSY RR HUB

SLEEVE L.H REAR AXLE

OIL SEAL COUPLING

BOLT SHOCK DAMPER FIT

DAMPER REAR HUB SHOCK

DAMPER REAR HUB SHOCK

REAR SPROCKET 41T

BEARING-BALL,#6205C3

RING-SNAP,52MM

SEAL-OIL,TWC35527

COLLAR L.H REAR AXLE

COLLAR L.H REAR AXLE

NUT L.H SLEEVE

WASHER L.H SLEEVE

WASHER-SPROCKET LOCK

NUT-HEX-FINE

SLEEVE R.H.REAR AXLE

OIL SEAL RR AXLE R.H

BEARING CONE ROLLER

GREASE NIPPLE 6MM

NUT CASTLE 12MM

WASHER-SPRING,12MM

WASHER PLAIN 12MM

STUD SHOCK DAMPER

NUT BEARING ADJUST

NUT,CASTLE,16MM

COLLAR REAR HUB R.H

BOLT-UPSET,6X40

WASHER SPRING 6MM

LEVER REAR BRAKE CAM

SEAL,BRAKE CAM

GREASE NIPPLE

UNAVAILABLE IN PRICE BOOK

CAM SHAFT,REAR BRAKE

PIN REAR TORQUE LINK

WASHER-PLAIN,10MM

NUT-HEX-FINE,10MM

UNAVAILABLE IN PRICE BOOK

SPRING BRAKE SHOE

SHOE,BRAKE

PIN-COTTER,2.0X20

NUT CASTLE 10MM

WASHER SPRING 10MM

TORQUE LINK REAR BRK
