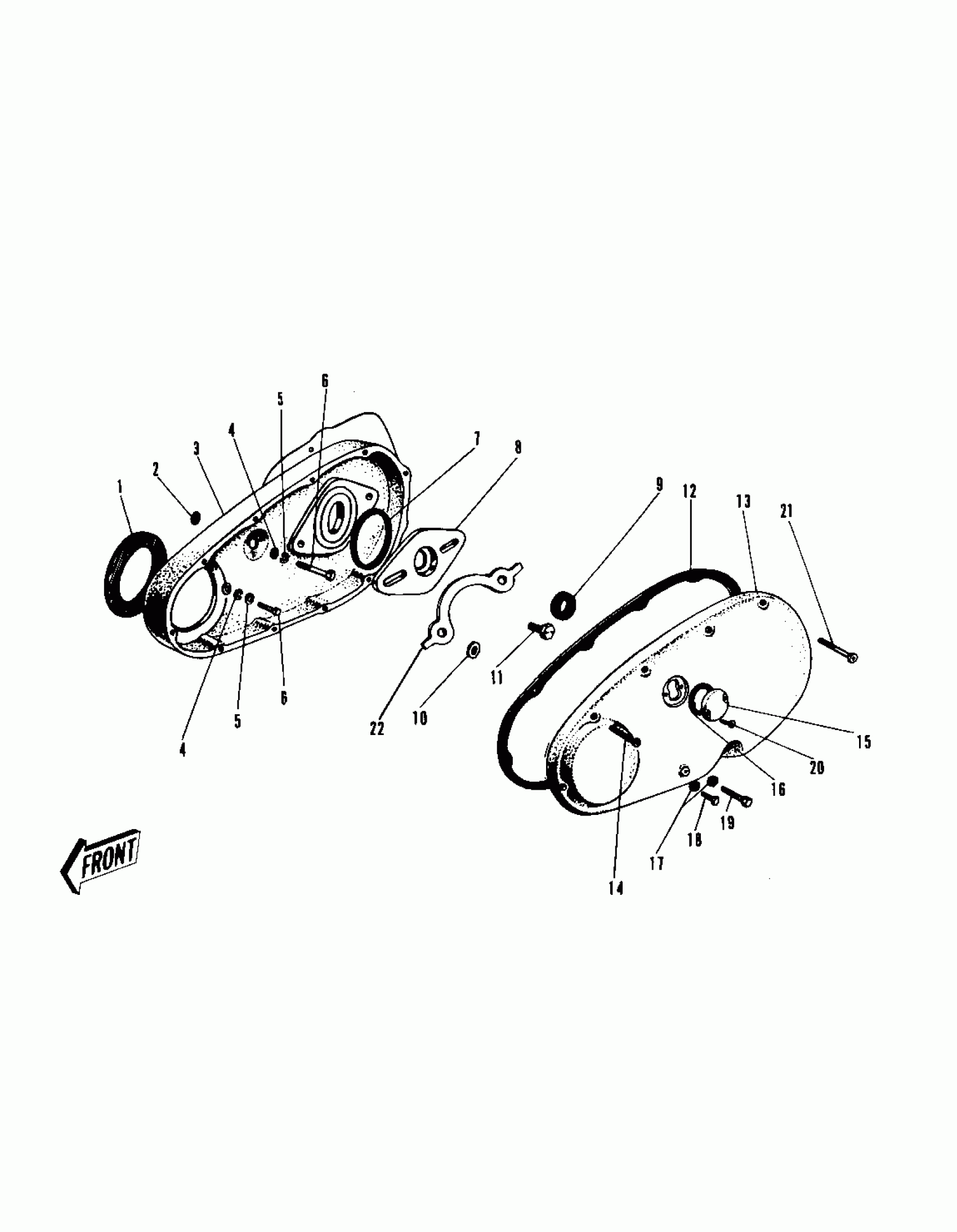

Kawasaki Commander PRIMARY CHAIN CASE Diagram
#
Description
Price
1
GASKET FR CHAIN CASE
14016-001
Unavailable
2
GASKET
92065-033
$1.07
3
CASE FRONT CHAIN
14005-001
Unavailable
4
WASHER PLAIN 8MM
410B0800
$0.93
5
WASHER SPRING 8MM
461F0800
$0.40
6
BOLT HEX HEAD 8X28
114G0828
Unavailable
6
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
7
SEAL FRONT CHAIN CASE
14012-001
Unavailable
8
PLATE SEAL
14011-001
Unavailable
9
OIL SEAL TC26388
92052-008
Unavailable
10
WASHER,8.5X26X1.6
92022-092
Unavailable
10
WASHER SEAL PLATE
92022-101
$4.31
11
BOLT SEAL PLATE
92001-068
$3.90
12
GASKET-CHAIN CASE COV
14045-011
$60.17
13
COVER FRNT CHAIN CASE
14031-024
Unavailable
14
SCREW PAN HEAD 6X40
220B0640
Unavailable
15
UNAVAILABLE IN PRICE BOOK
14040-002
Unavailable
15
CAP HOLE
14028-004
Unavailable
16
GASKET HOLE CAP
14049-003
$3.55
17
GASKET 8MM
751P0800
Unavailable
17
WASHER PLAIN 87M
92022-154
$6.70
18
BOLT SMALL
114G0812
Unavailable
19
BOLT HEX HEAD 8X70
114B0870
$4.46
20
SCREW-PAN-CROS,6X14
220B0614
$1.48
21
SCREW PAN HEAD 6X70
220B0670
$3.84
22
WASHER LOCK
92088-001
$3.26
