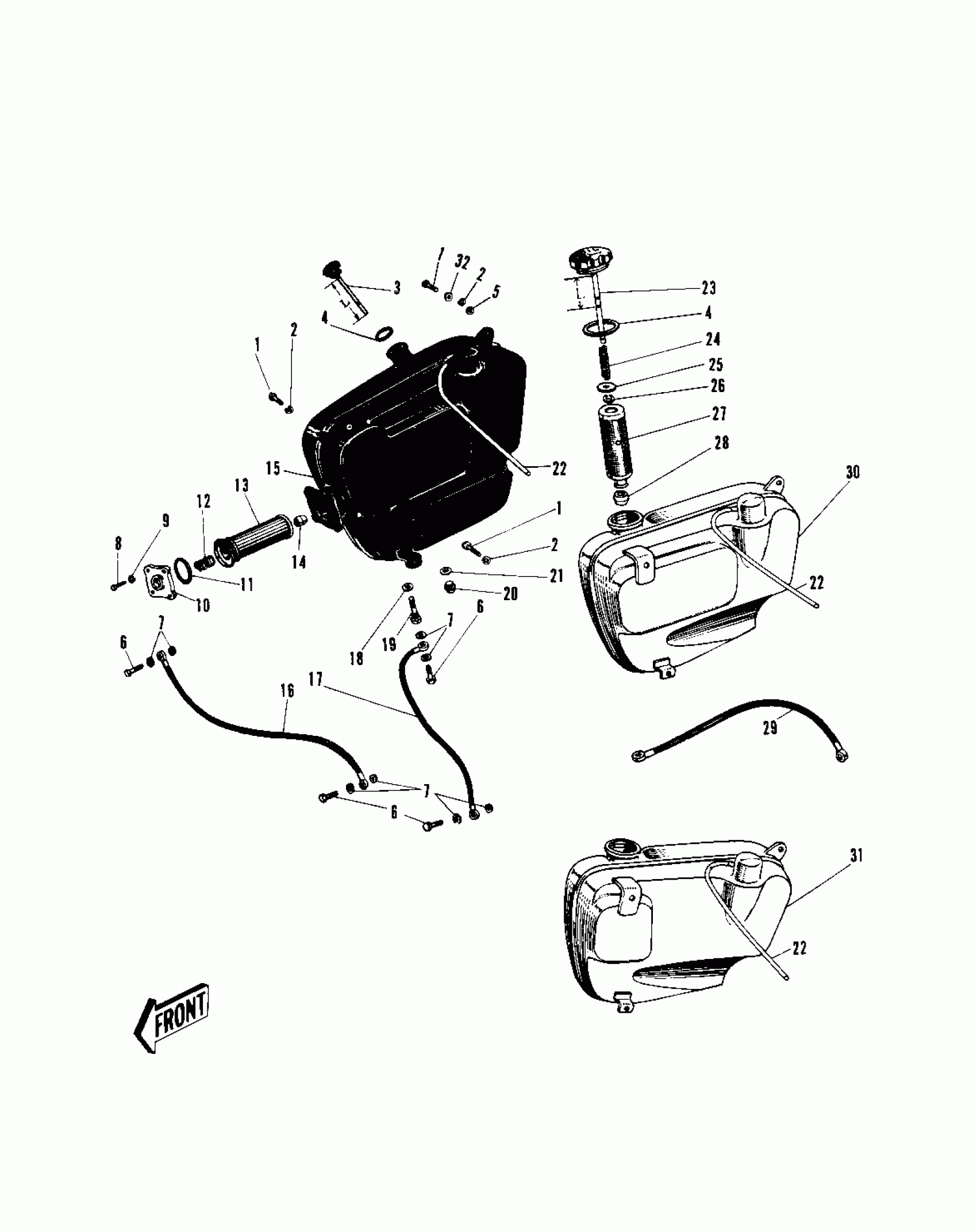

Kawasaki Commander OIL TANK Diagram
#
Description
Price
1
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
2
WASHER SPRING 8MM
461F0800
$0.40
3
CAP OIL TANK
52003-013
$3.44
4
"0" RING,36MM
670B3036
$1.03
5
NUT,8MM
311B0800
$0.67
6
BOLT BANJO
92060-003
$5.70
6
BOLT BANJO
92060-007
$7.33
7
GASKET OIL PIPE BANJO
92065-037
$3.59
8
BOLT-UPSET
112G0618
$1.01
9
WASHER SPRING 6MM
461F0600
$0.69
10
UNAVAILABLE IN PRICE BOOK
52012-001
$13.57
11
O RING,65MM
671B2565
$8.86
12
SPRING-OIL FILT ELMNT
16100-001
$0.99
13
ELEMENT OIL FILTER
52010-002
Unavailable
14
BUSH OIL FILTER
52011-002
$3.28
15
TANK,OIL,BLACK
52001-009-10
$72.40
15
TANK OIL C.RED
52001-009-24
$101.04
15
UNAVAILABLE IN PRICE BOOK
52001-009-27
$92.10
16
PIPE RETURN
52008-001
Unavailable
17
PIPE OUTLET
52007-001
Unavailable
18
GASKET OIL FILTER
92065-038
$1.79
19
FILTER OUTLET PIPE
52009-001
$22.42
20
BOLT OIL TANK DRAIN
92003-023
$3.62
21
GASKET DRAIN PLUG
92065-039
$3.58
22
TUBE VINYL 5X470, ACTUAL L=400MM
700Q05470
Unavailable
23
CAP OIL TANK
52003-005
Unavailable
23
UNAVAILABLE IN PRICE BOOK
52003-010
Unavailable
23
CAP OIL TANK
56019-008
$7.41
24
SPRING OIL FILTER
52013-001
$2.29
25
CAP OIL FILTER
52012-002
$0.91
26
CIRCLIP 3MM
482K3000
$1.78
27
ELEMENT OIL FILTER
52010-003
$31.66
27
ELEMENT-OIL FILTER
52010-004
$71.32
28
BUSH OIL FILTER
52011-002
$3.28
29
PIPE OIL TANK RETURN
52008-002
$130.89
30
UNAVAILABLE IN PRICE BOOK
52001-011-10
Unavailable
30
TANK OIL C.RED
52001-011-24
$72.39
30
TANK OIL C.BLUE
52001-011-27
Unavailable
31
TANK OIL C.RED
52001-017-24
$72.82
31
TANK OIL C.BLUE
52001-017-27
$110.34
32
WASHER PLAIN 8MM
410B0800
$0.93
