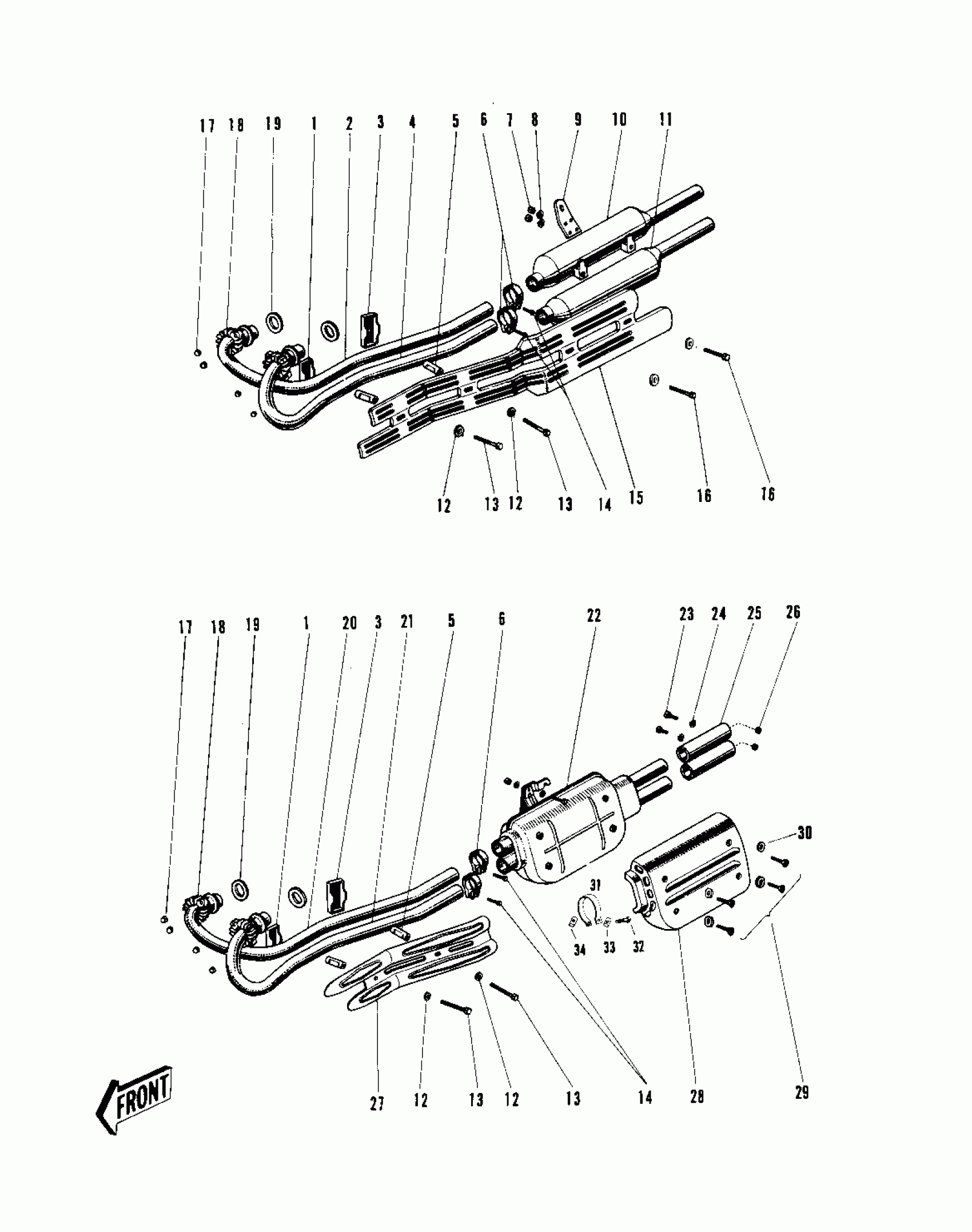

Kawasaki Commander MUFFLERS (W2TT) Diagram

#

Description
Price

1

HOLDER EXH PIPE FRONT

18053-001

Unavailable

2

PIPE EXHAUST R.H

18049-061

$50.71

3

HOLDER EXH PIPE REAR

18052-001

Unavailable

4

UNAVAILABLE IN PRICE BOOK

18049-060

$43.83

5

COLLAR

92026-052

Unavailable

6

CLAMP

92037-030

$4.27

7

NUT,8MM

311B0800

$0.67

8

WASHER SPRING 8MM

461F0800

$0.40

9

BRACKET

18061-030

Unavailable

10

MUFFLER ASSY R.H

18014-008

$113.07

11

MUFFLER ASSY L.H

18013-007

$113.07

12

WASHER PLAIN 8MM

410B0800

$0.93

13

BOLT HEX HEAD 8X63

110N0863

$1.65

14

SCREW FLT FIL HD 6X25

210E0625

Unavailable

14

SCREW PAN HEAD 6X25

220B0625

$2.60

15

COVER,MUFFLER

18057-020

$29.97

16

BOLT HEX HEAD 8X14

110N0814

$3.53

17

UNAVAILABLE IN PRICE BOOK

92015-012

Unavailable

18

UNAVAILABLE IN PRICE BOOK

1806-019

Unavailable

19

GASKET,EXHAUST PIPE H

11009-1840

$8.17

20

PIPE EXHAUST R.H

18049-042

Unavailable

21

PIPE EXHAUST L.H

18049-043

Unavailable

22~26

MUFFLER ASSY

18002-035

Unavailable

23

BOLT HEX HEAD 6X8

110B0608

$0.18

24

WASHER SPRING 6MM

461F0600

$0.69

25

TAIL PIECE

18048-007

$13.08

26

NUT 6MM

311B0600

$0.93

27

COVER EXHAUST PIPE

18057-031

Unavailable

28

UNAVAILABLE IN PRICE BOOK

18057-015

Unavailable

29

SCREW PAN HEAD 6X8

220E0608

$1.78

30

WASHER PLAIN 6MM

411B0600

$2.84

31

CLAMP

92037-038

$24.22

32

BOLT-SMALL-UPSET

115B0832

Unavailable

33

BAND END B

21056-003

$26.52

34

BAND END A

21056-002

$26.52
