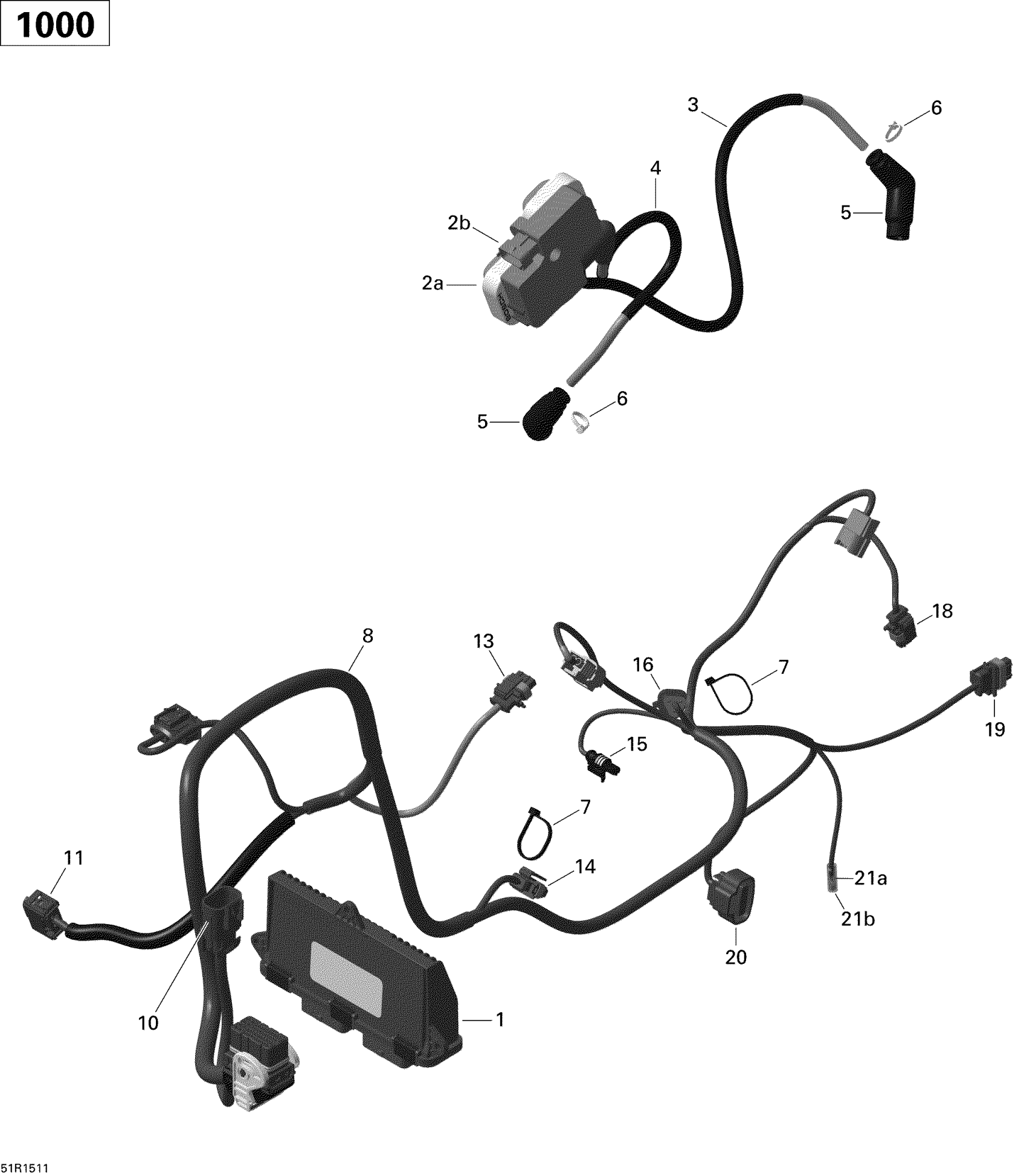

Can-Am Commander MAX 1000_LTD, 2015 Engine Harness And Electronic Module _51R1511 Diagram

#

Description
Price

1

Ecu Module

420264388

$739.99

2a

Ignition Coil

278001546

$158.99

2b

Housing

710000568

$11.12

3

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

4

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

5

Spark Plug Connector

420265248

$31.99

6

Tie Rap

420866710

$5.49

7

Tie Rap

420866714

$1.90

8

Engine Wiring Harness | Includes 9 to 20

420666550

$439.99

10

Housing

710001927

$8.79

11

Housing

710003731

$8.59

13

Male Housing, 3 Circuits

278000997

$19.49

14

Male Housing, 2 Circuits

278001005

$19.49

15

Male Housing, 1 Circuit

278001012

$16.86

16

Male Housing

278002378

$13.99

18

Male Housing, 2 Circuits

278001005

$19.49

19

Male Housing, 3 Circuits

278000997

$19.49

20

Male Housing, 4 Circuits

710000329

$15.36

21a

Insulated Sheath

278001007

$3.58

21b

Female Terminal | DS 650 X

278001009

$3.19
