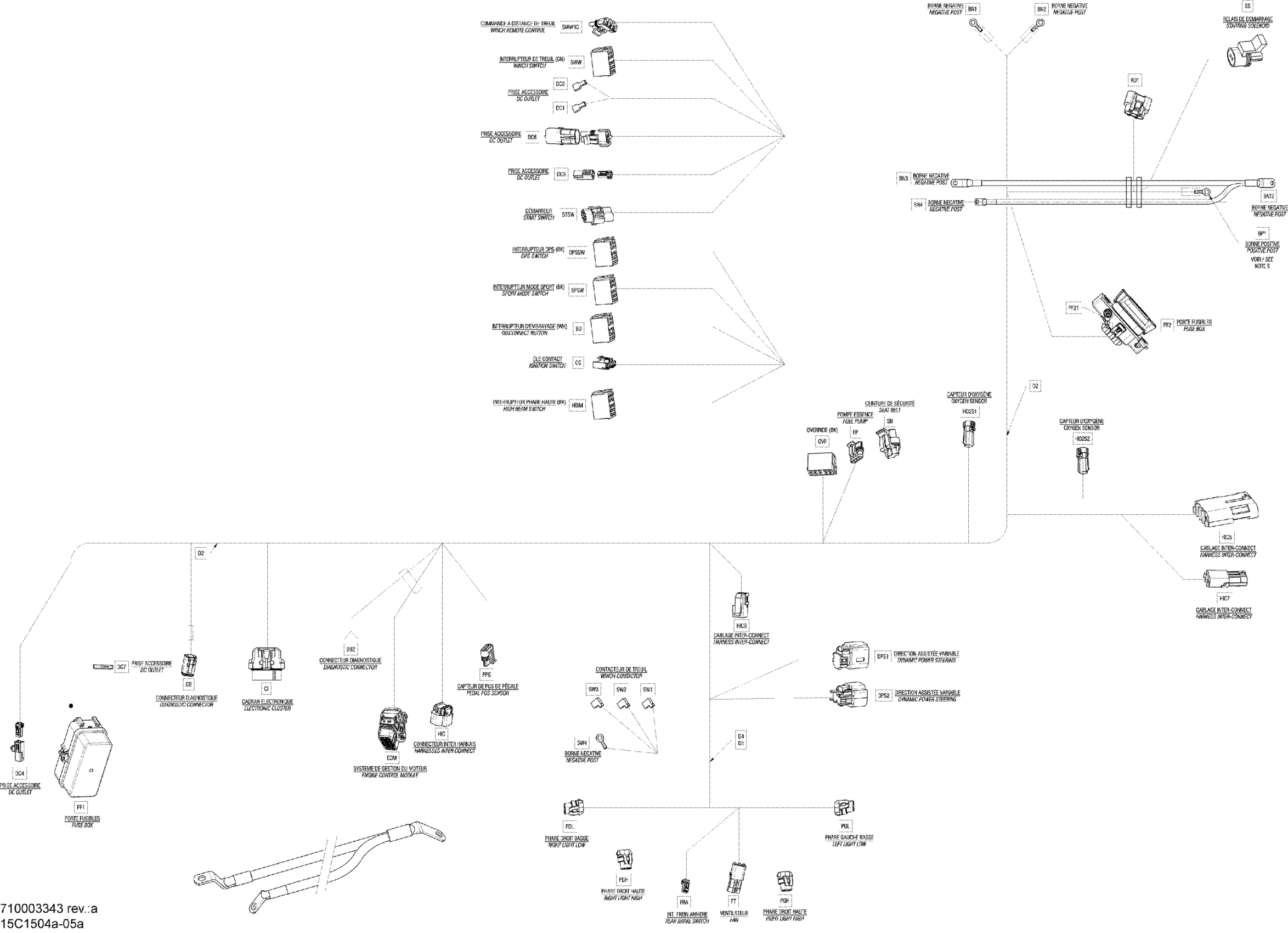

Can-Am Commander MAX 1000_LTD, 2015 Electrical Harness Main Harness_15C1505a Diagram

#

Description
Price

1

Cablage Ass. *Harness-Assy.

710004333

$916.39

1306

Tie-Rap

710002714

$2.88

BAT2

Open Barrel | XT Models

710000519

$9.25

BD

Housing Connector

710002001

$11.81

BD

Terminal

710003047

$3.12

BN1

Terminal

710000913

$5.30

BN1

Heat Shrink

710002589

Unavailable

BN2

Open Barrel Terminal

278001392

$4.00

BN2

Heat Shrink

710002589

Unavailable

BN3

Open Barrel | STD Models

710000518

$10.49

BN3

Heat Shrink

710002577

Unavailable

BN4

Flat Open Baril

710000507

Unavailable

BN4

Heat Shrink

710002577

Unavailable

BP1

Terminal

710000913

$5.30

BP1

Heat Shrink

710002589

Unavailable

CC

Lock

710000848

$3.12

CC

Male Housing, 6 Circuits

710000849

$8.67

CC

Terminal | Canada/Usa

710001635

$3.12

CI

Female Housing, 24 Circuits

515175801

$8.73

CI

Retainer Block

515175802

$10.34

CI

Wire Seal

515175803

$2.76

CI

Plug

515175812

$1.96

CI

Female Housing

710000399

$13.60

CI

Female Terminal

710001131

$6.79

D2

Diode

409012700

$10.51

D2

Heat Shrink

710002589

Unavailable

D4

Diode

409012700

$10.51

D4

Heat Shrink

710002589

Unavailable

D5

Diode

409012700

$10.51

D5

Heat Shrink

710002589

Unavailable

DB

Female Terminal

278001665

$4.28

DB

Housing, 6 Circuits

278002896

$13.60

DB

Male Wedge, 6 Circuits

515175678

$4.96

DB2

Female Terminal

278001665

$4.28

DC1

Female Terminal

409010800

$0.93

DC2

Female Terminal

409010800

$0.93

DC3

Female Terminal

515175231

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Male Housing, 2 Circuits

710000667

$7.25

DC4

Female Terminal

515175231

$4.00

DC4

Female Housing, 2 Circuits

515175658

$14.90

DC4

Male Housing, 2 Circuits

710000667

$7.25

DC6

Wire Seal

278000216

$2.93

DC6

Female Housing, 2 Circuits

278000217

$8.72

DC6

Wire Seal

278000218

$4.00

DC6

Male Connector, 2 Circuits

278000220

$12.66

DC6

Female Terminal

409007300

$0.42

DC6

Clip

710000992

$3.88

DC7

Insulated Sheath

278001007

$3.12

DC7

Female Terminal | DS 650 X

278001009

$2.93

DPS1

Cap

710001114

$16.39

DPS1

Housing

710001161

$10.51

DPS1

Lock

710001162

$3.18

DPS1

Wire Seal

710001163

$5.85

DPS1

Female Terminal

710001164

$6.79

DPS1

Cap

710001225

$8.34

DPS2

Fuse Holder

278001325

$8.31

DPS2

Female Terminal

710000113

$5.85

DPS3

Housing

710001157

$16.39

DPS3

Lock

710001323

$5.90

DPSSW

Housing

710002000

$6.73

DPSSW

Terminal

710003047

$3.12

ECM

Female Terminal Housing, 48 Circuits

710001588

$45.49

ECM

Female Terminal

710001589

$2.06

ECM

Cover, 48 positions

710001591

$11.54

ECM

Plug

710001592

$2.06

ECM

Plug

710001593

$2.06

ECM

Female Terminal

710001727

$2.93

ECM

Tie-Rap, 100mm

710002713

Unavailable

FP

Wire Seal

278001013

$3.12

FP

Female Terminal

278001014

$3.12

FP

Female Housing, 4 Circuits

409209700

$14.90

FP

Wire Seal

515176621

$6.79

FP

Female Terminal

710001340

$4.96

FRA

Female Terminal

515175231

$4.00

FRA

Female Housing, 2 Circuits

515175658

$14.90

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Wire Seal

278000218

$4.00

FT

Male Terminal

409004300

$5.30

FT

Clip

710000992

$3.88

HIBM

Housing

710002000

$6.73

HIBM

Terminal

710003047

$3.12

HIBM

Terminal

710003048

$4.00

HIC

LOCK - Call your local BRP dealership

710001221

$8.42

HIC

Cap

710001225

$8.34

HIC

Terminal

710001228

$3.12

HIC

Terminal

710001229

$2.93

HIC

Seal

710001230

$2.24

HIC

Seal

710001233

$2.93

HIC

Housing

710001928

$14.52

HIC5

Male Terminal | XT Models

278000222

$2.93

HIC5

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

HIC5

Wire Seal

278001065

$5.85

HIC5

Clip

710000992

$3.88

HIC7

Female Housing, 2 Circuits

278000217

$8.72

HIC7

Wire Seal

278000218

$4.00

HIC7

Male Terminal

409004300

$5.30

HIC7

Clip

710000992

$3.88

HIC8

Housing

710003175

$4.19

HIC8

Housing

710003177

$3.33

HO2S1

Seal

278001482

$2.93

HO2S1

Housing

710002466

$2.90

HO2S1

Lock

710002469

$1.93

HO2S1

Gold Terminal

710002597

$2.90

HO2S2

Seal

278001482

$2.93

HO2S2

Housing

710002466

$2.90

HO2S2

Lock

710002469

$1.93

HO2S2

Gold Terminal

710002597

$2.90

OVR

Housing

710002000

$6.73

OVR

Terminal

710003047

$3.12

PDH

Female Terminal

710000918

$5.85

PDH

Wire Seal

710001427

$2.09

PDH

Housing

710002278

$7.12

PDH

Lock

710002279

$3.93

PDL

Female Terminal

710000918

$5.85

PDL

Wire Seal

710001427

$2.09

PDL

Housing

710002278

$7.12

PDL

Lock

710002279

$3.93

PF1

Wire Seal

278000999

$2.93

PF1

Foam

278002172

$5.33

PF1

Seal

415128501

$1.73

PF1

Relay, 30 AMP

515176774

$18.63

PF1

Relay, 30 AMP

515176774

$18.63

PF1

Fuse Box Base Ass´y

415129856

$47.73

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 7.5 Amperes

710000743

$7.78

PF1

Little Fuse, 7.5 Amperes

710000743

$7.78

PF1

Little Fuse, 10 Amperes

710000744

$8.31

PF1

Little Fuse, 10 Amperes

710000744

$8.31

PF1

Little Fuse, 15 Ampere

710000745

$7.78

PF1

Little Fuse, 15 Ampere

710000745

$7.78

PF1

Little Fuse, 15 Ampere

710000745

$7.78

PF1

Little Fuse, 30 Amperes

710000747

$7.78

PF1

Little Fuse, 30 Amperes

710000747

$7.78

PF1

Fuse Puller

710000781

$8.29

PF1

Female Terminal

710000836

$5.30

PF1

Female Terminal

710000837

$4.96

PF1

Cap

710000840

$5.33

PF1

Fuse Cover

710001026

$20.12

PF1

Relay

715900824

$18.63

PF1

Relay

715900824

$18.63

PF1

Relay

715900824

$18.63

PF1

Fuse, 25 Amps

710002590

$17.88

PF1

Logo Fuse Relay

710002715

$10.34

PF2

Hex. Flange Elastic Nut M6

233261494

$1.45

PF2

Fuse, 40 AMP

710001047

$11.80

PF2

Fuse, 50 AMP

710001048

$4.75

PF2

Fuse, 50 AMP

710001048

$4.75

PF2

LOCK - Call your local BRP dealership

710001633

Unavailable

PF2

Terminal

710001636

$3.12

PF2

Terminal Joint

710001905

$2.09

PF2

Housing

710001996

$44.00

PF2

Seal Joint

710003134

$1.39

PF21

Open Barrel Terminal

278001392

$4.00

PF21

Protector Cap

710000526

$9.84

PF21

Heat Shrink

710002589

Unavailable

PGH

Female Terminal

710000918

$5.85

PGH

Wire Seal

710001427

$2.09

PGH

Housing

710002278

$7.12

PGH

Lock

710002279

$3.93

PGL

Female Terminal

710000918

$5.85

PGL

Wire Seal

710001427

$2.09

PGL

Housing

710002278

$7.12

PGL

Lock

710002279

$3.93

PPS

Female Terminal Housing 6 Circuits

278002299

$8.58

PPS

Female Terminal

710001119

$4.96

RD1

Female Housing, 3 Circuits

710000879

$24.60

RD1

Cap

710000882

$10.55

RD1

Seal

710001932

$3.06

RD1

Terminal

710001934

$5.18

SB

Seal

278001482

$2.93

SB

Female Terminal

710001134

$5.85

SB

Lock

710002043

$0.81

SB

Housing

710002177

$3.12

SPSW

Housing

710002000

$6.73

SPSW

Terminal

710003047

$3.12

SS

Female Housing, 2 Circuits

515177192

$7.25

SS

Terminal

710000925

$2.93

SS

Wire Seal

710001163

$5.85

STSW

Female Terminal

409012100

$4.28

STSW

Seal

409012300

$4.25

STSW

Female Terminal Housing, 2 Circuits

409209200

Unavailable

SW1

Female Terminal

409010300

$4.00

SW2

Female Terminal

409010300

$4.00

SW3

Female Terminal

710000038

$4.19

SW4

Open Barrel

278000992

$2.06

SW4

Heat Shrink Tubing

710002588

Unavailable

SWW

Housing Connector

710002003

$11.81

SWW

Terminal

710003047

$3.12

SWWRC

Female Terminal

278000223

$2.93

SWWRC

Male Housing, 3 Circuits

278000273

$8.72

SWWRC

Wire Seal

278001065

$5.85
