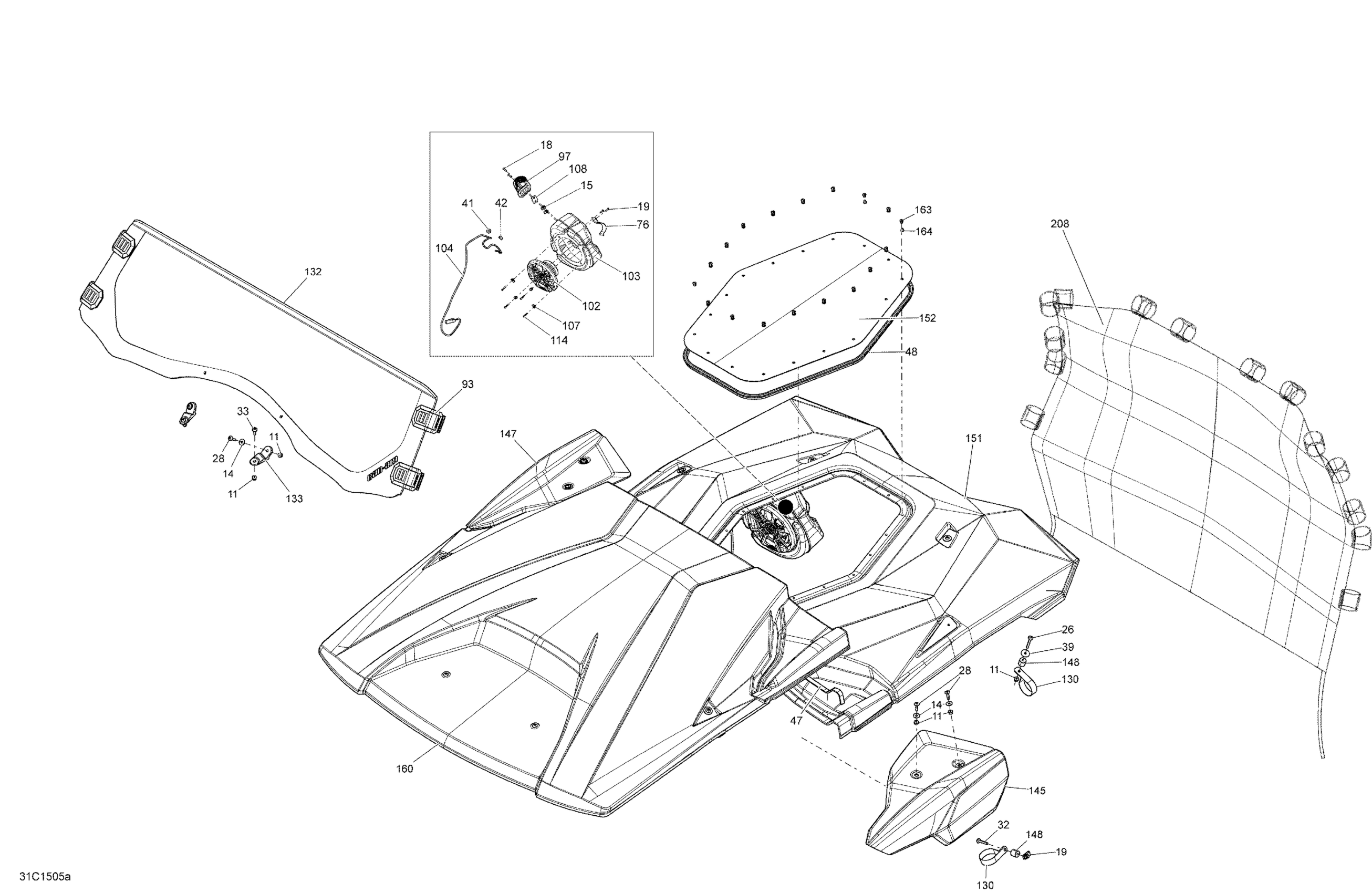

Can-Am Commander MAX 1000_LTD, 2015 Body And Accessories Roof And Windshield_31C1505a Diagram

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M5 X 20

250000724

$1.39

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss Screw M6 X 50

250000749

$3.11

Torx Screw M6 x 25

250000284

$1.74

Torx Screw M6 X 20

250000712

$1.74

Washer M6

250200029

$1.83

Grommet

414036300

$2.22

Clip

414227300

$1.45

Gasket, Neoprene 2000Mm Long

219704476

$12.64

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

U Brace Strip | LTD

705009030

$18.43

Retainer Velcro Perforated

705013420

$40.74

Retainer Velcro Perforated

705013420

$40.74

Speaker

710002838

$163.05

LH Speaker Box Ass'y

710002837

$141.51

RH Speaker Box Ass'y

710002839

$141.51

Speaker Harness

710004341

$109.97

Extruded Panel Nut M4 X 0.7

250100143

$6.77

M5 Support Plate

710002946

$7.37

Torx Pan Screw M4 X 20

250000622

$1.85

"P" Bracket, 2" Dia.

705005626

$25.35

Windshield Half Ass'y

703501024

$369.20

Windshield Support | LTD

705005776

$12.91

DEEP PEWTER-CAGE COVER KIT - Call your local BRP dealership

705008584

Unavailable

KIT CAGE COVER - Call your local BRP dealership

705008608

Unavailable

DEEP PEWTER-CAGE COVER KIT - Call your local BRP dealership

705008584

Unavailable

KIT CAGE COVER - Call your local BRP dealership

705008608

Unavailable

Roof Spacer Bushing

705007138

$1.83

PACKAGED ROOF - Call your local BRP dealership

705009204

Unavailable

Deep Black Roof Rear Section

705009205

$599.97

Clear Skylight Panel

705009562

$212.28

PACKAGED ROOF - Call your local BRP dealership

705009202

Unavailable

Deep Black Roof Front Section

705009203

$599.97

Plastic Dart

705009405

$1.83

Push Nut

705009406

$0.89

Wind Deflector

715003078

$133.82
