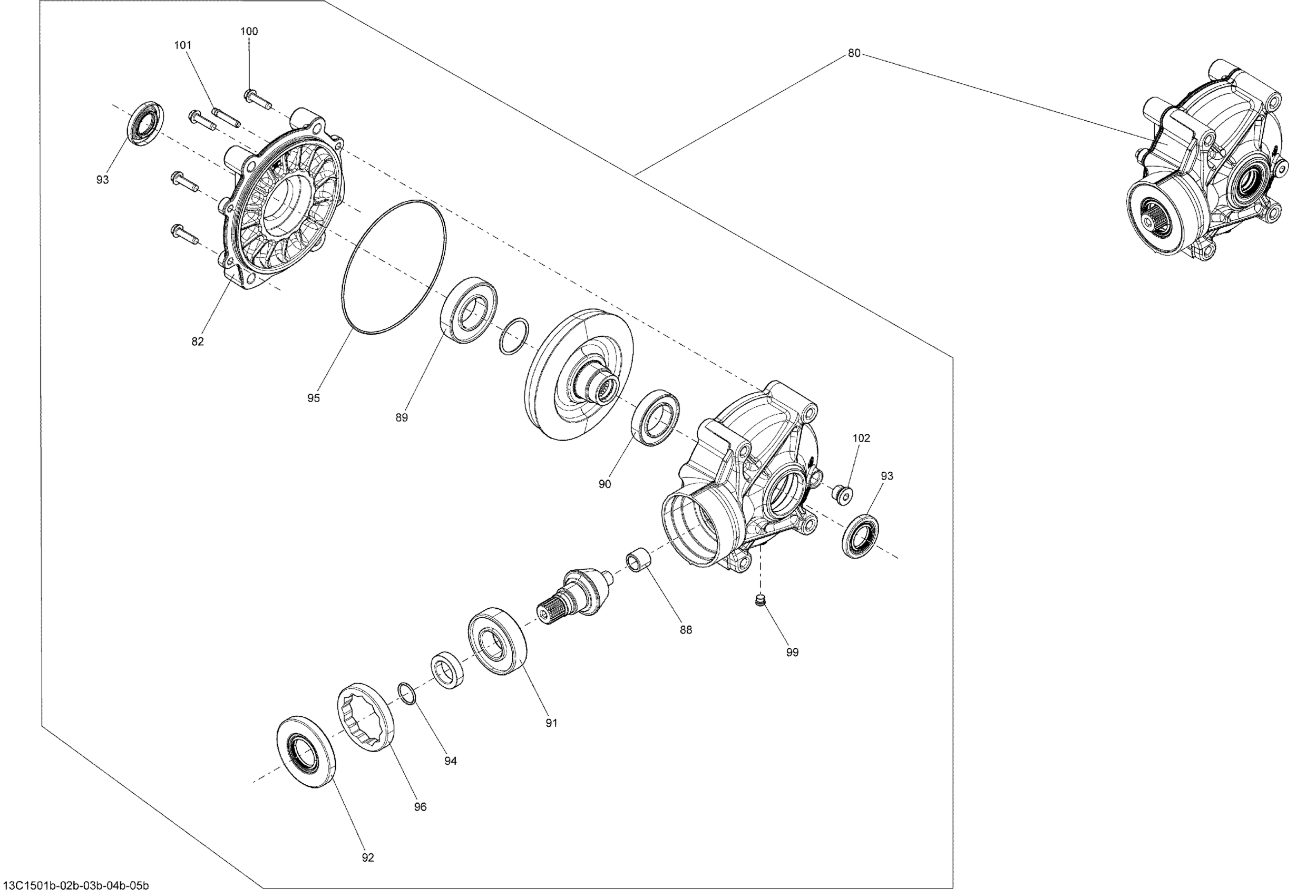

Can-Am Commander MAX 1000_LTD, 2015 Drive System, Rear _Differential_13C1505b Diagram

#

Description
Price

80

Final Drive Unit | Includes 30 to 30u

705502517

$1,712.66

82

Pinion Cover

705502519

$165.64

88

Needle Bearing

705501874

$66.39

89

Ball Bearing

705501875

$72.36

90

Ball Bearing

705501876

$72.36

91

Ball Bearing

705501877

$72.36

92

Oil Seal

705501878

$34.30

93

Oil Seal

705502110

$18.63

94

Oil Seal

705501880

$14.90

95

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$7.94

96

Nut

705501882

$34.30

99

Drain Plug | After May 30, 2014

705501885

$11.93

100

Bolt

705501886

$6.30

101

Vent Valve

705501887

$13.43

102

Fill Level Plug

705501889

$18.63
