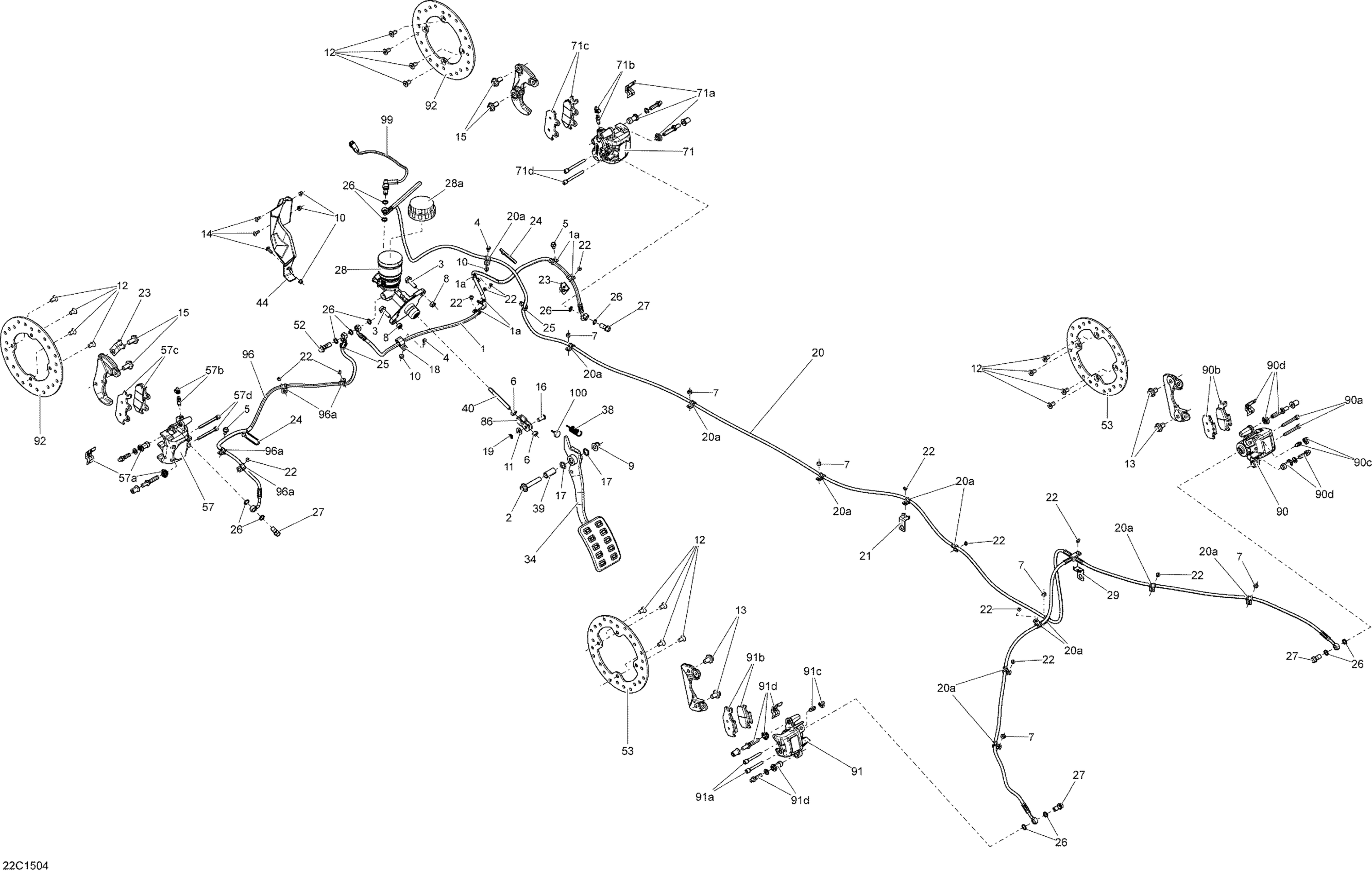

Can-Am Commander MAX 1000_LTD, 2015 Brakes _22C1505 Diagram

#

Description
Price

1

RH Front Flexible Hose Ass'y | Includes 1 to 1a

705601195

$78.43

1a

Clamp

293650256

$4.36

2

Hex. Flange Screw M10 X 55

207605544

$2.78

3

Hex. Flange Screw M8 X 25

207682534

$0.90

4

Hex. Forming Screw M5 X 16

210251650

$0.92

5

Hex. Flange Screw M6 X 10

210261040

$1.25

6

Hex. Nut M8

232081414

$0.60

7

Elastic Stop Nut M6

232561434

$1.55

8

Hex. Elastic Stop Nut M8

232581414

$0.47

9

Hex. Flange Elastic Nut M10

233201414

$1.26

10

Elastic Flange Nut M5

233251494

$1.74

11

Flat Washer M8

234081430

$1.74

12

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

13

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

14

Torx Screw M5 X 14

250000742

$1.20

15

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.72

16

Pin | Not Shown

250400058

$7.12

17

O-Ring

293300144

$3.98

18

Clamp

293650220

$0.85

19

Cotter Pin

371800700

$0.98

20

Rear Flexible Hose Ass'y | Includes 20 to 20a

705601173

$156.89

20a

Clamp

293650256

$4.36

21

Bracket

705601337

$2.69

22

Pop Rivet 3/16"

390402200

$0.26

23

Bracket

705601337

$2.69

24

Tie-Rap 180 mm

414115200

$0.09

25

Tie-Rap 180 mm

414115200

$0.09

26

Copper Washer

705601628

$4.34

27

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

28

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74

28a

Diaphragm Cap Kit

715500332

$27.66

29

Bracket

705601337

$2.69

34

Brake Pedal

705600724

$55.35

38

Brake Pedal Spring

705600792

$9.22

39

Inner Spacer

705600815

$10.98

40

Master Cylinder Rod

705600833

$18.43

44

LH Front Deflector

705600917

$7.60

52

Banjo Bolt

705600958

$7.60

53

Disc Brake

705600999

$85.49

57

LH Caliper Ass'y | Includes 57 to 57d

705601128

$286.89

57a

Spring And Bolt Kit

715500385

$23.05

57b

Bleeding Screw

705600080

$15.22

57c

LH Brake Pad Kit

705601149

$49.39

57d

Hanger Pin Kit

705601151

$17.66

71

RH Caliper Ass'y | Includes 71 to 71d

705601129

$286.89

71a

Spring And Bolt Kit

715500385

$23.05

71b

Bleeding Screw

705600080

$15.22

71c

RH Brake Pad Kit

705601150

$49.39

71d

Hanger Pin Kit

705601151

$17.66

86

Yoke | Not Shown

705601142

$14.75

90

RH Rear Caliper Ass'y | Includes 90 to 90d

705601174

$210.74

90a

Pin Set (2)

705600081

$19.20

90b

RH Brake Pad Kit

705601147

$49.39

90c

Bleeding Screw

705600080

$15.22

90d

Spring, Protector And Bolt Kit

715500384

$23.05

91

LH Rear Caliper Ass'y | Includes 91 to 91d

705601175

$210.74

91a

Pin Set (2)

705600081

$19.20

91b

LH Brake Pad Kit

705600398

$49.39

91c

Bleeding Screw

705600080

$15.22

91d

Spring, Protector And Bolt Kit

715500384

$23.05

92

Disc Brake

705601178

$103.82

96

LH Front Hose | Includes 96 to 96a

705601194

$78.43

96a

Clamp

293650256

$4.36

99

Brake Switch

705601250

$59.97

100

Rubber Stopper

708000759

$3.61
