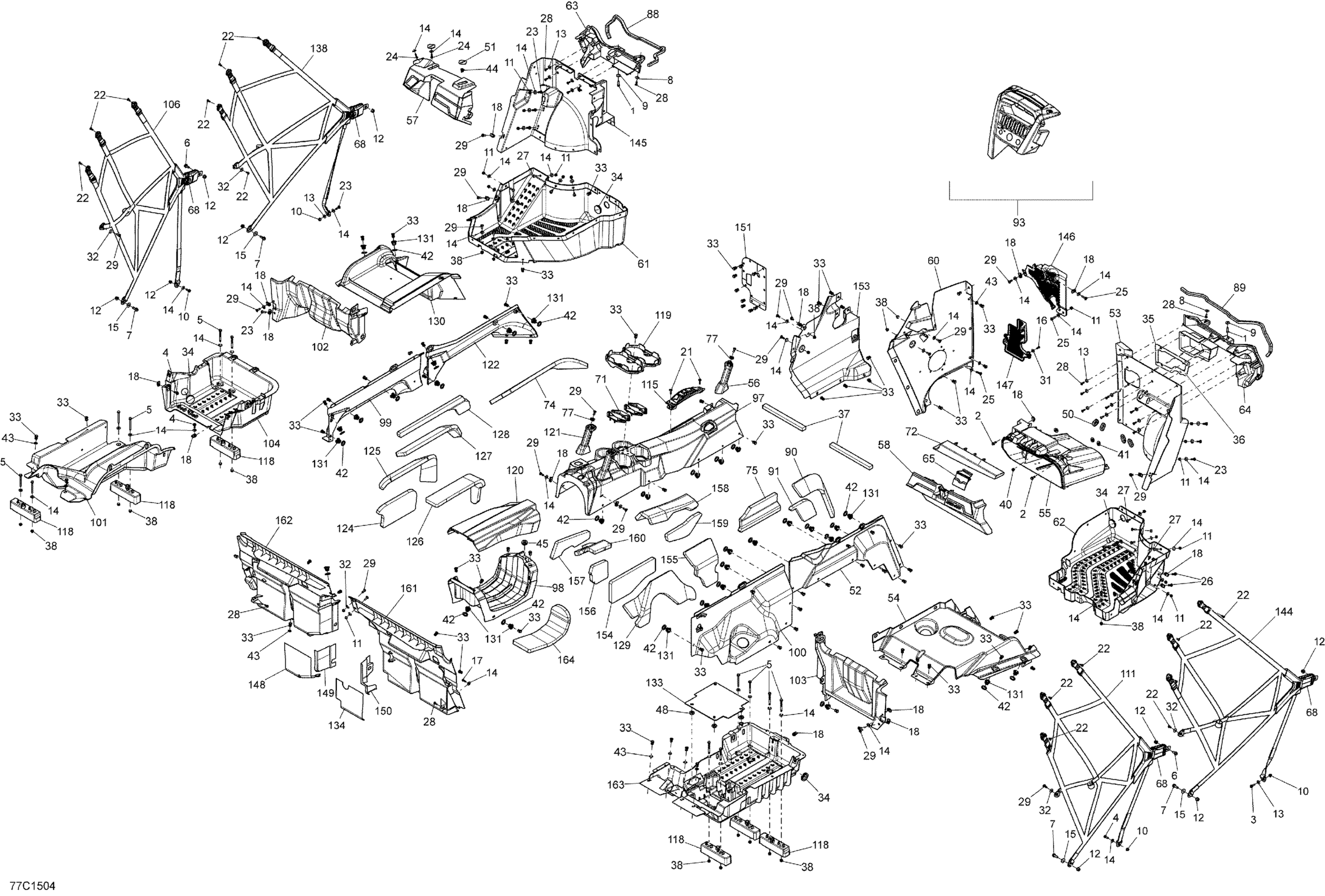

Can-Am Commander MAX 1000_DPS_XT, 2015 Cab Interior _77C1504 Diagram

#

Description
Price

1

Hex. Screw M6 X 25

207162544

$1.05

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M6 X 20

207662054

$0.83

5

Hex. Flange Screw M6 X 70

207667056

$3.61

7

Hex. Flange Screw M8 X 25

207682534

$0.90

8

Flat Washer

224060201

$1.15

9

Flat Washer

224061201

$1.11

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Flange Elastic Nut M6

233261494

$1.26

12

Hex. Flange Elastic Nut M8

233281414

$1.14

13

Flat Washer 6 mm

234062410

$0.64

14

Stainless Steel Flat Washer

234062670

$1.74

15

Flat Washer 8 mm

234082410

$1.11

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

17

Hex. Flange Screw K50 X 20

241152060

$1.57

18

Panel Nut M6 X 1.0

250100198

$1.73

21

Torx Screw M6 X 25 | XT Models

250000728

$3.61

22

Torx Screw M5 X 14

250000742

$1.20

23

Torx Screw M6 x 25

250000284

$1.74

24

Truss Head Torx Screw K50 X 20

250000297

$2.06

25

Torx Truss Screw M6 X 30

250000843

$1.74

26

Torx Truss Screw M6 X 25

250000807

$1.74

26

Torx Truss Screw M6 X 25

250000807

$1.74

27

Torx Screw M6 X 20

250000712

$1.74

28

Torx Screw K50 X 16

250000720

$1.39

29

Torx Screw M6 X 20

250000722

$1.34

31

Washer M5

250200025

$0.61

32

Flat Washer

250200040

$1.82

33

Tuflok Plastic Rivet

293150230

$1.21

34

Rubber Cover

293250242

$5.38

35

Upper Seal

293250252

$2.75

36

Bottom Seal

293250253

$2.99

37

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

38

Threaded Insert M6 X 1.0

250100242

Unavailable

40

Rubber Bumper

293830005

$5.33

41

CAP - Call your local BRP dealership

414859400

Unavailable

42

Washer

503189273

$3.20

43

Washer

506151252

$3.11

44

Edge Clip

517302785

$0.70

45

Grommet

517303756

$3.15

48

Grommet

705003264

$3.43

50

Oblong Grommet

705003668

$4.54

51

Support Plate

705003841

$0.91

52

RH Side Console

707900002

$36.89

53

RH Front Floor

707900004

$78.43

54

RH Under Seat Plate

707900006

$106.12

55

Storage Bin

707900009

$110.74

55

Storage Bin | XT

707900046

$96.89

56

Passenger Handle

707900011

$12.91

57

Dashboard Ass'y

715001250

$78.43

58

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

60

RH Fixe Side Console

707900021

$73.82

61

LH Lower Floor

707900022

$253.82

62

RH Lower Floor

707900023

$184.58

63

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$11.98

64

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

65

Latch

707900031

$8.29

68

Buckle

707900035

$50.74

71

Cup Retainer

707900036

$6.45

72

Trim Glove Box

707900062

$17.66

74

LH Lower Lateral Console Foam

707900621

$20.74

75

RH Lateral Console Foam

707900622

$15.35

77

Connector Tube

707900048

$6.45

88

Was 293200017 Neoprene Seal

219704365

$118.27

89

Was 293200017 Neoprene Seal

219704365

$118.27

90

RH Lateral Console Foam

707900623

$15.35

91

RH Lateral Console Foam

707900624

$15.35

93

Central Dashboard Ass'y

715002178

$36.89

97

CENTRAL CONSOLE KIT - Call your local BRP dealership

715002914

Unavailable

98

Rear Central Console

707900075

$46.12

99

LH REAR CONSOLE PANEL - Call your local BRP dealership

707900298

Unavailable

100

RH Rear Console Panel

707900080

$59.20

101

LH REAR BOTTOM PAN - Call your local BRP dealership

707900081

Unavailable

102

LH Rear Upper Floor Cover

707900082

$50.74

103

Seat Cover

707900083

$46.12

104

LH MID FLOOR - Call your local BRP dealership

707900084

Unavailable

106

Rear LH Safety Net | Upper Link 707900049

707900239

$212.28

111

Rear RH Safety Net | Upper Link 707900049

707900240

$212.28

115

Shift Lever Indicator

707900088

$14.75

118

Support Plate

707900099

$15.35

119

Cup Holder

707900100

$16.89

120

Rear Console Cover Kit

707900229

Unavailable

121

Handle

707900103

$14.75

122

LH Side Console

707900001

$41.51

124

INSULATION_ACOUSTIC - Call your local BRP dealership

707900116

Unavailable

125

INSULATION_ACOUSTIC - Call your local BRP dealership

707900117

Unavailable

126

INSULATION_ACOUSTIC - Call your local BRP dealership

707900118

Unavailable

127

INSULATION_ACOUSTIC - Call your local BRP dealership

707900119

Unavailable

128

LH Rear Lateral Foam

707900626

$15.35

129

INSULATION_ACOUSTIC - Call your local BRP dealership

707900121

Unavailable

130

Under Seat Cover

707900130

$78.43

131

Insert

707900133

$2.75

133

Battery Cover

707900163

$17.66

134

Heat Shield

707900167

$8.45

138

Front LH Safety Net

707900237

$124.58

144

Front RH Safety Net

707900238

$124.58

145

LH Front Upper Floor

707900175

$78.43

146

Grille

707900178

$9.18

147

Grille

707900180

$9.18

148

Heat Shield

707900182

$8.98

149

Heat Shield

707900183

$5.52

150

Heat Shield

707900184

$5.52

151

Deflector

707900192

$16.89

153

Front Side Dash Panel

707900193

$69.20

154

INSULATION_ACOUSTIC - Call your local BRP dealership

707900205

Unavailable

155

RH Rear Lateral Foam

707900627

$14.37

156

INSULATION_ACOUSTIC - Call your local BRP dealership

707900209

Unavailable

157

Front Central Foam

707900628

$10.14

158

Front Central Foam

707900629

$15.22

159

Front Central Foam

707900630

$10.14

160

INSULATION_ACOUSTIC - Call your local BRP dealership

707900213

Unavailable

161

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

162

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

163

RH Lower Rear Floor

707900670

$184.58

164

INSULATION_ACOUSTIC - Call your local BRP dealership

707900307

Unavailable
