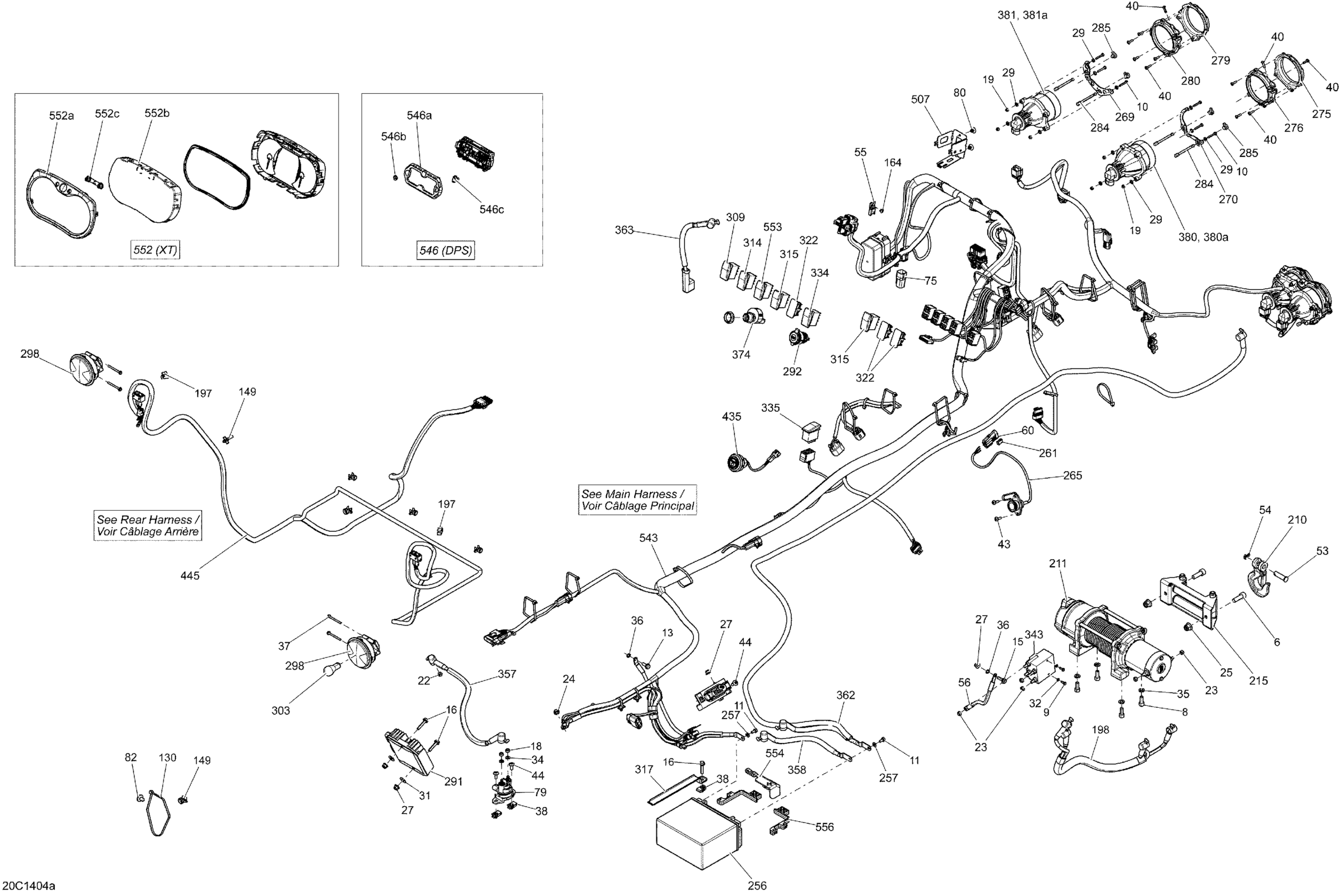

Can-Am Commander MAX 1000_DPS, XT, 2014 Electrical System _20C1404 Diagram

Socket Screw M10 x 30 | XT

205003044

$2.61

Socket Head Screw M8 X 20

205082044

$1.09

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

Hex. Screw M4 X 25

207142544

$1.63

Hex. Cap Screw M6 X 12

207161260

$1.25

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Nut M6

232061600

$0.91

Elastic Stop Nut M4

232541414

$0.48

Elastic Stop Nut M6

232561434

$1.55

Elastic Stop Nut M6

232561434

$1.55

Hex. Flange Nut M6

233061414

$1.34

Hex. Flange Elastic Nut M10

233201414

$1.26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer M5

234051410

$0.44

Flat Washer 6 mm

234062410

$0.64

Lock Washer 4 mm

234141601

$1.09

Lock Washer Helical M6

234161601

$0.92

Lock Washer 8 mm

234181401

$0.89

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Screw K50 X 45

241154540

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Phillips Screw K40 X 16

250000723

$0.81

Torx Screw K50 X 16

250000720

$1.39

Torx Screw M6 X 16

250000223

$1.74

Clevis Pin

250400021

$11.83

Cotter Pin

250400022

$8.66

Clip

270000141

$8.33

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

Diagnostic Connector

278002704

$15.57

Starter Relay

278003012

$35.07

Pop Rivet 3/16"

293150103

$0.54

Mount Dart

293730040

$0.86

Mount Dart

293730040

$0.86

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie-Rap 173 mm

293750009

$0.85

Pop Rivet 3/16"

390402400

$0.25

Clip

414227300

$1.45

Electrical Winch Cable | XT

710004387

$46.12

Winch Hook Kit

705014949

$27.66

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Flat Washer 6 mm

234062410

$0.64

Clip

710000992

$4.00

Winch Connector

710001023

$50.74

LH High Light Support

710001036

$5.52

RH High Light Support

710001115

$5.52

LH Low Light Support

710001037

$9.22

RH Low Light Support

710001094

$9.22

RH Low Front Housing

710001081

$16.89

LH Low Front Housing

710001083

$16.89

RH Low Rear Housing

710001082

$10.98

LH Low Rear Housing

710001084

$10.98

RH High Front Housing

710001085

$16.89

LH High Front Housing

710001087

$16.89

RH High Rear Housing

710001086

$10.98

LH High Rear Housing

710001088

$10.98

Setting Screw

710001147

$12.91

Setting Screw

710001147

$12.91

Voltage Regulator | XT, XTP, LTD

710001191

$193.82

DC Outlet

710001248

$31.17

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

Hi/Low Switch | Except Europe

710001725

$23.74

4X4 Switch

710001737

$32.28

Switch DPS

710001781

$23.74

Battery Holder

710001916

$19.20

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch Winch

710002052

$28.92

Switch, Over ride

710002053

$19.27

Solenoid Kit | XT

715007084

$219.97

Positive Cable

710004390

$36.89

Positive Cable | Model-DPS

710004393

$36.89

CABLE NEG POS - Call your local BRP dealership | Model-XT

710004394

Unavailable

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

Ignition Switch

710008400

$78.43

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

Halogen Bulb

415129249

$39.97

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

Halogen Bulb

415129249

$39.97

Engine Start Button

710002594

$59.97

Rear Harness | Except Europe

710003219

$152.28

Fuse Holder

710003335

$9.29

Cablage Ass. *Harness-Assy.

710004333

$969.20

Speedometer

710005087

$373.82

Trim Ring Ass'y

710001183

$18.43

BRP Logo13 mm

704904615

$9.66

Button

715900265

$12.68

Speedometer Ass'y | Model-XT

710005116

$415.35

Gauge Ring

415129348

$11.71

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

Switch PPS Sport

710003541

$18.43

Cap

710003582

$10.14

Battery Rubber Pad

710003602

$11.98
