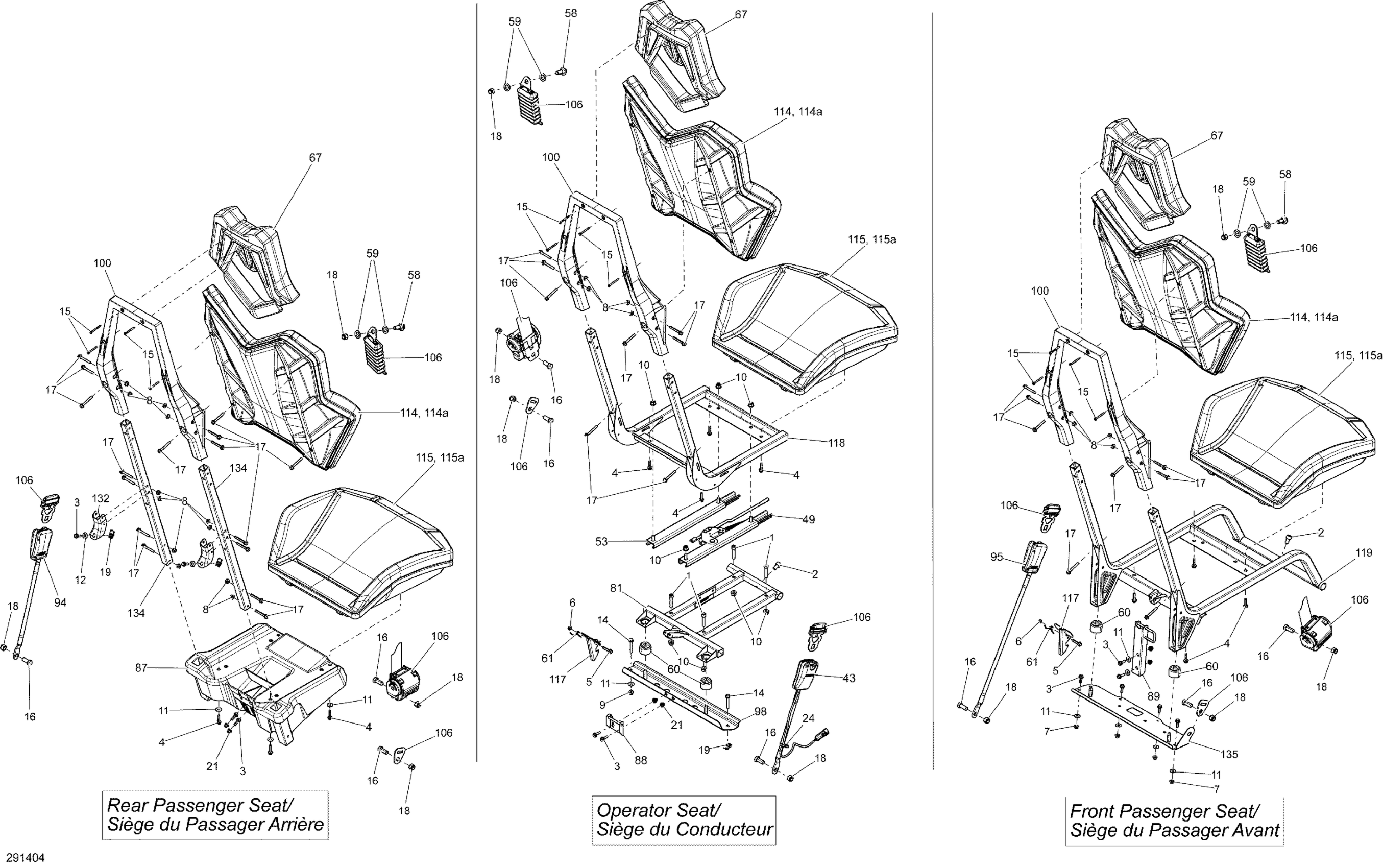

Can-Am Commander MAX 1000_DPS, XT, 2014 Seat _29C1404 Diagram

#

Description
Price

1

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

2

Socket Screw M10 X 16

205501644

$3.38

3

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

4

Hex. Flange Screw M6 X 25

207562544

$1.39

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

Hex. Flange Nut M6

233061414

$1.34

8

Hex. Elastic Flange Nut M6

233161464

$0.83

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Stainless Steel Flat Washer

234062670

$1.74

12

Conical Spring Washer M8

234281474

$1.25

14

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.06

15

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

16

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

17

Hex. Flange Screw M6

250000672

$1.74

18

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

19

Not Available As Spare Part - Friction Washer

Unavailable

21

Threaded Insert M6 X 1.0

250100242

Unavailable

24

Tie Wrap 368 mm

293750008

$0.85

43

Driver Buckle Side

708002061

$69.20

49

RH RAIL - Call your local BRP dealership

708000846

Unavailable

53

LH Rail

708000848

$50.74

58

Safety Belt Screw

708000890

$3.68

59

Position Washer

708000891

$1.15

60

Rubber Bumper

708001671

$2.31

61

Spring

708000921

$1.15

67

Head Rest

708001074

$96.89

81

Seat Member

708001174

$78.43

87

Seat Support

708001198

$64.58

88

Anchor

708001212

$18.43

89

Anchor

708001213

$23.05

94

Rear Passenger Buckle Side

708002063

$64.58

95

Passenger Buckle Side

708001206

$64.58

98

Seat Support

708001214

$64.58

100

Seat Support

708001245

$27.66

106

Safety Belt

708001302

$272.28

114

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

114a

Backrest Cover

708000675

$92.28

115

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

115a

Seat Cover

708001103

$110.74

117

Seat Latch

708001355

$2.75

118

Operator Seat Frame

708001356

$313.82

119

Passenger Seat Frame

708001357

$304.58

132

Rear Anchor

708001474

$18.43

134

Side Tube

708001476

$32.28

135

BLACK FRONT PASS. SEAT SUPPORT - Call your local BRP dealership

708001538

Unavailable
