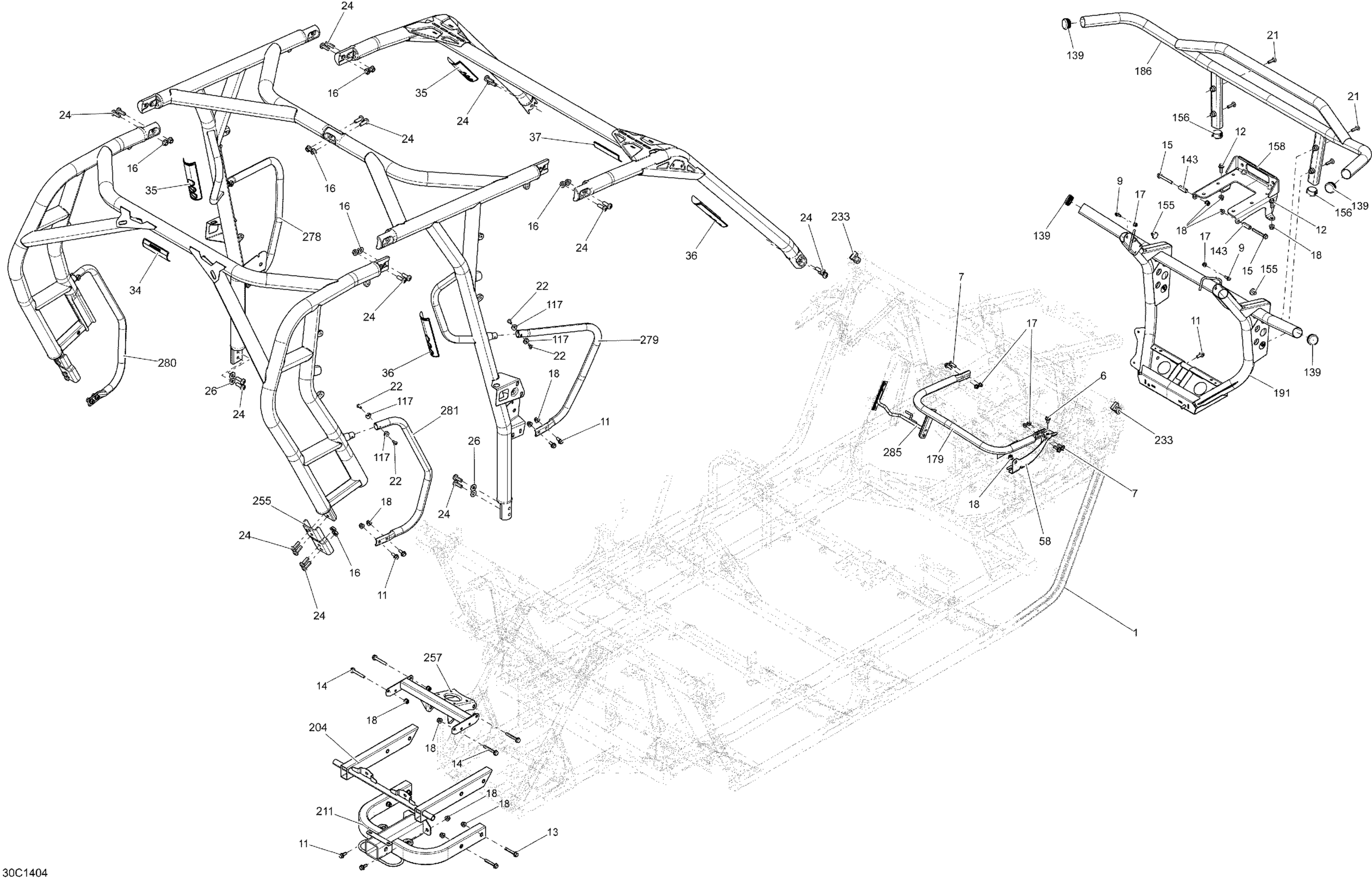

Can-Am Commander MAX 1000_DPS, XT, 2014 Frame _30C1404 Diagram

#

Description
Price

1

FRAME-BLACK - Call your local BRP dealership

703501012

Unavailable

6

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

7

Hex. Flange Screw M6 X 20

207662044

$1.66

9

Hex. Flange Screw M6 X 16

207661644

$0.61

11

Hex. Flange Screw M8 X 20

207682044

$0.92

12

Hex. Flange Screw M8 X 25

207682534

$0.90

13

Hex. Flange Screw M8 X 50

207685044

$1.39

14

Hex. Flange Screw M8 X 55

207685544

$4.41

15

Hex. Flange Screw M8 x 60

207686044

$2.56

16

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Hex. Flange Elastic Nut M8

233281414

$1.14

21

Hex Torx Truss M8 X30

250000745

$3.05

22

Torx Truss M6X14

250000789

$4.41

24

Screw Pan M10 X 30

250000848

$1.56

26

Washer

250200154

$3.58

28

Threaded Insert M6 X 1.0

250100242

Unavailable

34

Warning Label

704903492

Unavailable

35

Warning Label

704903679

Unavailable

36

Warning Label

704903680

Unavailable

58

Front Differential Support

705201721

$18.43

117

Offset Washer

705202223

$4.98

139

Cap

705202455

$4.62

143

Bushing

705202499

$6.45

158

Winch Plate | XT

715000704

$129.97

179

Black Handle

705203332

$129.20

185

Black Front Bumper | XT, X

715000958

$308.74

190

Black Front Bumper

705202995

$394.24

204

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

211

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

233

Binding Block

705203415

$16.89

255

Rear Hand Mounting

705203514

$18.43

257

Differential Holder

705203538

$35.35

260

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

278

Black LH Front Side Protector Tube

705203643

$46.12

279

Black RH Front Side Protector Tube

705203642

$46.12

280

Black LH Rear Side Protector Tube

705203649

$46.12

281

Black RH Rear Side Protector Tube

705203652

$46.12

285

Reinforcement Panel

705203717

$147.66

296

Black Central Cage Kit

715003902

$779.99
