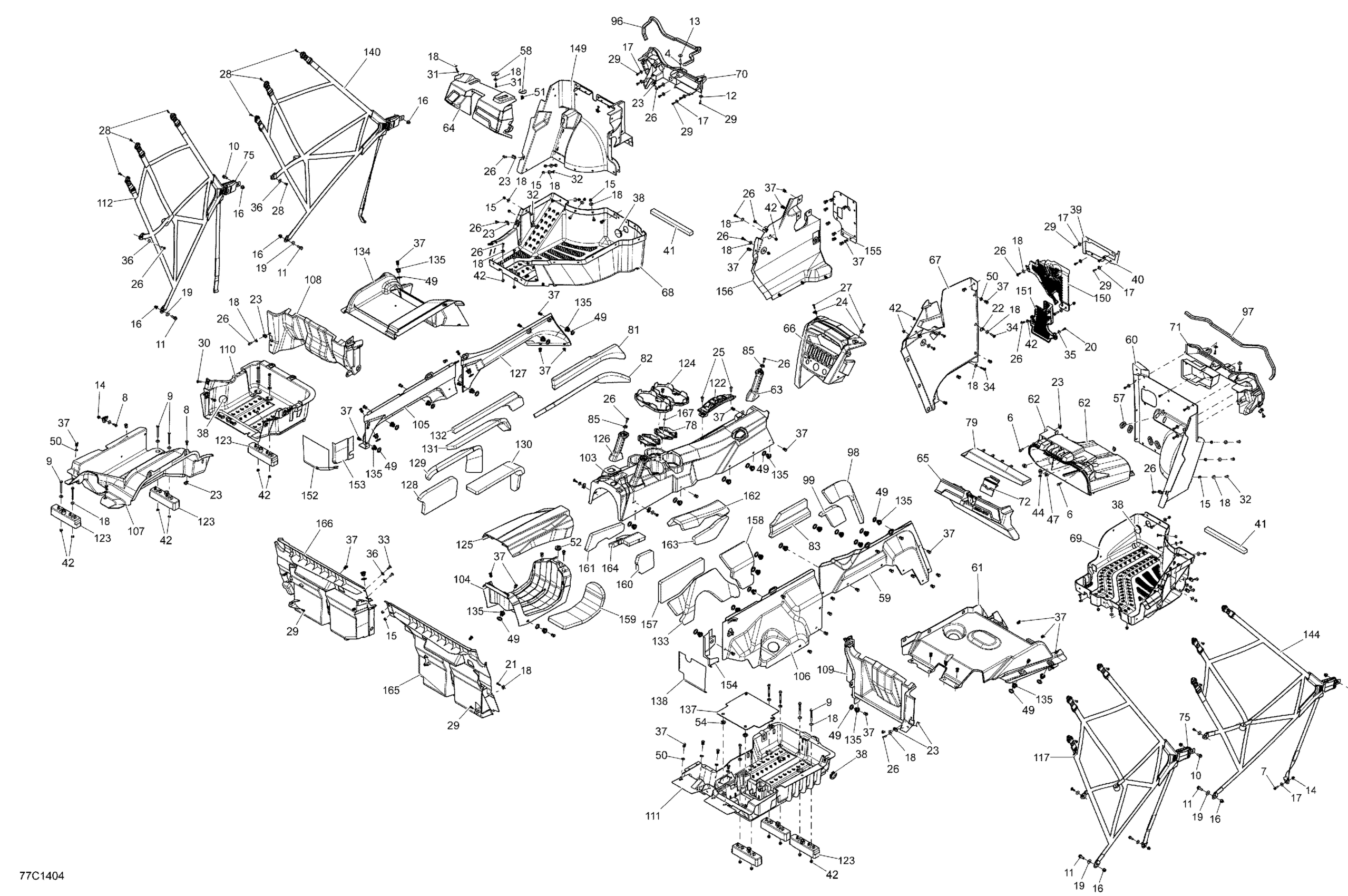

Can-Am Commander MAX 1000_DPS, XT, 2014 Cab Interior _77C1404 Diagram

Hex. Screw M6 X 25

207162544

$1.05

Hex. Flange Screw M6 X 20

207662034

$1.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Screw M6 X 20

207662084

$0.83

Hex. Flange Screw M6 X 70

207667056

$3.61

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25

207682534

$0.90

Flat Washer

224060201

$1.15

Flat Washer

224061201

$1.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Elastic Nut M6

233261494

$1.26

Hex. Flange Elastic Nut M8

233281414

$1.14

Flat Washer 6 mm

234062410

$0.64

Stainless Steel Flat Washer

234062670

$1.74

Flat Washer 8 mm

234082410

$1.11

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

Hex. Flange Screw K50 X 20

241152060

$1.57

Panel Nut M6 X 1.0

250100198

$1.73

Panel Nut M6 X 1.0

250100198

$1.73

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M6 X 25 | XT Models

250000728

$3.61

Torx Screw M6 X 20

250000722

$1.34

Torx Screw M5 X 20

250000724

$1.39

Torx Screw M5 X 14

250000742

$1.20

Torx Screw K50 X 16

250000720

$1.39

Torx Screw M6 x 25

250000284

$1.74

Truss Head Torx Screw K50 X 20

250000297

$2.06

Hex. Socket Screw M6 X 20

250000770

$1.63

Torx Truss Screw M6 X 20

250000350

$4.39

Torx Truss Screw M6 X 30

250000843

$1.74

Washer M5

250200025

$0.61

Flat Washer

250200040

$1.82

Tuflok Plastic Rivet

293150230

$1.21

Rubber Cover

293250242

$5.38

Upper Seal

293250252

$2.75

Bottom Seal

293250253

$2.99

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Bumper

293830005

$5.33

CAP - Call your local BRP dealership

414859400

Unavailable

Washer

503189273

$3.20

Washer

506151252

$3.11

Edge Clip

517302785

$0.70

Grommet

517303756

$3.15

Grommet

705003264

$3.43

Oblong Grommet

705003668

$4.54

Support Plate

705003841

$0.91

RH Side Console

707900002

$36.89

RH Front Floor

707900004

$78.43

RH Under Seat Plate

707900006

$106.12

Storage Bin

707900009

$110.74

Storage Bin | XT

707900046

$96.89

Passenger Handle

707900011

$12.91

Dashboard Ass'y

715001250

$78.43

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

Central Dashboard Ass'y

715002178

$36.89

RH Fixe Side Console

707900021

$73.82

LH Lower Floor

707900022

$253.82

RH Lower Floor

707900023

$184.58

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$11.98

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

Latch

707900031

$8.29

Buckle

707900035

$50.74

Buckle

707900035

$50.74

Cup Retainer

707900036

$6.45

Trim Glove Box

707900062

$17.66

Left Upper Lateral Console Foam

707900620

$15.35

LH Lower Lateral Console Foam

707900621

$20.74

RH Lateral Console Foam

707900622

$15.35

Connector Tube

707900048

$6.45

Connector Tube

707900048

$6.45

Was 293200017 Neoprene Seal

219704365

$118.27

Was 293200017 Neoprene Seal

219704365

$118.27

RH Lateral Console Foam

707900623

$15.35

RH Lateral Console Foam

707900624

$15.35

CENTRAL CONSOLE KIT - Call your local BRP dealership

715002914

Unavailable

Rear Central Console

707900075

$46.12

LH REAR CONSOLE PANEL - Call your local BRP dealership

707900298

Unavailable

RH Rear Console Panel

707900080

$59.20

LH REAR BOTTOM PAN - Call your local BRP dealership

707900081

Unavailable

LH Rear Upper Floor Cover

707900082

$50.74

Seat Cover

707900083

$46.12

LH MID FLOOR - Call your local BRP dealership

707900084

Unavailable

RH Lower Rear Floor

707900670

$184.58

Rear LH Safety Net | Upper Link 707900049

707900239

$212.28

Rear RH Safety Net | Upper Link 707900049

707900240

$212.28

Shift Lever Indicator

707900088

$14.75

Support Plate

707900099

$15.35

Support Plate

707900099

$15.35

Cup Holder

707900100

$16.89

Rear Console Cover Kit

707900229

Unavailable

Handle

707900103

$14.75

LH Side Console

707900001

$41.51

INSULATION_ACOUSTIC - Call your local BRP dealership

707900116

Unavailable

INSULATION_ACOUSTIC - Call your local BRP dealership

707900117

Unavailable

INSULATION_ACOUSTIC - Call your local BRP dealership

707900118

Unavailable

INSULATION_ACOUSTIC - Call your local BRP dealership

707900119

Unavailable

LH Rear Lateral Foam

707900626

$15.35

INSULATION_ACOUSTIC - Call your local BRP dealership

707900121

Unavailable

Under Seat Cover

707900130

$78.43

Insert

707900133

$2.75

Battery Cover

707900163

$17.66

Heat Shield

707900167

$8.45

Front LH Safety Net

707900237

$124.58

Front RH Safety Net

707900238

$124.58

LH Front Upper Floor

707900175

$78.43

Grille

707900178

$9.18

Grille

707900180

$9.18

Heat Shield

707900182

$8.98

Heat Shield

707900183

$5.52

Heat Shield

707900184

$5.52

Deflector

707900192

$16.89

Front Side Dash Panel

707900193

$69.20

INSULATION_ACOUSTIC - Call your local BRP dealership

707900205

Unavailable

RH Rear Lateral Foam

707900627

$14.37

INSULATION_ACOUSTIC - Call your local BRP dealership

707900307

Unavailable

INSULATION_ACOUSTIC - Call your local BRP dealership

707900209

Unavailable

Front Central Foam

707900628

$10.14

Front Central Foam

707900629

$15.22

Front Central Foam

707900630

$10.14

INSULATION_ACOUSTIC - Call your local BRP dealership

707900213

Unavailable

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

Push Nut

732610072

$1.72
