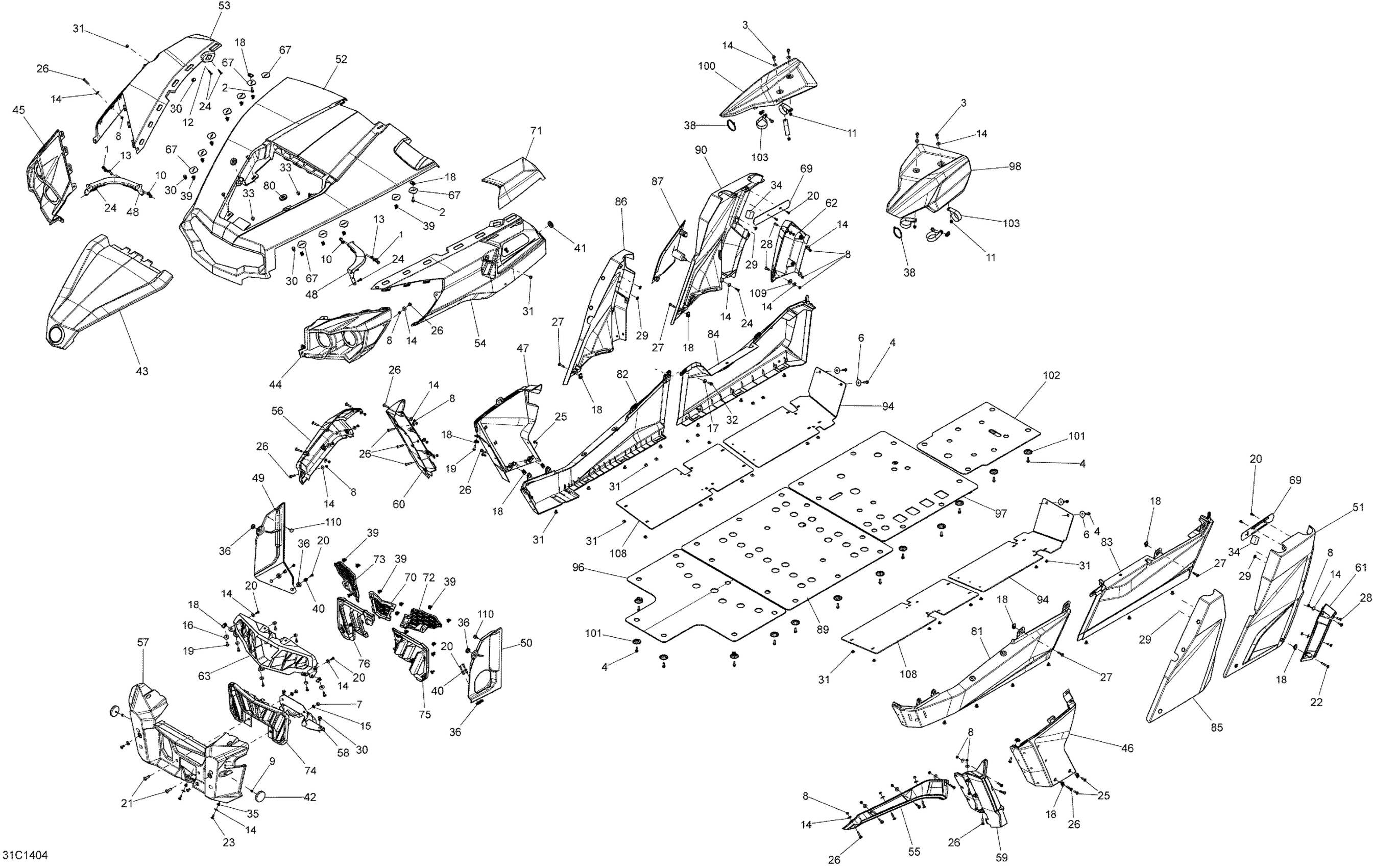

Can-Am Commander MAX 1000_DPS, XT, 2014 Body And Accessories _31C1404 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hex. Flange Screw M6 X 20

207662084

$0.83

4

Hexagonal Head Screw

210262050

$1.74

6

Flat Washer

224081301

$0.86

7

Hex. Nut M8

232081414

$0.60

8

Elastic Stop Nut M6

232561434

$1.55

9

Flange Elastic Nut M5

233251434

$1.66

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Flange Elastic Nut M6

233261494

$1.26

12

Flat Washer M5

234051410

$0.44

13

Stainless Flat Washer M6

234061600

$0.25

14

Stainless Steel Flat Washer

234062670

$1.74

15

Flat Washer 8 mm

234081410

$0.69

16

Flat Washer 8 mm

234082410

$1.11

17

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

18

Panel Nut M6 X 1.0

250100198

$1.73

19

Torx Screw M6 X 20

250000722

$1.34

20

Torx Screw K50 X 16

250000720

$1.39

21

Hex Torx Truss M8 X30

250000745

$3.05

22

Torx Screw M6 X 45

250000215

$1.56

23

Torx Screw M6 X 16

250000755

$0.72

24

Truss Head Torx Screw K50 X 20

250000297

$2.06

25

Torx Truss Screw M6 X 20

250000350

$4.39

26

Stainless, Torx Screw M6 X 30

250000842

$1.74

27

Torx Truss Screw M6 X 30

250000843

$1.74

28

Torx Truss Screw M6 X 20

250000488

$1.74

29

Oval Washer

705005156

$4.85

30

Tuflok Plastic Rivet

293150230

$1.21

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

32

Washer M5

250200025

$0.61

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

34

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

35

Threaded Insert M6 X 1.0

250100242

Unavailable

36

Grommet

709000582

$4.38

38

Tie Wrap 368 mm

293750008

$0.85

39

Edge Clip

517302785

$0.70

40

Knob

517303439

$3.73

41

Grommet

517303756

$3.15

42

Amber Reflector | Except Europe Model

705011222

$12.32

43

YELLOW REMOVABLE HOOD - Call your local BRP dealership | Yellow Models

705007072

Unavailable

43

HOOD B-005 - Call your local BRP dealership | Camo Models

705007075

Unavailable

43

MAGNESIUM REMOVABLE HOOD - Call your local BRP dealership

705007076

Unavailable

44

LH Front Facia

705002885

$69.20

45

RH Front Facia

705002886

$69.20

46

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

46

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

46

PANEL_BODY FL B-005 - Call your local BRP dealership | Camo Models

705006378

Unavailable

46

LEFT PANEL - Call your local BRP dealership

705009306

Unavailable

47

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

47

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

47

PANEL_BODY FR B-005 - Call your local BRP dealership | Camo Models

705006379

Unavailable

47

MAGNESIUM RH FRONT LATERAL PANNEL - Call your local BRP dealership

705006383

Unavailable

48

Facia Front Support

705002891

$36.89

49

RH Deflector

705002894

$18.43

50

LH Deflector | Except XT Models

705002895

$18.43

50

LH Deflector | XT

705005113

$15.35

51

YELLOW LH REAR LATERAL PANEL - Call your local BRP dealership | Yellow Models

705007864

Unavailable

51

YELLOW LH REAR LATERAL PANEL - Call your local BRP dealership | Yellow Models

705007864

Unavailable

51

PANEL_BODY REAR L B-005 - Call your local BRP dealership | Camo Models

705006122

Unavailable

51

MAGNESIUM LH REAR LATERAL PANNEL - Call your local BRP dealership

705006126

Unavailable

52

HOOD B-190 - Call your local BRP dealership | Yellow Models, Black Models

705008187

Unavailable

52

HOOD B-005 - Call your local BRP dealership | Camo Models

705004380

Unavailable

52

HOOD - Call your local BRP dealership

705009304

Unavailable

53

YELLOW RH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008195

Unavailable

53

YELLOW RH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008195

Unavailable

53

FENDER FR B-005 - Call your local BRP dealership | Camo Models

705006769

Unavailable

53

FRONT FENDER - Call your local BRP dealership

705009301

Unavailable

54

YELLOW LH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008194

Unavailable

54

YELLOW LH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008194

Unavailable

54

FENDER FL B-005 - Call your local BRP dealership | Camo Models

705006768

Unavailable

54

FRONT FENDER - Call your local BRP dealership

705009299

Unavailable

55

Black, LH Upper Front Mudguard | LTD

705008666

$38.56

56

Black, RH Upper Front Mudguard | LTD

705008667

$38.56

57

Black Front Facia

705008689

$94.58

58

Bottom Deflector | Except XT Models

705003399

$13.69

59

Black, LH Lower Mudguard | LTD

705008668

$38.56

60

Black, RH Lower Mudguard | LTD

705008669

$38.56

61

Black, LH Rear Lower Mudguard | LTD

705008670

$38.56

62

RH Rear Lower Black Mudguard | LTD

705008672

$38.56

63

FASCIA UP B-160 - Call your local BRP dealership

705003629

$19.20

67

Support Plate

705003841

$0.91

69

Support Plate

705004261

$12.17

70

Center Upper Facia Protector

705004336

$4.03

71

Yellow CVT Inlet Cover | Yellow Models

705004337

$14.20

71

CAMO CVT INLET COVER - Call your local BRP dealership | Camo Models

705004382

Unavailable

71

CVT INLET COVE - Call your local BRP dealership

705009302

Unavailable

72

LH Upper Facia Protector

705004350

$4.03

73

RH Upper Facia Protector

705004351

$4.03

74

Lower Front Facia Protector

705004755

$16.89

75

LH Lower Rear Facia Protector

705004819

$16.89

76

RH Lower Rear Facia Protector

705004820

$16.89

80

Oval Washer

705005156

$4.85

81

Black, LH Lower Panel | Model-DPS

705005423

$59.97

81

Black, LH Lower Panel | Model-XT

705007035

$59.97

82

Black, RH Lower Panel | Model-DPS

705005424

$59.97

82

Black, RH Lower Panel | Model-XT

705007036

$59.97

83

Black, LH Rear Lower Panel

705005425

$106.12

84

Black, RH Rear Lower Panel

705005426

$110.74

85

PANEL_CAGE CTRL L B-190 - Call your local BRP dealership | Model-Yellow

705005427

Unavailable

85

CAMO LH CENTER CAGE PANEL - Call your local BRP dealership | Model-Camo

705007022

Unavailable

85

MAGNESIUM LH CENTER CAGE PANEL - Call your local BRP dealership | Model-Magnesium

705007023

Unavailable

86

Yellow RH Center Cage Panel | Model-Yellow

705005428

$69.20

86

CAMO RH CENTER CAGE PANEL - Call your local BRP dealership | Model-Camo

705007024

Unavailable

86

MAGNESIUM RH CENTER CAGE PANEL - Call your local BRP dealership | Model-Magnesium

705007025

Unavailable

87

YELLOW RH PANEL COVER - Call your local BRP dealership | Model-Yellow

705005437

Unavailable

87

CAMO RH PANEL COVER - Call your local BRP dealership | Model-Camo

705007027

Unavailable

87

MAGNESIUM RH PANEL COVER - Call your local BRP dealership | Model-Magnesium

705007028

Unavailable

89

Skid Plate

705009447

$115.35

90

YELLOW RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-DPS

705005948

Unavailable

90

YELLOW RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-XT Yellow

705006874

Unavailable

90

CAMO RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-Camo

705007621

Unavailable

90

MAGNESIUM RH REAR LATERAL PANNEL - Call your local BRP dealership | Model-Magnesium

705007622

Unavailable

94

RH Lateral Skid Plate

705007038

$64.58

96

Middle Protector Plate

705007055

$78.43

97

Rear Protector Plate

705007056

$115.35

98

YELLOW LH TOP CENTER CAGE COVER - Call your local BRP dealership | Model-XT Yellow

705007058

Unavailable

98

Black, LH Top Center Cage Cover | Model-Camo

705008452

$36.89

98

KIT CAGE COVER - Call your local BRP dealership | Model-Magnesium

705008451

Unavailable

100

YELLOW RH TOP CENTER CAGE COVER - Call your local BRP dealership | Model-XT Yellow

705007059

Unavailable

100

Black, RH Top Center Cage Cover | Model-Camo

705008453

$36.89

100

KIT CAGE COVER - Call your local BRP dealership | Model-Magnesium

705008451

Unavailable

101

Cup | Package Hunter

705007171

$6.18

102

Rear Protector Plate

705007227

$32.28

103

"P" Bracket, 2" Dia.

705005626

$25.35

108

Side Protector Plate

705008421

$50.74

109

Hardened Washer

706200281

$2.34

110

Rubber Stopper

708000759

$3.61
