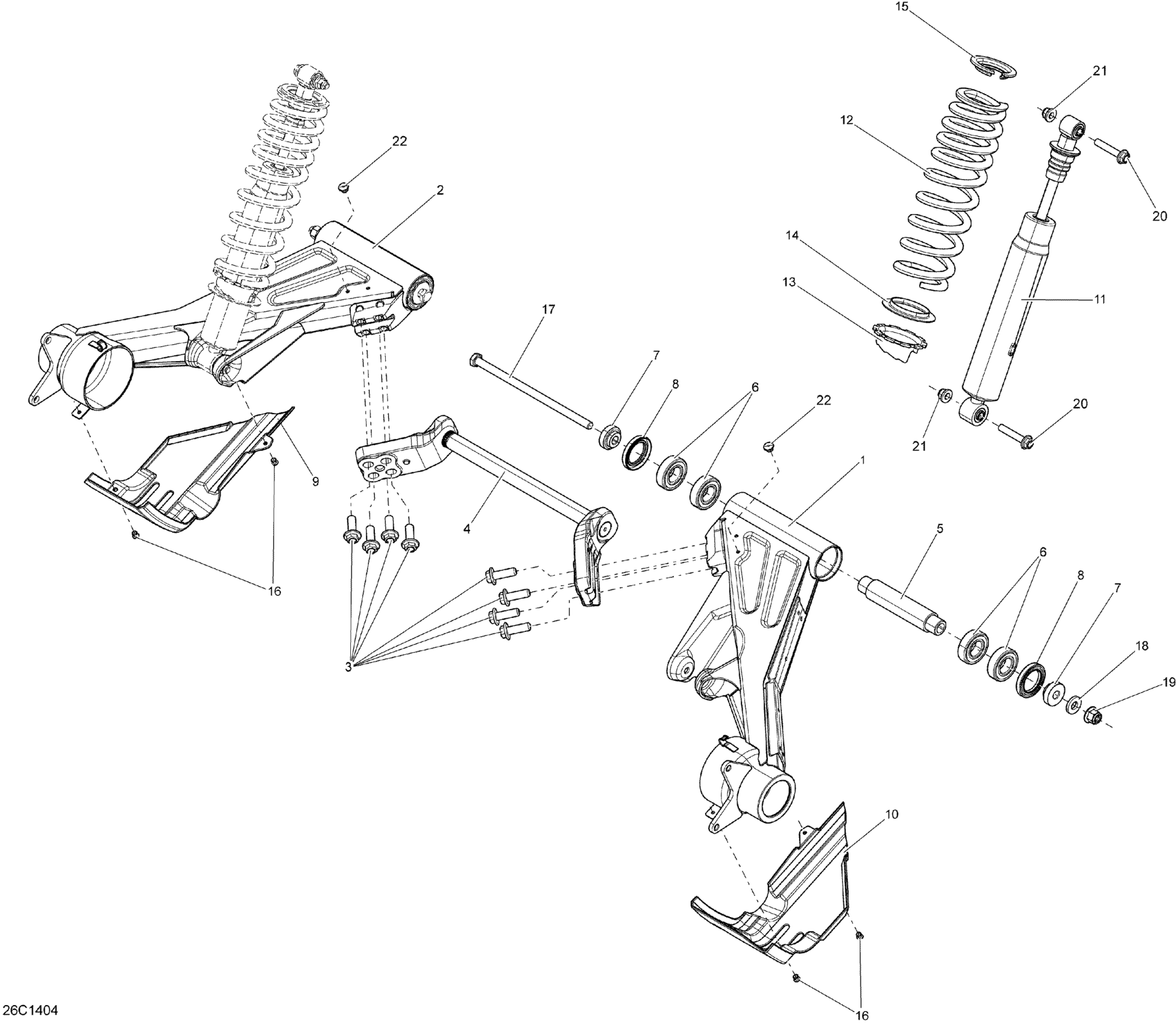

Can-Am Commander MAX 1000_DPS, XT, 2014 Rear Suspension _26C1404 Diagram

#

Description
Price

1

RH Swing Arm

706001513

$184.58

2

LH Swing Arm

706001514

$184.58

3

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.25

4

Sway Bar

706001718

$184.58

5

Bushing

706001529

$32.28

6

Ball Bearing

293350115

$11.15

7

Spacer

706001350

$9.29

8

Seal

293200094

$9.31

9

LH Joint Protector

706000630

$8.45

10

RH Joint Protector

706000814

$8.45

11

Rear Shock

706001509

$194.58

12

YELLOW REAR SPRING - Call your local BRP dealership | Model-DPS Yellow, XT Yellow

706001997

Unavailable

12

BLACK REAR SPRING - Call your local BRP dealership | Model-XT Magnesium, XT Camo

706001998

Unavailable

13

Adjustment Ring

706000910

$14.37

14

Protector Ring | STD, XT

706000911

$7.60

15

Spring Stopper

706000567

$15.35

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

17

Hex. Cap Screw M12 X 241

250001031

$3.16

18

Flat Washer M12

250200120

$2.31

19

Elastic Flange Nut M12

233221416

$2.33

20

Hex. Flange Screw M10 X 55

207605546

$1.74

21

Hex. Flange Elastic Nut M10

233201436

$1.74

22

Pop Rivet 3/16"

390406500

$0.70
