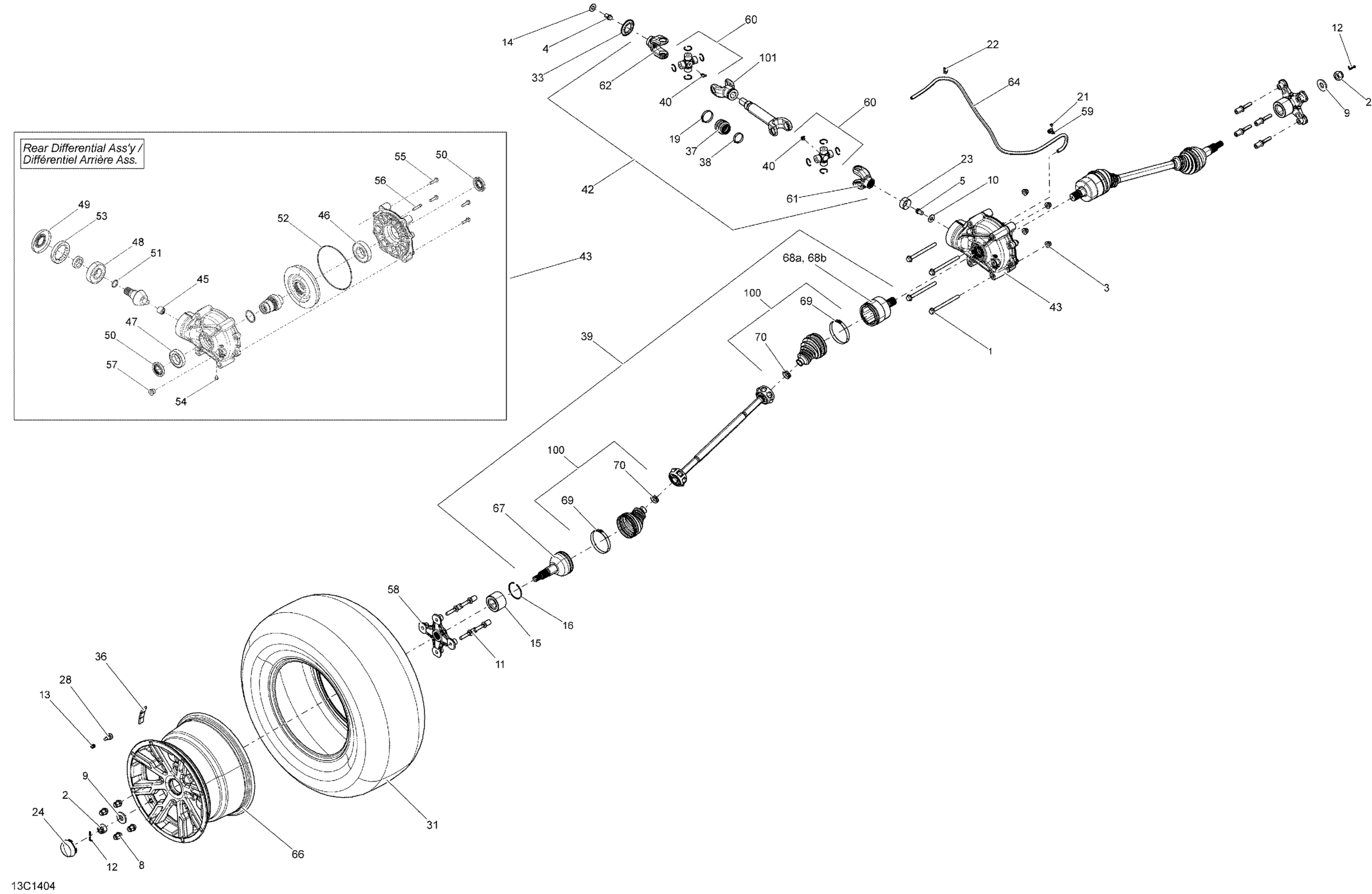

Can-Am Commander MAX 1000_DPS, XT, 2014 Drive System, Rear _13C1404 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$6.08

2

Hex. Flange Castellated Nut M18

232291413

$2.82

3

Hex. Flange Elastic Nut M10

233201436

$1.74

4

Hex Flange Screw M12 X 16

250001039

$1.74

5

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

8

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

8

Black, Wheel Nut M10 X 1.25

250100184

$2.48

8

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

9

Conical Spring Washer M18

250200171

$5.28

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Wheel Stud

250300060

$9.58

12

Cotter Pin

250400036

$1.74

13

Valve Cap

293000110

$1.18

14

Flat Washer M12

250200102

$1.74

15

Ball Bearing

293350150

$51.93

16

Circlip

293370019

$4.98

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

21

Pop Rivet 3/16"

390402200

$0.26

22

Clip

414227300

$1.45

23

Wear Ring | 4X4

705400036

$25.35

24

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

24

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

24

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

28

Rim Valve With Cap

705400193

$6.69

31

27X11R14 Rear Tire

705502665

$244.58

31

27X11R14 Rear Tire

705502665

$244.58

31

27X11R14 Rear Tire

705502665

$244.58

31

Rear Tire | XT Europe

705501295

$248.43

31

27X11R14 Rear Tire

705502665

$244.58

32

Wear Sleeve | 4X4

705501121

$7.28

33

Protector

705501123

$7.37

36

1/2 Oz Weight

219704465

$4.35

37

Rubber Boot

715900118

$13.83

38

Oetiker Gear Clamp 36.1MM

509000045

$3.55

39

Joint Assemble *Half Shaft | Includes 63 to 68

705502359

$232.74

40

Grease Fitting

715900184

$4.62

42

Axle Ass'y

705501803

Unavailable

43

Final Drive Unit | Includes 30 to 30u

705502517

$1,799.97

45

Needle Bearing

705501874

$68.43

46

Ball Bearing

705501875

$74.58

47

Ball Bearing

705501876

$74.58

48

Ball Bearing

705501877

$74.58

49

Oil Seal

705501878

$36.89

50

Oil Seal

705502110

$18.43

51

Oil Seal

705501880

$15.35

52

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

53

Nut

705501882

$36.89

54

Drain Plug | After May 30, 2014

705501885

$12.68

55

Bolt

705501886

$6.75

56

Vent Valve

705501887

$14.37

57

Fill Level Plug

705501889

$18.43

58

Wheel Hub

705501900

$129.20

59

Clamp

293650256

$4.36

60

Universal Joint

715900326

$69.20

61

FIXED YOKE - Call your local BRP dealership

715900233

Unavailable

62

Fixed Joint

715900129

$23.05

64

Polyurethane Hose 10000Mm Long

219704410

$46.12

66

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

66

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

66

Rear Rim | XT Camo

705501814

$199.97

66

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

66

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

67

CV Joint

705501776

Unavailable

68a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

68b

Circlip

705501781

$5.38

69

Oetiker Clamp, 82.1 mm

715900241

$7.84

70

Oetiker Clamp, 27.3 mm

715900242

$7.84

100

Boot Kit

705501864

$41.51

101

Spline Yoke

715900106

$41.51
