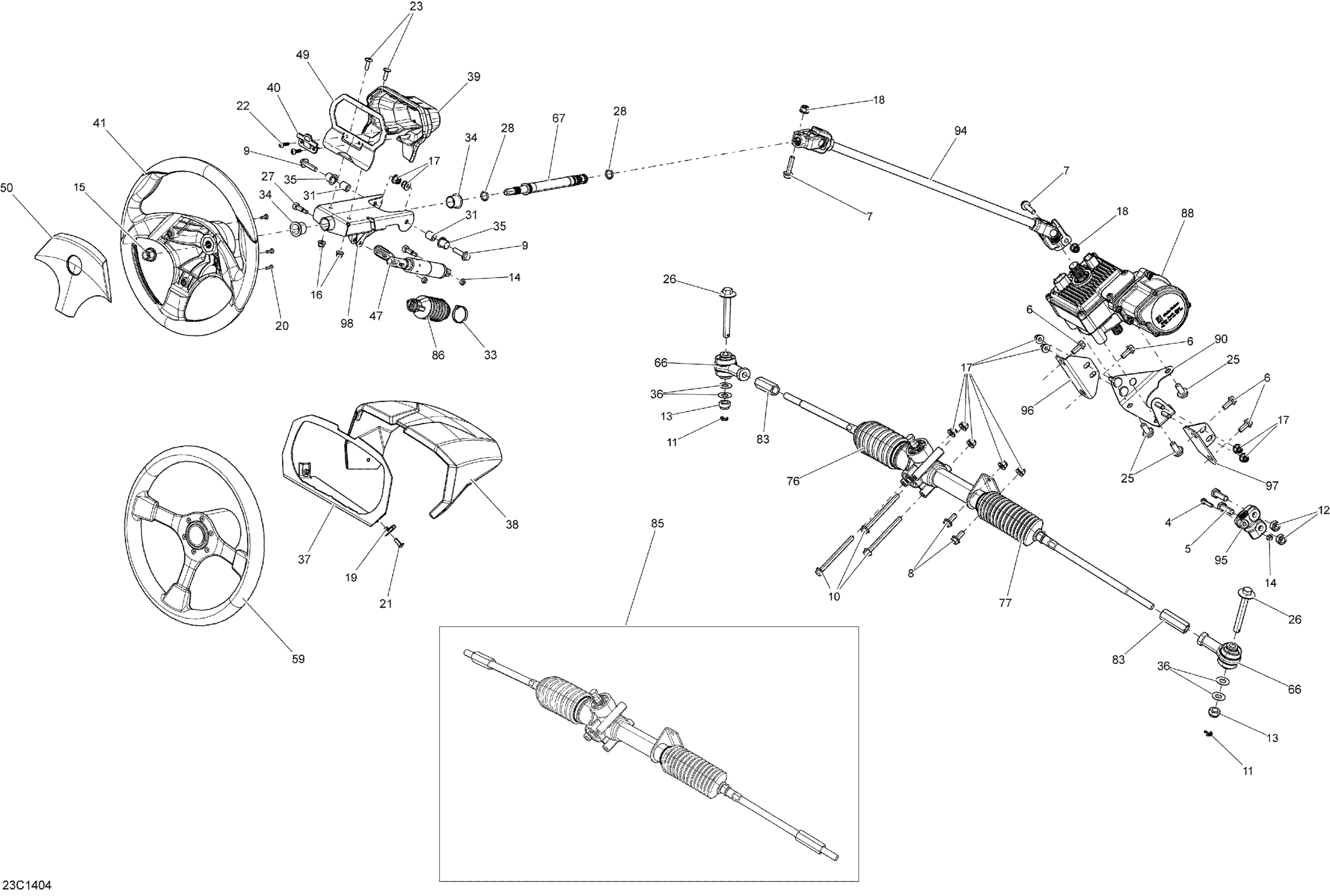

Can-Am Commander MAX 1000_DPS, XT, 2014 Steering _23C1404 Diagram

#

Description
Price

4

Hex. Screw M6 X 30

207063044

$0.98

5

Hex. Screw M10 X 35

207103586

$0.83

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

7

Hex. Flange Screw M8 X 35

250000986

$1.74

8

Hex. Flange Screw M8 X 20

207682044

$0.92

9

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

10

Hex. Flange Screw M8 X 95

207689534

$3.48

11

Cotter Pin

211400017

$0.25

12

Elastic Stop Nut M10

232500416

$1.56

13

Elastic Stop Nut M12

232521416

$1.40

14

Elastic Stop Nut M6

232561434

$1.55

15

Hex. Flange Elastic Nut M12

233221414

$5.10

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Hex. Flange Elastic Nut M8

233281414

$1.14

18

Hex. Elastic Flange Nut M8

233281416

$1.25

19

Panel Nut M6 X 1.0

250100198

$1.73

20

Phillips Screw K40 X 16

250000723

$0.81

21

Torx Truss Screw M6 X 16

250000721

$1.39

22

Truss Head Torx Screw K50 X 20

250000297

$2.06

23

Torx Truss Screw M6 X 20

250000350

$4.39

25

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.72

26

Hexagonal Screw M12 X 88

250000657

$5.19

27

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

28

O-Ring

293300144

$3.98

31

Bushing

293900106

$4.42

33

Tie-Rap 180 mm

414115200

$0.09

34

Steering Bushing

709402725

$3.17

35

Bushing

705600799

$3.72

36

Hardened Washer

706200281

$2.34

37

Cluster Support | X, XT

707900013

$15.35

38

Upper Cluster Cover | X, XT

707900124

$15.35

39

Speedometer Cover

709400514

$15.35

40

Latch Indicator Cover

709400573

$10.98

41

Steering Wheel | STD

709400650

$133.82

47

Adjustment Cylinder

709402506

$69.20

49

Cluster Support | STD

709400760

$23.05

50

Steering Center | STD

709400780

$11.83

59

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

66

Ball Joint

709401134

$50.34

67

Steering Shaft

709401167

$46.12

76

Boot Kit, Pinion Side

715900235

$55.35

77

Boot Kit, Tube Side

715900236

$55.35

83

Nut Tie Rod End

715900237

$13.83

85

Steering Ass'y | Includes 29 to 31

709401185

$350.74

86

Boot Tube Side

709401232

$13.62

88

Power Steering

709401406

$1,624.99

90

SUPPORT - Call your local BRP dealership

709401296

Unavailable

94

STEERING COLUMN - Call your local BRP dealership

709401326

Unavailable

95

COUPLING - Call your local BRP dealership

709401328

Unavailable

96

LH DPS SUPPORT - Call your local BRP dealership

709401336

Unavailable

97

RH DPS SUPPORT - Call your local BRP dealership

709401337

Unavailable

98

Painted Steering Wheel Support

709401391

$83.05
