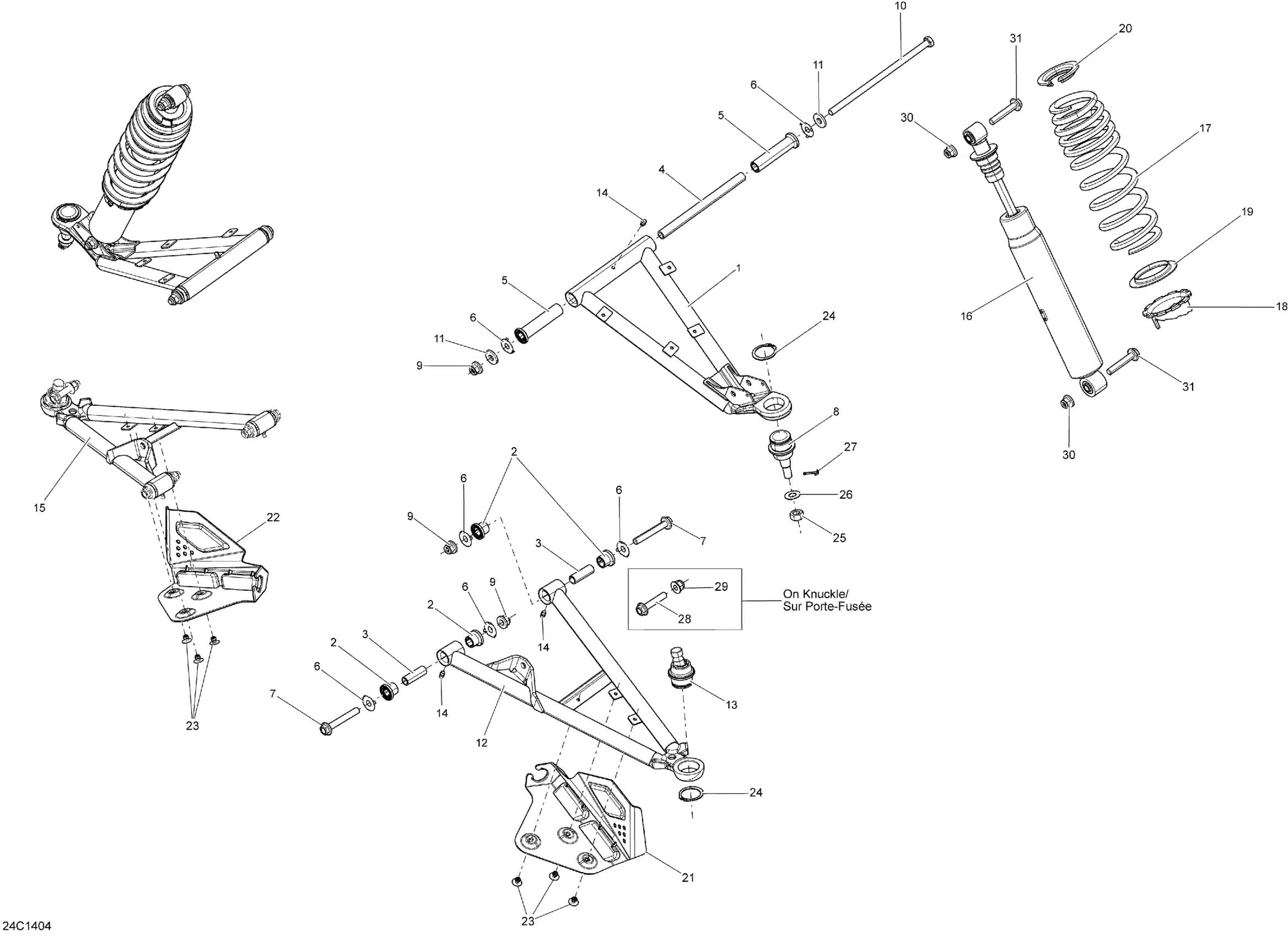

Can-Am Commander MAX 1000_DPS, XT, 2014 Front Suspension _24C1404 Diagram

#

Description
Price

1

Suspension Upper Arm

706200796

$177.58

2

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

3

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

4

Bushing

706202445

$13.28

5

Cushion

706201062

$1.79

6

Wear Plate

706201063

$0.85

7

Hex. Flange Screw M10 X 70

207607046

$2.82

8

Ball Joint

706202044

$34.30

9

Hex. Flange Elastic Nut M10

233201436

$2.00

10

Hex. Cap Screw M10 X 225

250001032

$10.90

11

Washer

503190439

$5.64

12

RH Lower Suspension Arm

706200744

$177.58

13

Ball Joint

706202045

$34.30

14

Grease Fitting

408200700

$3.21

15

LH Lower Suspension Arm

706200742

$177.58

16

Front Shock

706201758

$188.78

17

YELLOW FRONT SPRING - Call your local BRP dealership | Model-DPS Yellow, XT Yellow

706202188

Unavailable

17

BLACK FRONT SPRING - Call your local BRP dealership | Model-XT Magnesium, XT Camo

706202189

Unavailable

18

Adjustment Ring

706000910

$13.45

19

Protector Ring | STD, XT

706000911

$6.73

20

Spring Stopper

706000567

$14.40

21

RH Protector

706201670

$16.39

22

LH Protector

706201669

$16.39

23

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

24

Circlip

293370035

$2.48

25

Nut M12

250100099

$1.88

26

Hardened Washer

706200281

$2.69

27

Cotter Pin

211400017

$0.28

28

Hex. Flange Screw M10 X 50

207605044

$5.04

29

Hex. Flange Elastic Nut M10

233201414

$1.45

30

Hex. Flange Elastic Nut M10

233201436

$2.00

31

Hex. Flange Screw M10 X 55

207605546

$2.00
