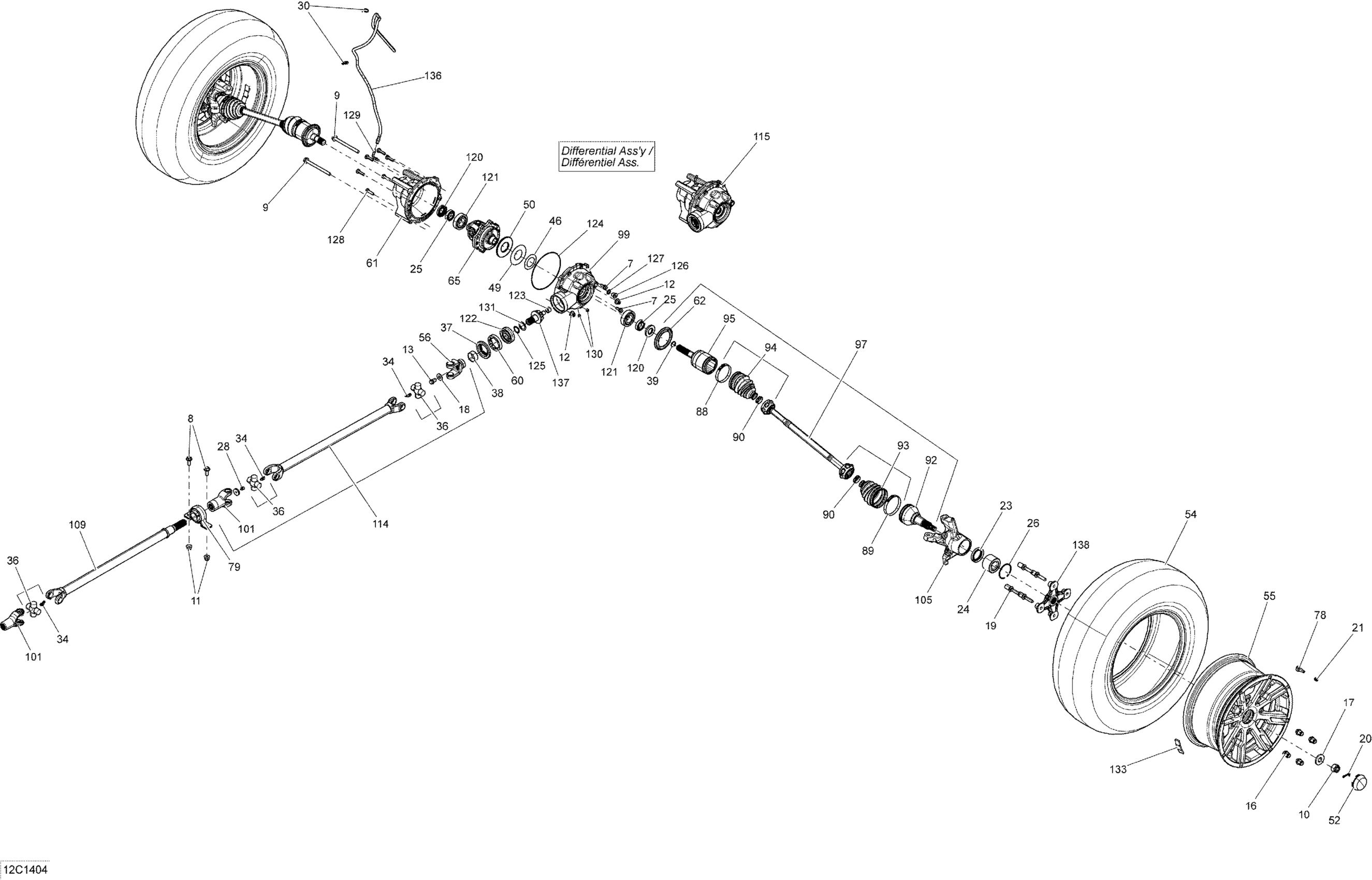

Can-Am Commander MAX 1000_DPS, XT, 2014 Drive System, Front _12C1404 Diagram

#

Description
Price

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

8

Hex. Flange Screw M10 X 25

207602544

$1.33

9

Hex. Flange Screw M10 X 125

230602546

$6.08

10

Hex. Flange Castellated Nut M18

232291413

$2.82

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Hex. Flange Elastic Nut M10

233201436

$1.74

13

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

16

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

16

Black, Wheel Nut M10 X 1.25

250100184

$2.48

16

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

17

Conical Spring Washer M18

250200171

$5.28

18

Flat Washer M12

250200102

$1.74

19

Wheel Stud

250300060

$9.58

20

Cotter Pin

250400036

$1.74

21

Valve Cap

293000110

$1.18

23

O-Ring

293250246

$7.37

24

Ball Bearing

293350150

$51.93

25

Ball Bearing | 4X4

293350044

$30.39

26

Circlip

293370019

$4.98

28

Grease Fitting

703500815

$4.62

30

Tie Wrap 142 mm

293750002

$0.88

34

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

36

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

37

Oil Seal | 4X4

705401481

$18.43

38

Wear Ring | 4X4

705400036

$25.35

39

Circlip Joint | Not shown

705401349

$5.38

49

Shim | 4X4

705401604

$55.35

50

Shim | 4X4

705401604

$55.35

52

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

52

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

52

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

54

Front Tire | XT Europe

705400961

$238.43

54

Front Tire

705402168

$235.35

55

Front Rim | XT International Except CAMO

705401378

$179.97

55

Front Rim | XT International Except CAMO

705401378

$179.97

55

Front Rim | XT CAMO

705401379

$199.97

56

Fixed Yoke Joint

715900116

$59.97

60

Nut | 4X4

705401603

$36.89

61

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

65

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

78

Rim Valve With Cap

705400193

$6.69

79

Ball Bearing | Model-COM-MAX

705401646

$59.37

88

Oetiker Clamp, Large

715900260

$7.84

89

Oetiker Clamp, Large

715900262

$7.84

90

Oetiker Clamp, Small

715900261

$4.39

92

JOINT_CV EXT - Call your local BRP dealership

705401353

Unavailable

92

JOINT_CV EXT - Call your local BRP dealership

705401353

Unavailable

93

Boot Kit, Wheel Side

705401354

$41.51

94

Boot Kit, Différential Side

705401355

$41.51

94

RH Plunging CV Joint

715900395

$249.20

94

LH Plunging CV Joint

715900396

$249.20

97

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$232.74

97

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$232.74

99

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

101

Yoke Joint | Cover 715900483

715900231

$27.66

105

LH Front Knuckle

705401548

$129.20

105

RH Front Knuckle

705401549

$106.12

109

Drive Axle Ass'y | Model-COM-MAX

705402041

$401.51

114

Axle Drive Ass'y

705402066

$249.20

115

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

120

Gasket | 4X4

705401618

$17.66

121

Ball Bearing | 4X4

705401606

$49.20

122

Ball Bearing | 4X4

705500260

$30.39

123

Needle Bearing | 4X4

705500261

Unavailable

124

Seal | 4X4

705500265

$16.12

125

O-Ring | 4X4

705500267

$6.25

126

Fill Level Plug | 4X4

705500504

$7.61

127

Copper Washer | 4X4

705500506

$0.36

128

Screw | 4X4

705401601

$9.29

129

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

130

Drain Plug | 4X4

705500894

$11.06

131

Pinion Gear Shim 1.67 mm

705502061

$16.12

133

1/2 Oz Weight

219704465

$4.35

136

Polyurethane Hose 10000Mm Long

219704410

$46.12

137

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

138

Wheel Hub

705501900

$129.20
