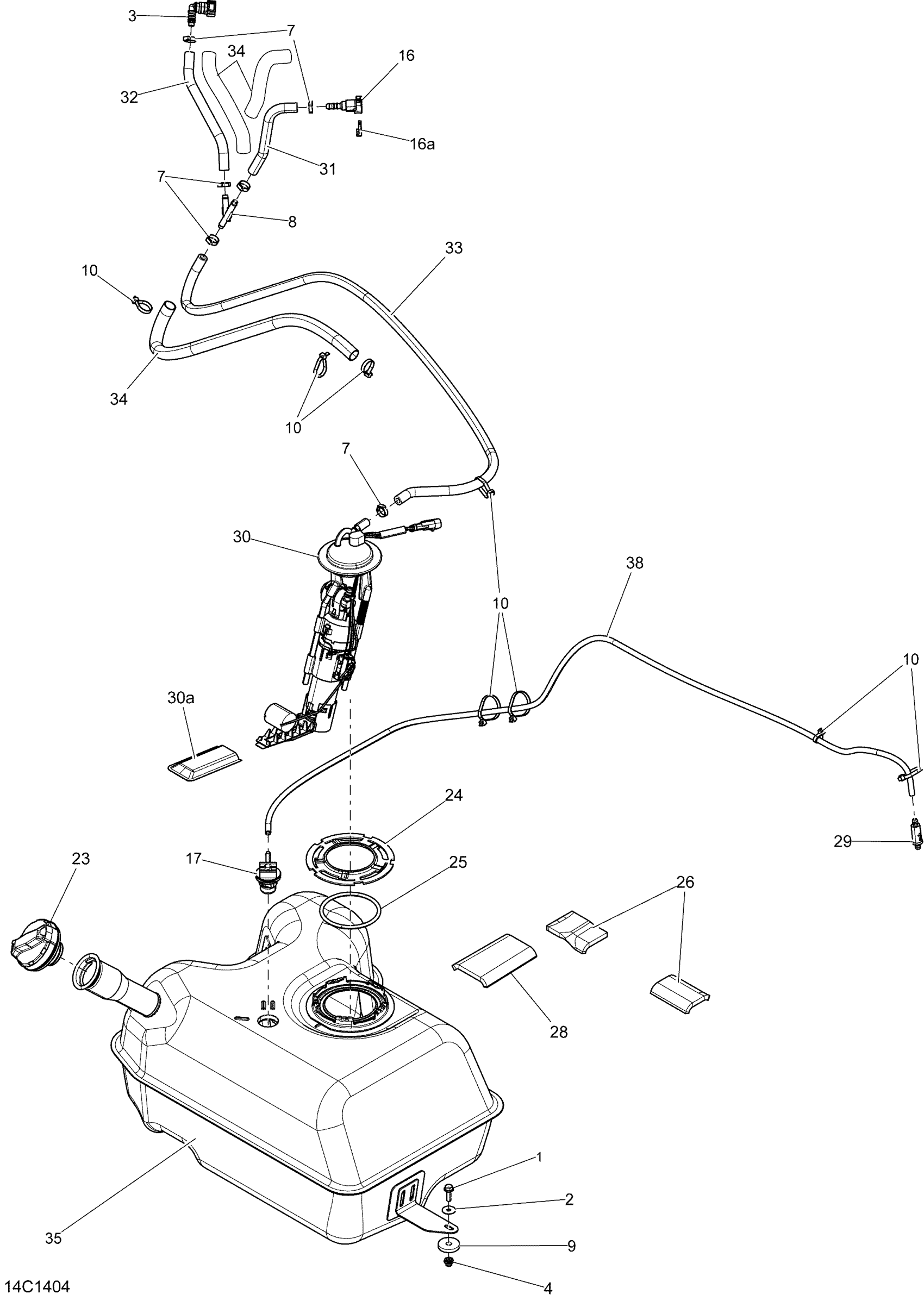

Can-Am Commander MAX 1000_DPS, XT, 2014 Fuel System _14C1404 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662544

$0.53

2

Flat Washer

224060201

$1.15

3

Quick Attach 90°

275500700

$12.61

4

Threaded Insert M6 X 1.0

250100242

Unavailable

7

Crimp Clamp, 15.3-706R

293650047

$2.64

8

Y-Fitting, 5/16''

293710136

$6.45

9

Rubber Washer

293830037

$2.75

10

Tie-Rap 180 mm

414115200

$0.09

16

Female Quick Fitting Ass'y

709000125

$11.12

16a

Locking Clip

513033135

$5.11

17

Rollover Valve

709000413

$52.28

23

Fuel Cap | Except Europe

709000529

$28.92

24

Ring

709000274

$14.85

25

O-Ring

709000275

$16.12

26

Neoprene Pad

709000288

$13.83

28

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

29

Filter

709000330

$8.29

29

Fuel Pre-Filter Kit

709000389

$78.43

30

Fuel Pump | Includes 5 to 6

709000759

$353.87

30a

Fuel Pre-Filter Kit

709000389

$78.43

31

Was 709000163 Fuel Line

219704440

$108.43

32

Was 709000163 Fuel Line

219704440

$108.43

33

Was 709000163 Fuel Line

219704440

$108.43

34

Tubing 16 Mm 1000Mm Long

219704408

$6.23

35

Fuel Tank

709000753

$769.97

38

Polyurethane Hose 10000Mm Long

219704410

$46.12
