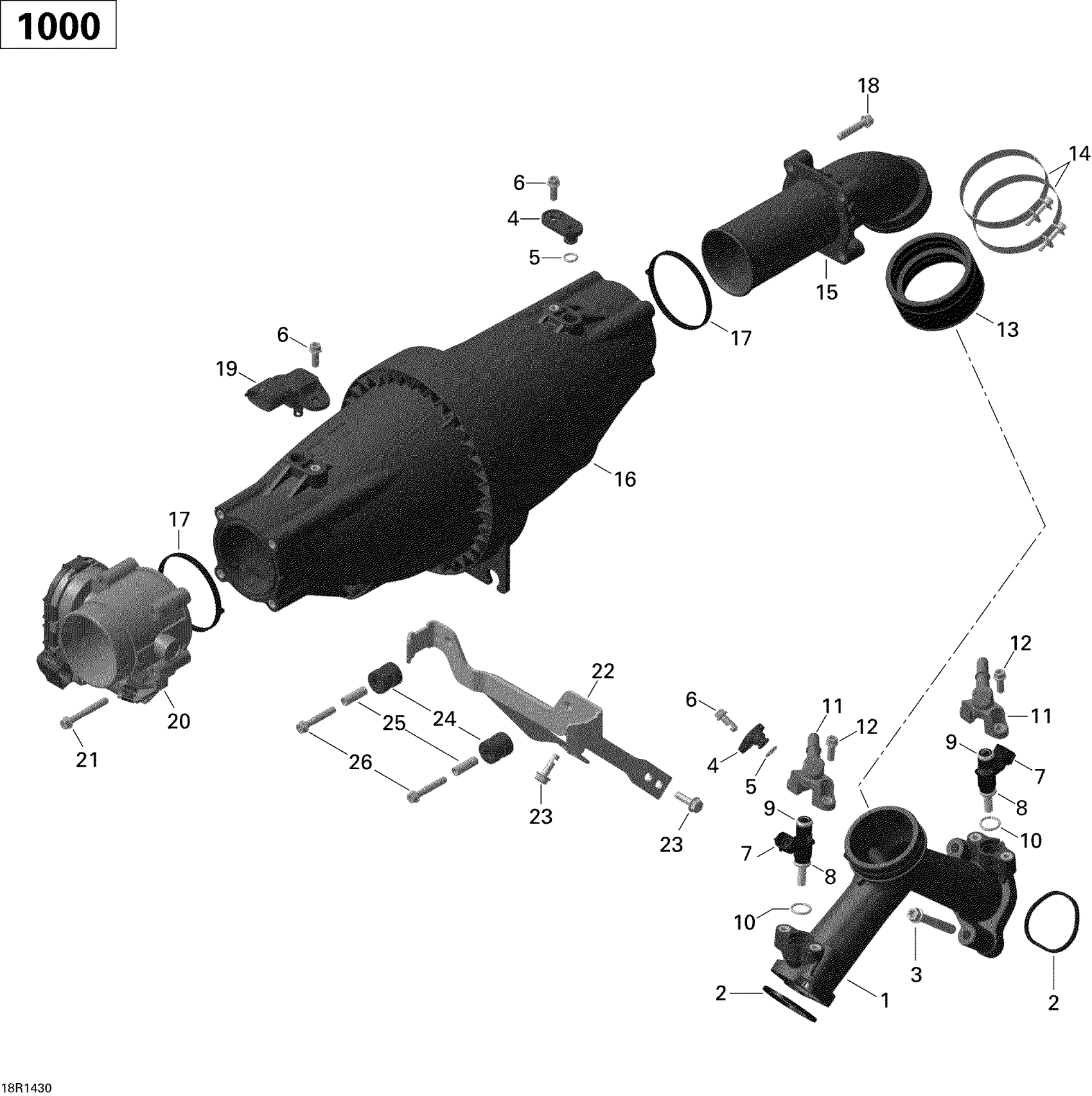

Can-Am Commander MAX 1000_DPS, XT, 2014 Air Intake Manifold And Throttle Body _18R1430 Diagram

#

Description
Price

1

Air Intake Manifold

420667520

$73.82

2

Gasket

420630642

$5.22

3

Torx Flange Screw M8 X 55

420641213

$6.11

4

Cover

420460980

$2.75

5

O-Ring

420230461

$0.91

6

Hex. Flange Screw M6 X 12

420440147

$1.97

7

Injection Valve Ass'Y | Includes 18 to 20

420874833

$155.35

8

O-Ring

420431890

$4.95

9

O-Ring

420631220

$11.48

10

O-Ring

420631296

$0.74

11

Fuel Rail

420874901

$23.05

12

Torx Flange Screw M6 X 16

420641048

$2.46

13

Intake Neck

420267042

$16.89

14

Clamp

420251209

$8.34

15

Air Inlet Manifold

420667522

$32.28

16

Air Inlet Manifold Ass'y | Includes 16 to 17

420667526

$175.35

17

Gasket | Included in gasket kit

420431900

$5.52

18

Hex. Screw M6 X 30

420241947

$3.95

19

Pressure And Temperature Sensor

707000995

$70.82

20

Throttle Body Socket Ass'y

420892596

$446.89

21

Torx Flange Screw M6 X 45

420641198

$3.38

22

Support

420651521

$78.43

23

Hex.Screw M6 X 20

420441311

$4.24

24

Rubber Bracket

420660090

$3.38

25

Spacer

420847971

$6.08

26

Hex. Screw M6 X 35

420441457

$3.25
