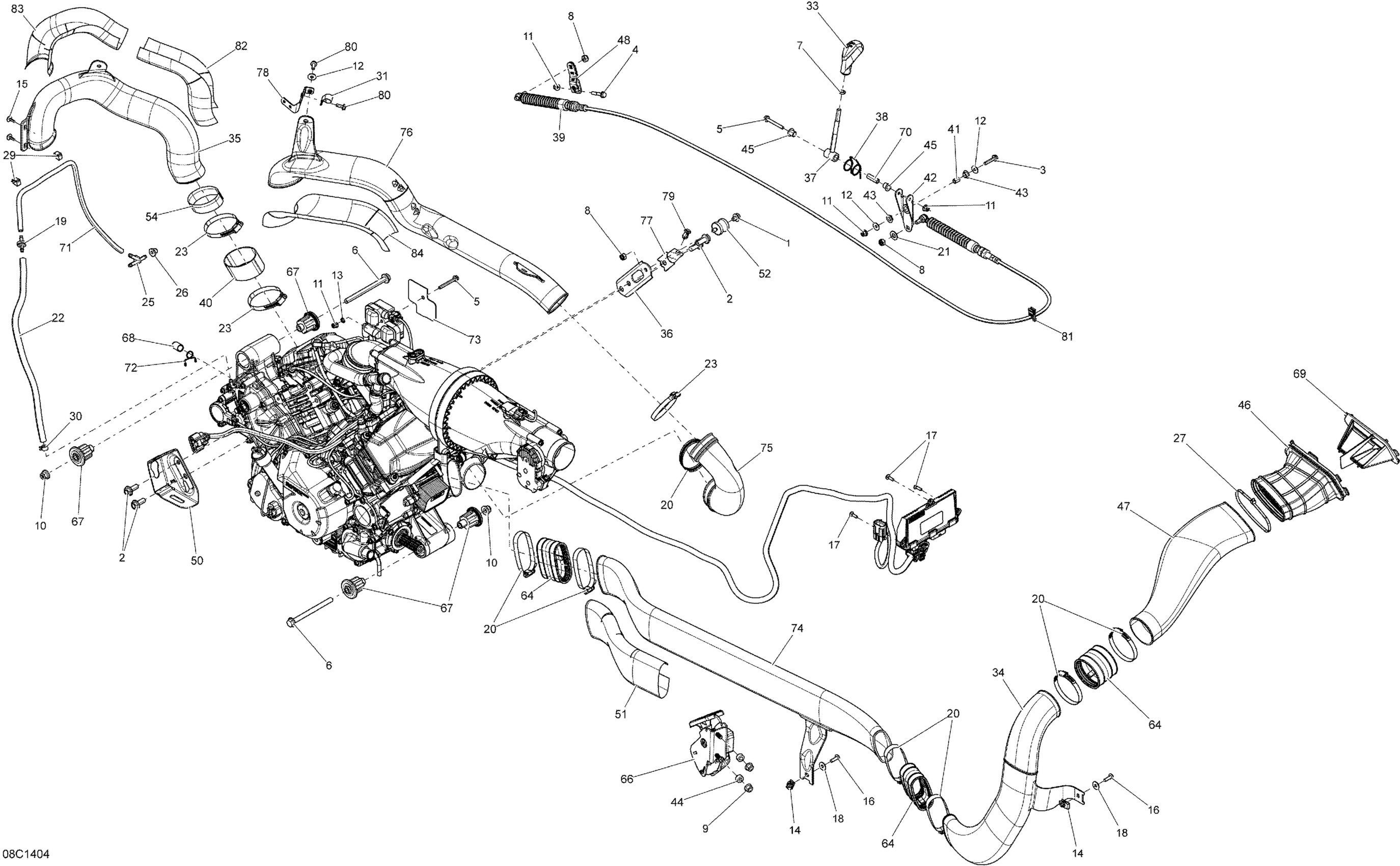

Can-Am Commander MAX 1000_DPS, XT, 2014 Engine _08C1404 Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

2

Hex. Flange Screw M10 X 25

207602544

$1.33

3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

4

Hex. Flange Screw M6 X 35

207663544

$0.74

5

Hex. Flange Screw M6 X 50

207665044

$3.38

6

Hex. Flange Screw M10 X 125

230602546

$6.08

7

Hex. Jam Nut M8

232180491

$6.18

8

Hex. Elastic Stop Nut M8

232581414

$0.47

9

Hex. Flange Nut M8

233081416

$1.63

10

Hex. Flange Elastic Nut M10

233201436

$1.74

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Flat Washer 6 mm

234062410

$0.64

13

External Serrated Lock Washer 6 mm

234461608

$0.92

14

Panel Nut M6 X 1.0

250100198

$1.73

15

Screw M4 X 16

250000725

$2.87

16

Torx Screw M6 X 20

250000722

$1.34

17

Torx Screw K50 X 16

250000720

$1.39

18

Flat Washer

250200082

$0.35

19

Check Valve

275500398

$8.57

19

Straight Fitting

293710039

$7.37

20

Norma Clamp

293650091

$4.60

21

Flat Washer 10 mm

234001410

$0.98

22

Hose

219704549

$47.66

23

Norma Gear Clamp

293650118

$9.74

25

Y-Fitting

293710059

$8.19

26

Grommet

293720029

$1.13

27

Tie Wrap 368 mm

293750008

$0.85

29

Clip

414227300

$1.45

30

Spring Clamp

414415200

$0.83

31

Open Clamp

518321570

$6.03

33

Lever Handle

707000284

$18.43

34

Air Inlet

707001339

$16.89

35

CVT Outlet

707001243

$64.58

36

Upper Engine Bracket

707000707

$5.54

37

Upper Lever Arm

707000711

$36.89

38

Lever Arm Spring

707000750

$2.75

39

Shifting Cable

707001348

$64.58

40

Adaptor

707001274

$15.35

41

Bushing

707000801

$2.48

42

Lower Lever Arm

707000828

$16.89

43

Flanged Bushing

707000847

$1.00

44

Bushing

707000848

$1.08

45

Flanged Bushing

707000869

$2.20

46

Adaptor

707000908

$36.89

47

Primary Air Intake

707000909

$23.05

48

Lever

707000911

$18.43

50

Cable Support | Engine 1000

707000919

Unavailable

51

Reflector

707001346

$27.66

52

Rubber Isolator

707000949

$9.00

54

Reflector

707000988

$4.98

64

Flexibale Adaptor

707002585

$14.75

66

Accelerator Pedal

707001166

$281.51

67

Vibration Damper

707001169

$41.51

68

Plug

707001185

$1.37

69

CVT Filter

707001344

$14.75

70

Bushing

707001376

$4.22

71

Polyurethane Hose 10000Mm Long

219704410

$46.12

72

Retainer Clip

707800506

$10.98

73

Insulator Pad

710000073

$11.06

74

Air Inlet

707001228

$50.74

75

Front Adaptor

707001229

$23.05

76

CVT Outlet

707001230

$46.12

77

Front Support

707001231

$14.37

78

Rear Support

707001232

$8.46

79

Tuflok Plastic Rivet

293150230

$1.21

80

Hex. Flange Screw M6 X 16

210261650

$1.22

81

Clip Tie-Rap

710002899

$8.45

82

Reflector

707001284

$7.69

83

Reflector

707001360

$7.69

84

Reflector

707001286

$7.69
