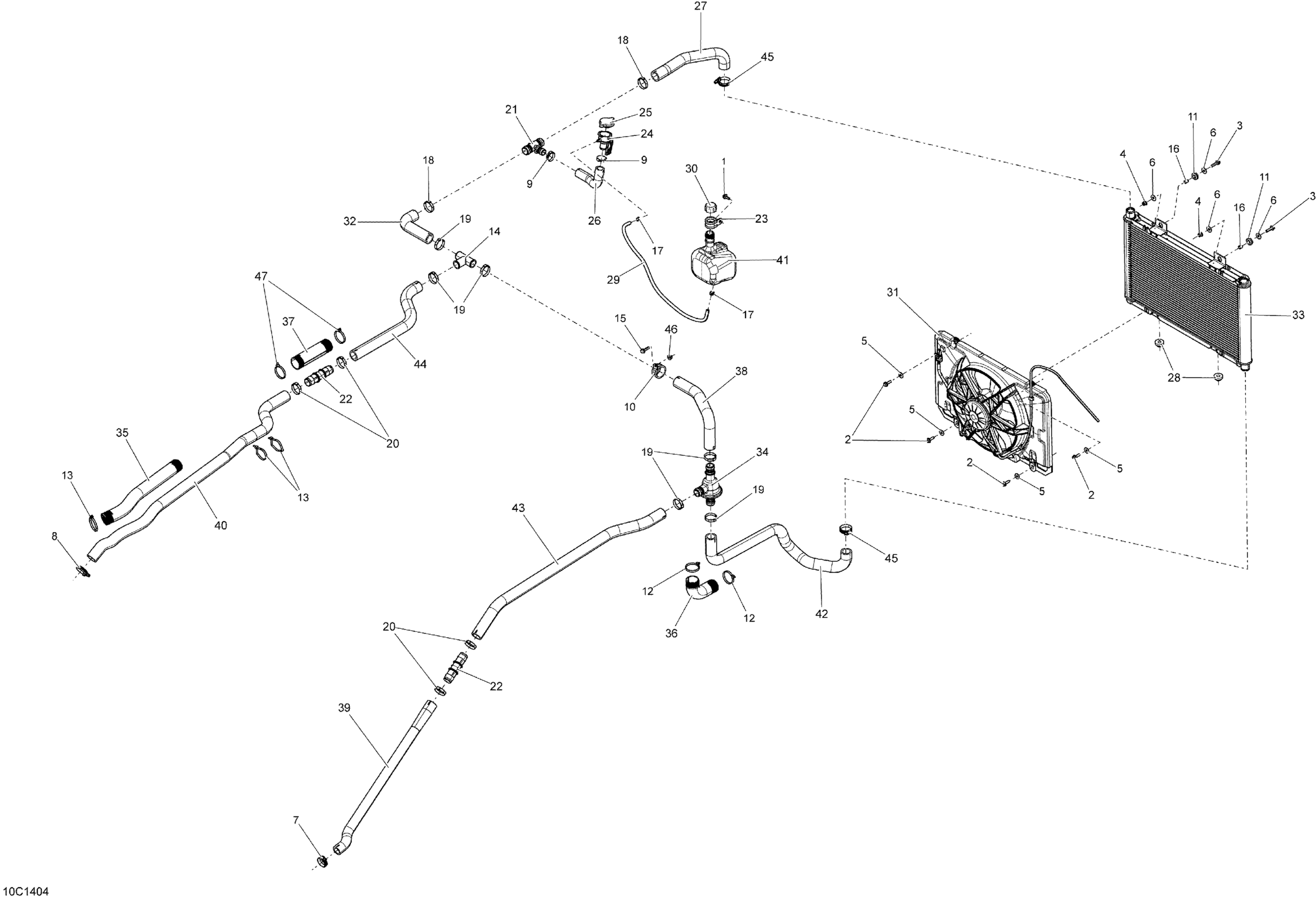

Can-Am Commander MAX 1000_DPS, XT, 2014 Cooling System _10C1404 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hex. Flange Screw M6 X 25

207662534

$1.74

4

Flange Elastic Nut M6

233261434

$3.61

5

Flat Washer 6 mm

234062410

$0.64

6

Flat Washer

250200082

$0.35

7

Norma Gear Clamp

293650098

$4.28

8

Norma Gear Clamp

293650098

$4.28

9

Crimp Clamp

293650099

$4.60

10

Hose Retainer

293650218

$8.45

11

Grommet

709000582

$4.38

12

Tie Wrap 368 mm

293750008

$0.85

13

Tie Wrap 368 mm

293750008

$0.85

14

T-Fitting

509000219

$15.35

15

Hex. Flange Screw M6 X 25

207662534

$1.74

16

Bushing

293900105

$6.26

17

Spring Clamp

414554800

$0.83

18

Gear Clamp

509000162

$5.84

19

Gear Clamp

509000162

$5.84

20

Gear Clamp

509000162

$5.84

21

T-Fitting

509000372

$7.87

22

Fitting

509000914

$7.37

23

Hose Anchor

709200036

$10.83

24

Filler Neck

709200179

$17.66

25

Radiator Pressure Cap

709200207

$18.82

26

Filler Neck Hose

709200264

$10.14

27

Radiator Outlet Hose

709200265

$10.98

28

Grommet

709200285

$7.09

29

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

30

Tank Cap

709200587

$5.29

31

Fan Ass'y

709200566

$267.66

32

Intermediate Hose

709200904

$23.05

33

Radiator

709200395

$359.97

34

Thermostat

709200406

$77.32

35

Tubing 35 MM 1000MM Long

219704428

$8.57

36

Tubing 35 MM 1000MM Long

219704428

$8.57

37

Tubing 35 MM 1000MM Long

219704428

$8.57

38

Hose

709200447

$24.58

39

Pump Hose

709200496

$27.66

40

Hose

709200497

$50.74

41

Coolant Tank Ass'y

709200624

$96.89

42

Hose_Radiator In

709200909

$23.05

43

Pump Hose

709200519

$27.66

44

Intermediate Hose

709200520

$23.05

45

Norma Gear Clamp

293650098

$4.28

46

Flange Elastic Nut M6

233261434

$3.61

47

Tie Wrap 368 mm

293750008

$0.85
