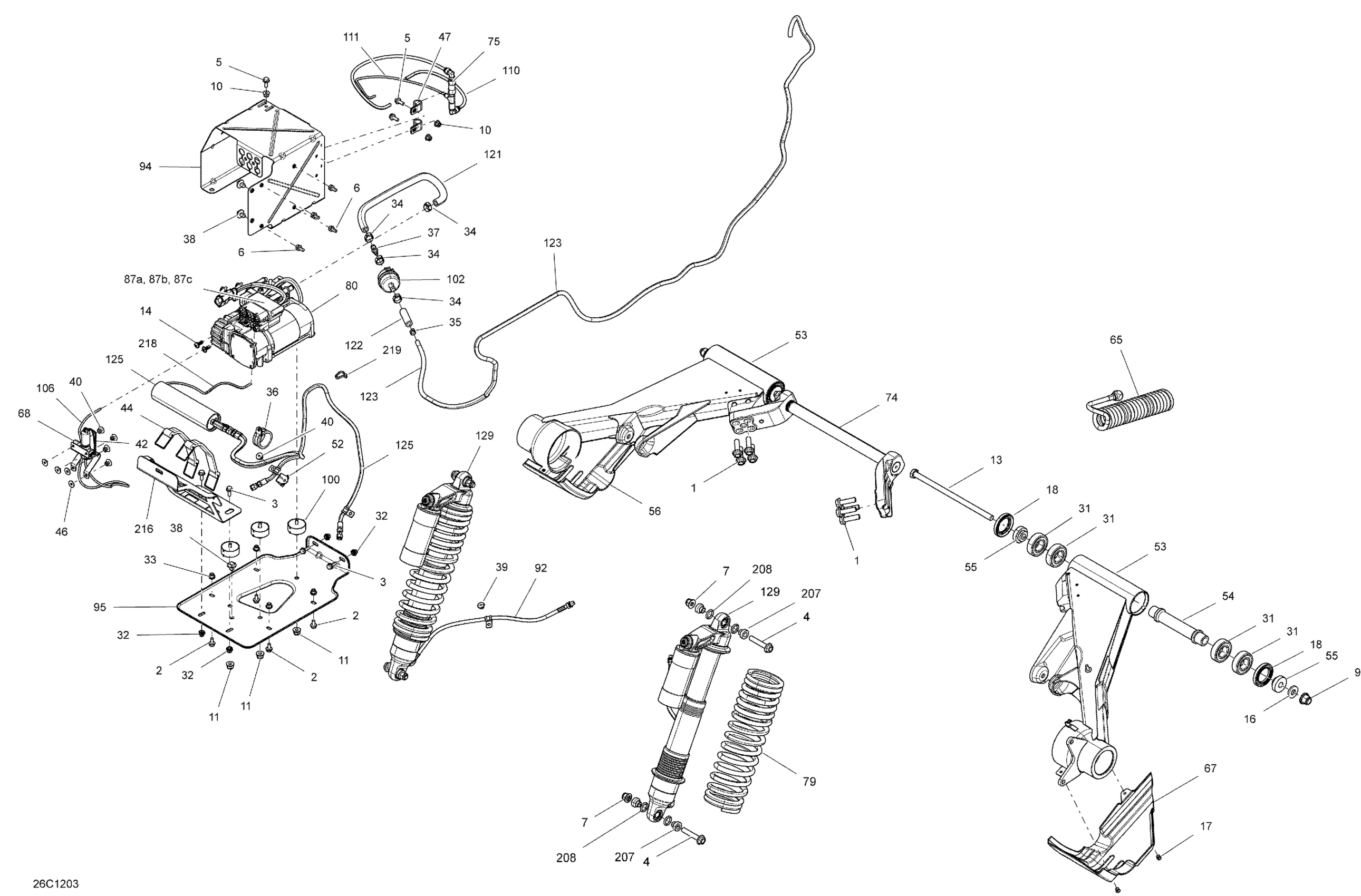

Can-Am Commander LTD, 1000 EFI, 2012 Rear Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 35

207503544

$7.17

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

4

Hex. Flange Screw M10 X 55

207605544

$2.78

5

Hex. Flange Screw M6 X 16

207661644

$0.61

6

Hex. Flange Screw M6 X 12

210261250

$1.56

7

Hex. Flange Elastic Nut M10

233201436

$1.74

9

Elastic Flange Nut M12

233221416

$2.33

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Flange Elastic Nut M8

233281414

$1.14

13

Hex. Cap Screw M12 X 241

250001031

$3.16

14

Oval Head Torx Screw K60 X 16

250000546

$1.74

16

Flat Washer M12

250200120

$2.31

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

18

Seal

293200094

$9.31

31

Ball Bearing

293350115

$11.15

32

Threaded Insert M6 X 1.0

250100242

Unavailable

33

Threaded Insert M6 X 1.0

250100242

Unavailable

34

Crimp Clamp

293650053

$2.42

35

Clamp, Oetiker

293650195

$1.37

36

Hose Retainer

293650218

$8.45

37

Straight Fitting

293710035

$8.63

38

Mount Dart

293730040

$0.86

39

Pop Rivet 3/16"

390406500

$0.70

40

Pop Rivet 3/16"

390406500

$0.70

42

O-Ring

414811400

$6.34

44

Battery Strap

515176044

$14.27

46

Washer

517124300

$0.16

47

Open Clamp

705600040

$12.91

52

Bracket

705601337

$2.69

53

RH Swing Arm

703500965

$184.58

53

LH Swing Arm

706001177

$184.58

54

Bushing

706001529

$32.28

55

Spacer

706001350

$9.29

56

LH Joint Protector

706000630

$8.45

65

Auxiliary Hose

706000808

$101.51

67

RH Joint Protector

706000814

$8.45

68

BRACKET ASS'Y - Call your local BRP dealership

706001873

Unavailable

74

Sway Bar Ass'y | STD, XT

706001500

$179.97

75

PRESSURE DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001144

Unavailable

79

BLACK REAR SPRING - Call your local BRP dealership

706001040

Unavailable

80

COMPRESSOR - Call your local BRP dealership

706001100

Unavailable

92

Rear Hose Ass'y

706002299

$78.43

94

UPPER SUPPORT - Call your local BRP dealership

706001120

Unavailable

95

LOWER SUPPORT - Call your local BRP dealership

706001121

Unavailable

100

RUBBER MOUNT - Call your local BRP dealership

706001127

Unavailable

102

Air Filter

706001141

$32.28

106

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

110

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$9.72

111

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

121

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

122

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

123

Polyurethane Hose 10000Mm Long

219704410

$46.12

125

Rear Shock Distributor

706001751

$281.51

129

Rear Shock Ass'y

706001039

Unavailable

207

Interior Bushing | OUT XTP

715500361

$27.66

208

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$9.89

216

TANK BRACKET - Call your local BRP dealership

706201524

Unavailable

218

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

219

Tie Wrap 142 mm

293750002

$0.88

87a

Solenoid Valve

706001104

Unavailable

87b

Pressure Connector 4mm

715900198

$9.23

87c

PRESSURE CONNECTOR 6MM - Call your local BRP dealership

715900199

Unavailable
