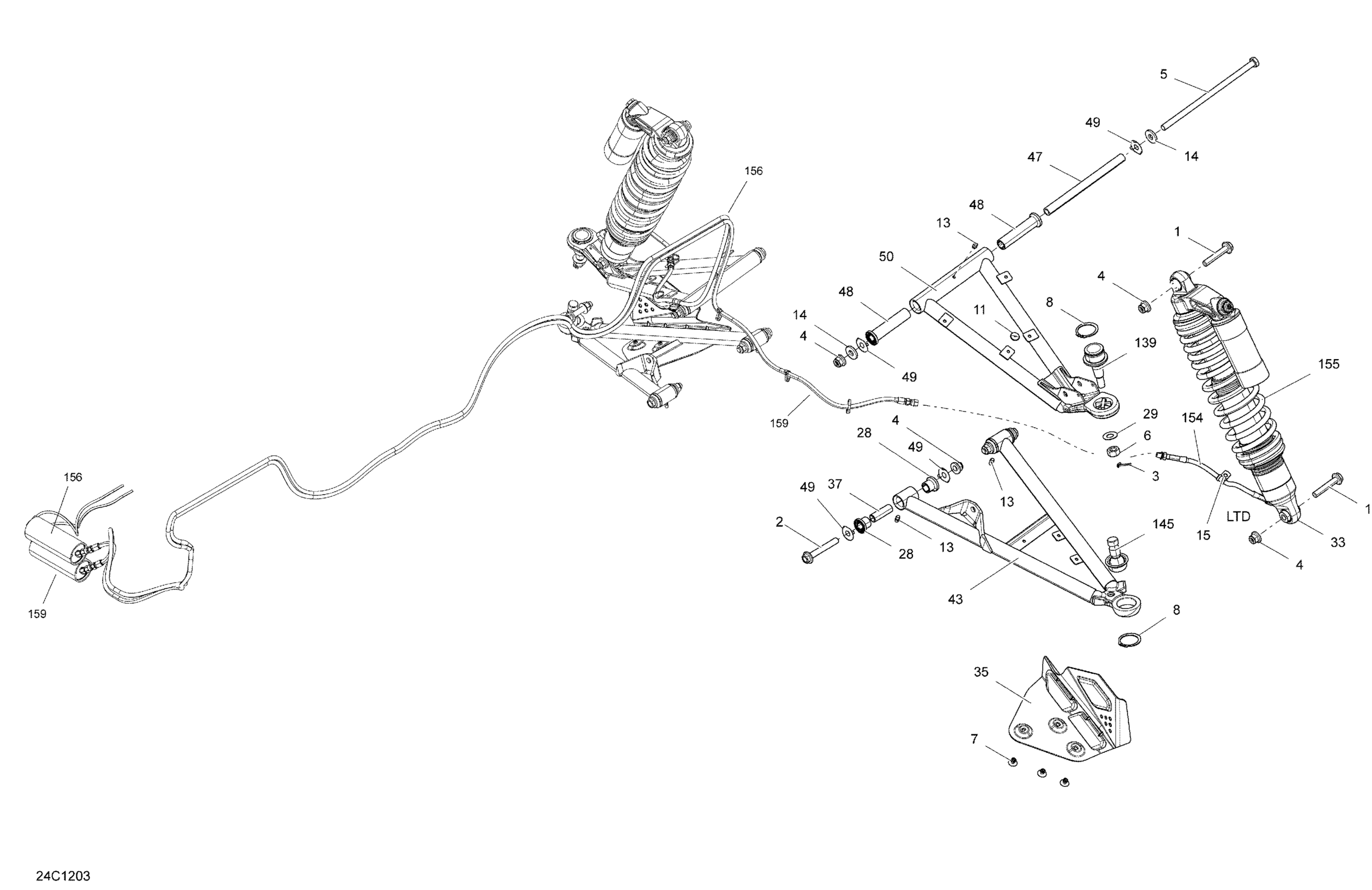

Can-Am Commander LTD, 1000 EFI, 2012 Front Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605544

$2.78

2

Hex. Flange Screw M10 X 70

207607046

$2.91

3

Cotter Pin

211400017

$0.25

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Hex. Cap Screw M10 X 225

250001032

$9.49

6

Nut M12

250100099

$1.64

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8

Circlip

293370035

$2.55

9

Tie Wrap 142 mm

293750002

$0.88

11

Pop Rivet 3/16"

390406500

$0.70

13

Grease Fitting

408200700

$2.80

14

Washer

503190439

$5.82

15

Clamp

293650256

$4.36

28

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

29

Hardened Washer

706200281

$2.34

33

Front Shock

706201364

$804.58

35

RH Protector

706201670

$17.66

35

LH Protector

706201669

$17.66

37

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

43

RH Lower Suspension Arm

706200744

$184.58

43

LH Lower Suspension Arm

706200742

$184.58

47

Bushing

706202445

$16.89

48

Cushion

706201062

$4.60

49

Wear Plate

706201063

$0.89

50

Suspension Upper Arm

706200796

$184.58

139

Ball Joint

706202044

$35.14

145

Ball Joint

706202507

$59.97

154

Front Hose Ass'y

706202444

$78.43

154

RH FRONT HOSE ASSEMBLY - Call your local BRP dealership

706201470

Unavailable

155

BLACK SPRING - Call your local BRP dealership

706201473

Unavailable

156

LH Hose Ass'y

706201997

$166.12

159

RH Hose Ass'y

706201999

$166.12
