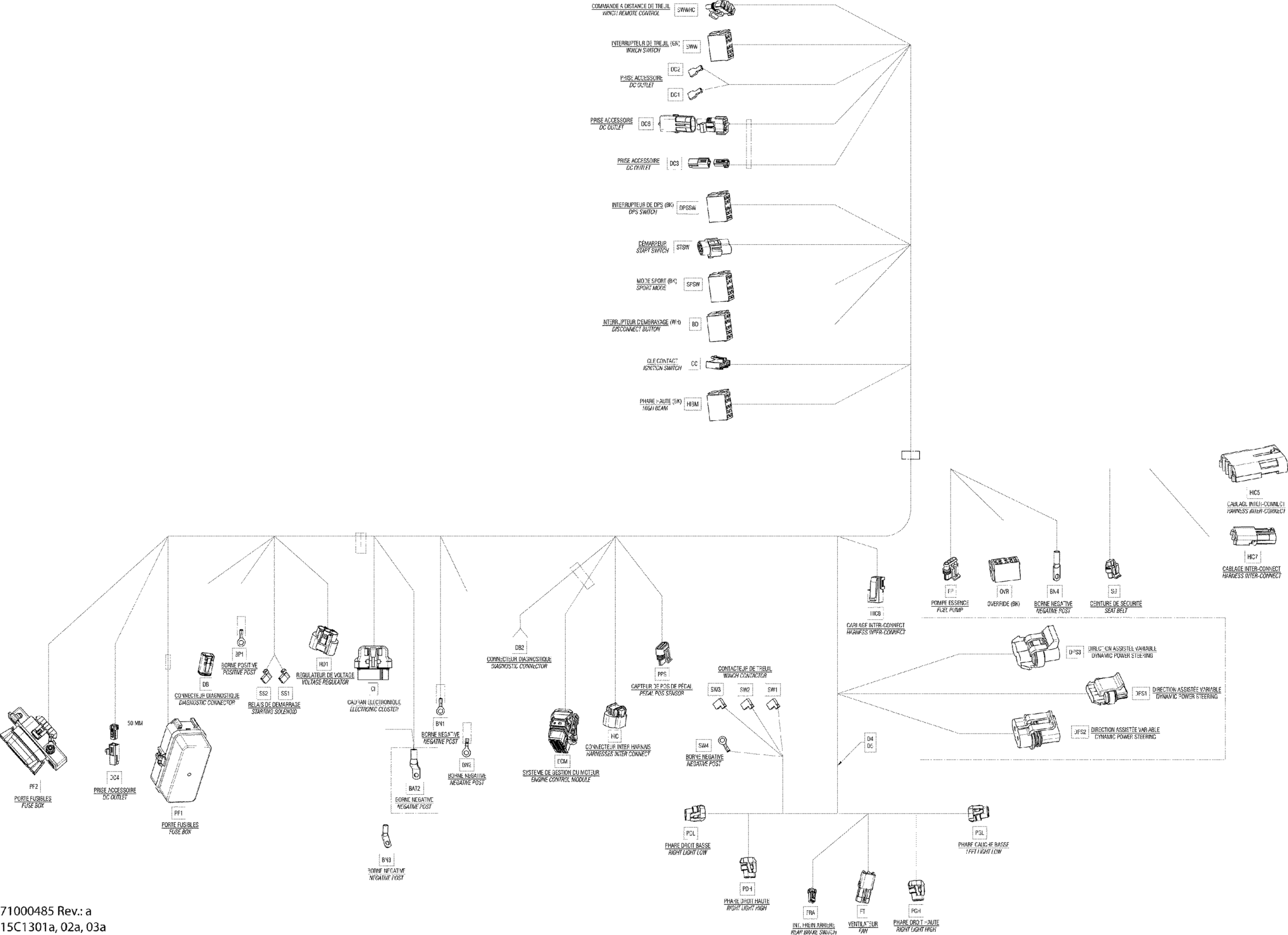

Can-Am Commander LTD 1000, 2013 Electrical Harness Diagram

#

Description
Price

1

Harness Ass'y | Includes 1 to SWWRC

710002485

$916.39

BD

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

BD

Terminal

710001931

$1.60

BD

Housing Connector

710002001

$11.81

BN1

Terminal

710000913

$5.30

BP1

Terminal

710000913

$5.30

CA

HOUSING - Call your local BRP dealership

710001634

Unavailable

CA

Terminal

710001630

$2.09

CA

SEAL - Call your local BRP dealership

710001637

Unavailable

CA

LOCK - Call your local BRP dealership

710001633

Unavailable

CC

Female Terminal

710000274

$8.72

CC

Lock

710000848

$3.12

CC

Male Housing, 6 Circuits

710000849

$8.67

CC

Terminal | Canada/Usa

710001635

$3.12

CI

Plug

515175812

$1.96

CI

Female Housing, 24 Circuits

515175801

$8.73

CI

Retainer Block

515175802

$10.34

CI

Wire Seal

515175803

$2.76

CI

Female Housing

710000399

$13.60

CI

Female Terminal

710001131

$6.79

D2

Diode

409012700

$10.51

D4

Diode

409012700

$10.51

D5

Diode

409012700

$10.51

DB

Sealing Cap

293000052

$2.93

DB

Male Housing, 6 Circuits

515175673

$12.66

DB

Male Wedge, 6 Circuits

515175678

$4.96

DB

Female Terminal

278001665

$4.28

DB2

Sealing Cap

293000052

$2.93

DB2

Male Housing, 6 Circuits

515175673

$12.66

DB2

Male Wedge, 6 Circuits

515175678

$4.96

DB2

Female Terminal

278001665

$4.28

DC1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

DC1

Female Terminal

409010800

$0.93

DC2

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

DC2

Female Terminal

710000038

$4.19

DC3

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

DC3

Female Terminal

515175231

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Male Housing, 2 Circuits

710000667

$7.25

DC4

Female Terminal

515175231

$4.00

DC4

Female Housing, 2 Circuits

515175658

$14.90

DC4

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

DC4

Male Housing, 2 Circuits

710000667

$7.25

DC5

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

DC5

Wire Seal

710001159

$5.90

DC5

Female Terminal

710001160

$5.90

DC5

Housing

710001157

$16.39

DC5

Lock

710001323

$5.90

DC6

Female Terminal

409007300

$0.42

DC6

Female Housing, 2 Circuits

278000217

$8.72

DC6

Male Connector, 2 Circuits

278000220

$12.66

DC6

Wire Seal

278000218

$4.00

DC6

Wire Seal

278000216

$2.93

DC6

Clip

710000992

$3.88

ECM

Female Terminal Housing, 48 Circuits

710001588

$45.49

ECM

Female Terminal

710001589

$2.06

ECM

Cover, 48 positions

710001591

$11.54

ECM

Plug

710001592

$2.06

ECM

Plug

710001593

$2.06

ECM

Female Terminal

710001727

$2.93

FP

Female Terminal

278001014

$3.12

FP

Female Housing, 4 Circuits

409209700

$14.90

FP

Wire Seal

278001013

$3.12

FP

Female Terminal

710001340

$4.96

FP

Wire Seal

515176621

$6.79

FRA

Female Terminal

515175231

$4.00

FRA

Female Housing, 2 Circuits

515175658

$14.90

FRA

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Wire Seal

278000218

$4.00

FT

Clip

710000992

$3.88

FT

Male Terminal

409004300

$5.30

HIBM

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

HIBM

Terminal

710001931

$1.60

HIBM

Female Terminal

710000221

Unavailable

HIBM

Housing

710002000

$6.73

HIBM2

Female Terminal

409007300

$0.42

HIBM2

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

HIBM2

Wire Seal

278000218

$4.00

HIBM2

Wire Seal

278000216

$2.93

HIBM2

Wire Seal

278001065

$5.85

HIBM2

Male Terminal Housing, 6 Circuits

710001539

$17.88

HIBM2

Female Terminal

278000223

$2.93

HIC

Seal

710001230

$2.24

HIC

Seal

710001233

$2.93

HIC

Terminal

710001229

$2.93

HIC

Terminal

710001228

$3.12

HIC

Cap

710001225

$8.34

HIC

LOCK - Call your local BRP dealership

710001221

$8.42

HIC

Housing

710001928

$14.52

HIC5

Male Terminal | XT Models

278000222

$2.93

HIC5

Wire Seal

278001065

$5.85

HIC5

Clip

710000992

$3.88

HIC5

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

LB1

Female Terminal

515175231

$4.00

LB1

Female Housing, 2 Circuits

515175658

$14.90

LB1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

LB2

Male Terminal

515175232

$1.45

LB2

Male Terminal Housing, 2 Circuits

515175654

$7.25

OVR

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

OVR

Terminal

710001931

$1.60

OVR

Housing

710002000

$6.73

PDH

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PDH

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PDH

Wire Seal

710001427

$2.09

PDL

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PDL

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PDL

Wire Seal

710001427

$2.09

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 15 Ampere

710000745

$7.78

PF1

Little Fuse, 30 Amperes

710000747

$7.78

PF1

Relay, 30 AMP

515176774

$18.63

PF1

Relay

715900824

$18.63

PF1

Relay

715900824

$18.63

PF1

Housing

710002177

$3.12

PF1

Wire Seal

278000999

$2.93

PF1

Seal

415128501

$1.73

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 7.5 Amperes

710000743

$7.78

PF1

Little Fuse, 10 Amperes

710000744

$8.31

PF1

Little Fuse, 15 Ampere

710000745

$7.78

PF1

Little Fuse, 30 Amperes

710000747

$7.78

PF1

Fuse Box Base Ass´y

415129856

$47.73

PF1

Fuse Puller

710000781

$8.29

PF1

Female Terminal

710000836

$5.30

PF1

Female Terminal

710000837

$4.96

PF1

Cap

710000840

$5.33

PF1

Fuse Cover

710001026

$20.12

PF1

Foam

278002172

$5.33

PF1

Relay, 30 AMP

515176774

$18.63

PF1

Relay

715900824

$18.63

PF2

Fuse, 40 AMP

710001047

$11.80

PF2

LOCK - Call your local BRP dealership

710001633

Unavailable

PF2

Open Barrel Terminal

278001392

$4.00

PF2

Fuse 30 amp.

710001200

$6.69

PF2

LOGEMENT

710001632

Unavailable

PF2

Terminal

710001636

$3.12

PF2

Hex. Flange Elastic Nut M6

233261494

$1.45

PF2

Terminal Joint

710001905

$2.09

PF2

Housing

710001996

$44.00

PGH

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PGH

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PGH

Wire Seal

710001427

$2.09

PGL

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PGL

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PGL

Wire Seal

710001427

$2.09

PPS

Female Terminal

710001119

$4.96

PPS

Female Terminal Housing 6 Circuits

278002299

$8.58

RD1

Terminal

710001934

$5.18

RD1

Female Housing, 3 Circuits

710000879

$24.60

RD1

Cap

710000882

$10.55

RD1

Seal

710001932

$3.06

RD2

Housing, 3 Circuits

710000880

$20.12

RD2

Terminal

710001934

$5.18

RD2

Seal

710001932

$3.06

SB

Female Terminal

710001134

$5.85

SB

Seal

278001482

$2.93

SB

Housing

710002177

$3.12

SB

Lock

710002043

$0.81

SPSW

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

SPSW

Terminal

710001931

$1.60

SPSW

Housing

710002000

$6.73

SS1

Female Terminal

409010300

$4.00

SS2

Female Terminal

409010300

$4.00

STSW

Female Terminal

409012100

$4.28

STSW

Not Available As Spare Part - Friction Washer

Unavailable

STSW

Seal

409012300

$4.25

SW1

Female Terminal

409010300

$4.00

SW1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

SW2

Female Terminal

409010300

$4.00

SW2

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

SW3

Female Terminal

710000038

$4.19

SW3

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

SW4

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

SW4

Open Barrel

278000992

$2.06

SWW

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

SWW

Terminal

710001931

$1.60

SWW

Housing Connector

710002003

$11.81

SWWRC

Female Terminal

278000223

$2.93

SWWRC

Wire Seal

278001065

$5.85

SWWRC

Male Housing, 3 Circuits

278000273

$8.72
