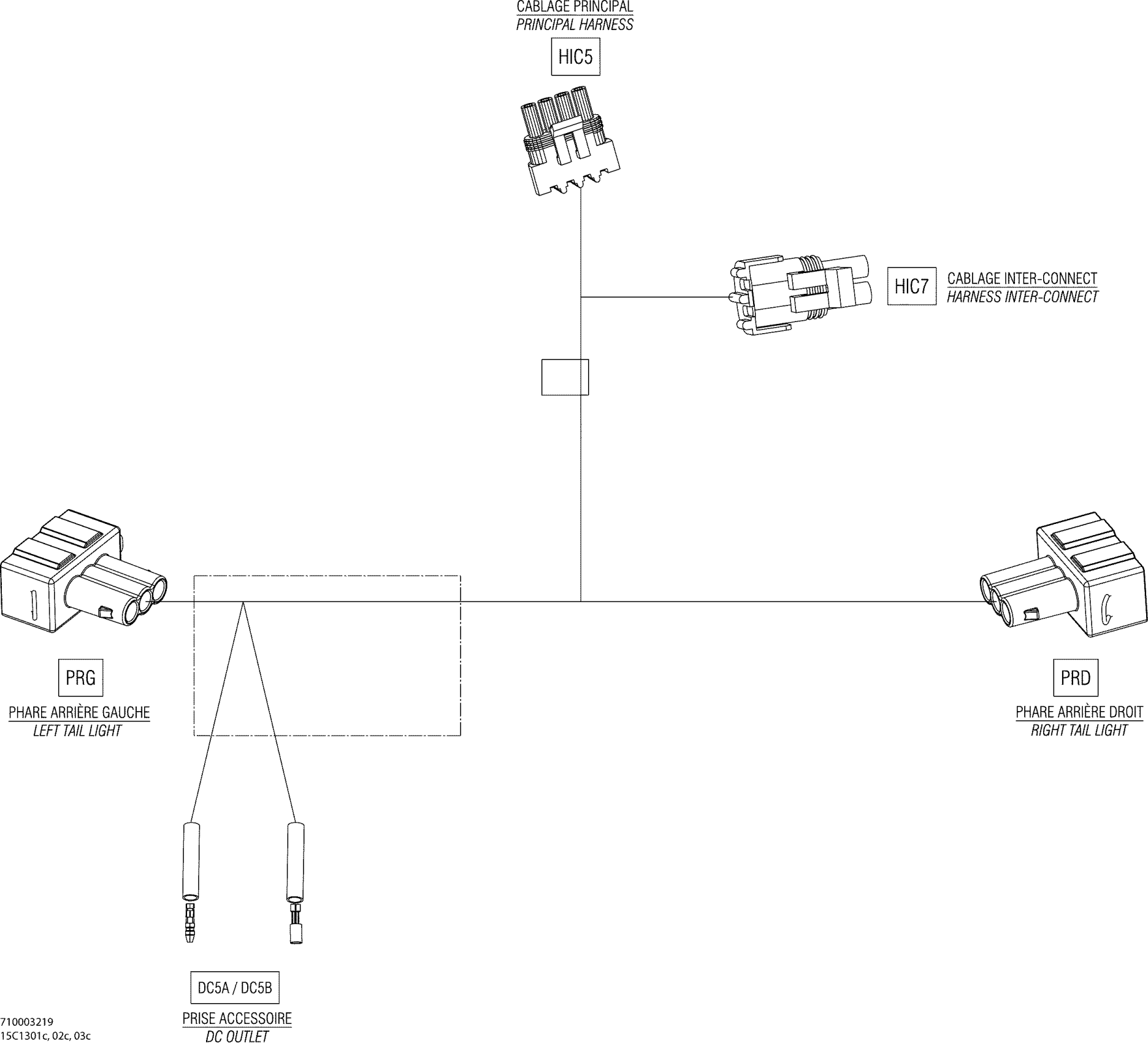

Can-Am Commander LTD 1000, 2013 Electrical Harness Rear, NA_Inter Diagram

Description

Price

Rear Harness | Except Europe

710003219

$152.28

504

Wire Seal

278001065

$6.03

DC5A

Insulated Sheath

278001008

$3.20

DC5A

Female Terminal

278002261

$6.20

DC5B

Insulated Sheath

278001007

$3.22

DC5B

Female Terminal

710000421

$5.46

DC5B

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

HIC5

Female Terminal

278000223

$2.55

HIC5

Male Housing, 4 Circuits

278000395

$15.02

HIC5

Wire Seal

278001065

$6.03

HIC7

Female Terminal

409007300

$0.36

HIC7

Male Connector, 2 Circuits

278000220

$11.02

HIC7

Wire Seal

278000218

$3.48

PRD

Female Terminal

278000998

$3.48

PRD

Seal

415128501

$1.51

PRD

Not Available As Spare Part - Friction Washer

Unavailable

PRG

Female Terminal

278000998

$3.48

PRG

Not Available As Spare Part - Friction Washer

Unavailable
