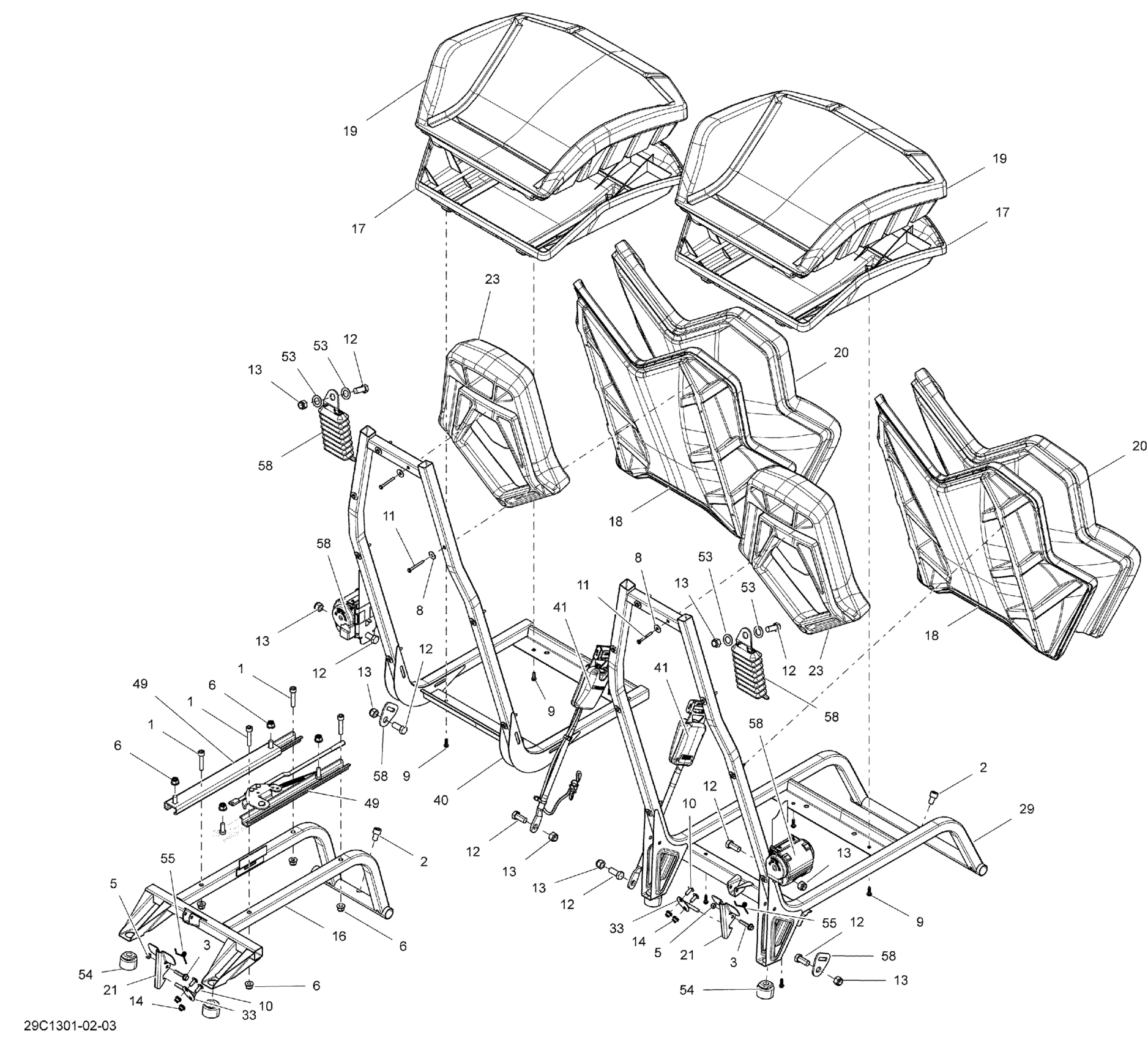

Can-Am Commander LTD 1000, 2013 Seat Diagram

#

Description
Price

1

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

2

Socket Screw M10 X 16

205501644

$3.88

3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

5

Hex. Elastic Stop Nut M6

232561600

$1.06

6

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Stainless Steel Flat Washer

234062670

$2.00

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

10

Torx Screw M6 X 16

250000223

$2.00

11

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

12

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

13

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

14

Threaded Insert M6 X 1.0

250100242

Unavailable

16

Seat Member

708000667

$56.99

17

KIT CUSHION ASS'Y., LTD - Call your local BRP dealership

703500941

Unavailable

18

KIT BACKREST ASS'Y, LTD - Call your local BRP dealership

703500944

Unavailable

19

Cover Seat, LTD Model

708001099

$117.99

20

BACKREST COVER LTD - Call your local BRP dealership

708000935

Unavailable

21

Seat Latch

708001355

$2.59

23

HEAD REST - Call your local BRP dealership

708000711

Unavailable

29

Passenger Seat Frame

708000690

Unavailable

33

RETAINING ROD - Call your local BRP dealership

708001238

$11.99

40

Driver Seat Frame

708000739

Unavailable

41

Driver Buckle Side | Europe

708000856

Unavailable

41

Driver Buckle Side

708002061

$70.99

41

Passenger Buckle Side

708000844

$53.99

41

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

49

LH Rail

708000848

$52.99

49

RH RAIL - Call your local BRP dealership

708000846

Unavailable

53

Position Washer

708000891

$0.97

54

Rubber Bumper

708001671

$2.13

55

Spring

708000921

$0.96

58

SAFETY BELT - Call your local BRP dealership

708001108

Unavailable

58

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable
