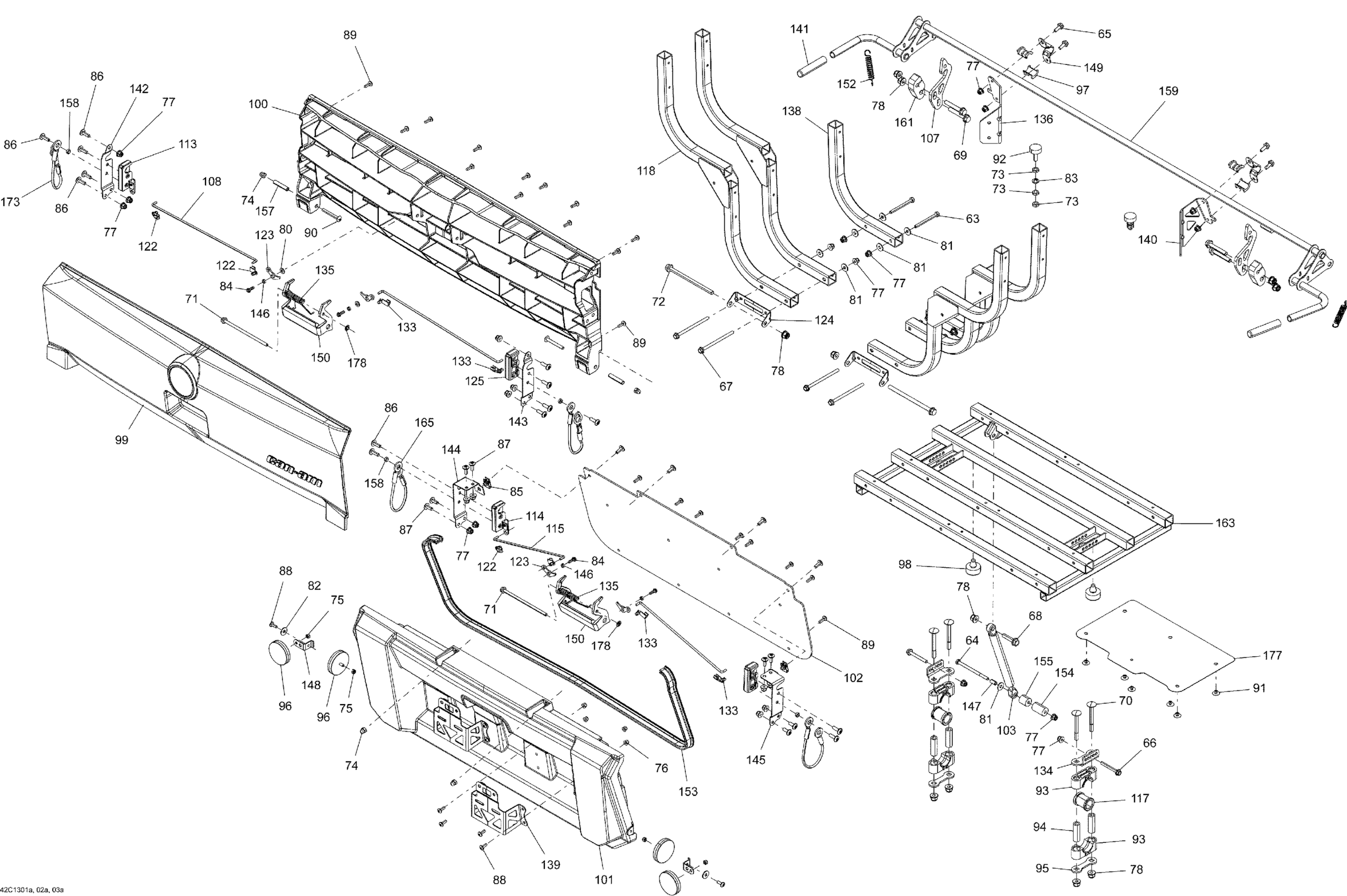

Can-Am Commander LTD 1000, 2013 Rear Cargo Box Doors Diagram

#

Description
Price

63

Hex. Screw M6 X 65

207066544

$0.46

64

Hex. Screw M6 X 90

207069044

$4.87

65

Hex. Flange Screw M6 X 16

207661644

$0.74

66

Hex. Flange Screw M6 X 50

207665044

$4.12

67

Hex. Flange Screw M6 X 95

207669584

$3.38

68

Hex. Flange Screw M8 X 35

207683544

$1.69

69

Hex. Flange Screw M8 X 45

207684586

$3.17

70

Carriage Bolt M8 X 70

207787044

$1.37

71

Hex. Flange Screw M6 X 130

230663084

$3.38

72

Hex. Flange Screw M8 X 130

230683034

$7.51

73

Hex. Jam Nut M8

232180600

$0.67

74

Domed Nut M6

232361493

$2.11

75

Elastic Stop Nut M5

232551414

$0.87

76

Not Available As Spare Parts

XXX

Unavailable

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

78

Hex. Flange Elastic Nut M8

233281414

$1.47

80

Flat Washer 6 mm

234061410

$1.36

81

Flat Washer 6 mm

234062410

$0.77

82

Stainless Steel Flat Washer

234062670

$2.11

83

Lock Washer 8 mm

234181401

$0.92

84

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

85

Panel Nut M6 X 1.0

250100198

$2.11

86

Torx Screw M6 X 20

250000722

$1.68

87

Torx Truss Screw M6 X 16

250000721

$1.69

88

Not Available As Spare Parts

XXX

Unavailable

89

Torx Screw K50 X 16

250000720

$1.69

90

Torx Truss Screw M6 X 50

250000749

$3.17

91

Pop Rivet 3/16"

293150103

$0.55

92

Frame Rubber Bumper

293720091

$9.39

93

Housing Half

506150400

$7.62

94

Housing Bushing

506150500

$7.99

95

Stopper Plate

506150600

$4.39

96

Red Reflector

705011221

$14.49

97

Half Ring

705500033

$8.29

98

Rubber Stopper

708000884

$6.89

99

MAGNESIUM OUTSIDE TOP PANNEL - Call your local BRP dealership

708300552

Unavailable

99

White Outside Top Pannel | White

708300672

$449.99

100

Inside Top Pannel

708300053

$139.99

101

Outside Bottom Pannel Ass'y

715002365

$154.99

102

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

103

Shock Kit

703500966

$34.99

107

Box Retainer

708300136

$8.69

108

Top Rod

708300160

$3.39

114

LH Latch

708300162

$23.99

114

RH Latch

708300201

$23.99

115

Lower Bottom Rod

708300164

$3.39

117

Pivot Bushing

708300172

$4.79

118

Black Welded Lateral Support

708300879

$49.99

122

LH Tie Rod Clip

708300182

$2.89

123

Activator

708300184

$9.29

124

Bracket Pivot

708300185

$4.79

125

RH Latch

708300201

$23.99

133

RH Tie Rod Clip

708300202

$2.89

134

Adjustable Stopper Plate

708300210

$4.79

135

Spring

708300219

$4.79

136

LH Latch Lever Support

708300278

$9.69

138

Black Lateral Support

708300877

$184.99

139

Not Available As Spare Parts

XXX

Unavailable

140

RH Latch Lever Support

708300351

$9.69

141

Cap Latch Lever

708300358

$6.59

142

LH Upper Support

708300359

$10.49

143

RH Upper Support

708300360

$9.49

144

LH Lower Support

708300361

$10.99

145

RH Lower Support

708300362

$9.69

146

Bushing

708300365

$5.89

147

Bushing

708300366

$5.89

148

Not Available As Spare Parts

XXX

Unavailable

149

Clamp Reatiner

708300392

$2.68

150

Handle

708300398

$13.99

152

Spring

708300454

$4.79

153

Was 293250240 Neoprene Seal

219704451

$60.49

154

Spacer

708300470

$7.73

155

SPACER - Call your local BRP dealership

708300471

Unavailable

157

Bushing

708300735

$13.49

158

Bushing

708300737

$5.99

159

Cargo Handle Ass'y

708300751

$72.99

161

Spacer

708300902

$9.69

163

Black Box Support

708300875

$309.99

165

Lower Retainer Cable

708300762

$16.99

173

Upper Retainer Cable

708300763

$33.99

177

Heat Deflector

708300780

$13.99

178

Push Nut

732610072

$2.19
