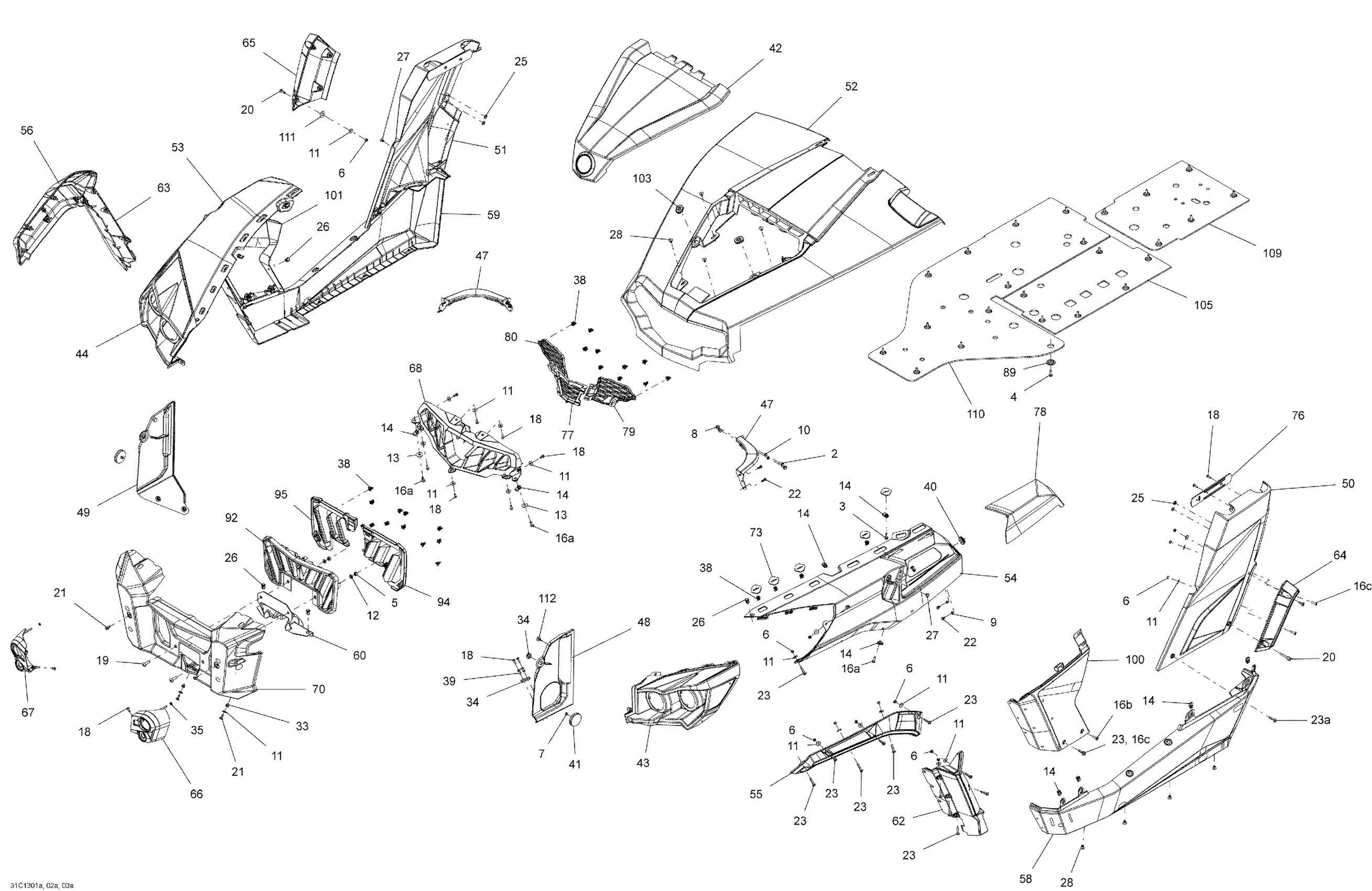

Can-Am Commander LTD 1000, 2013 Body And Accessories Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 16

207661644

$0.70

3

Hex. Flange Screw M6 X 20

207662044

$1.91

4

Hexagonal Head Screw

210262050

$2.00

5

Not Available As Spare Parts

XXX

Unavailable

6

Elastic Stop Nut M6

232561434

$1.78

7

Hex. Flange Elastic Nut M5

233251414

$1.91

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Flat Washer M5

234051410

$0.51

10

Stainless Flat Washer M6

234061600

$0.28

11

Stainless Steel Flat Washer

234062670

$2.00

12

Not Available As Spare Parts

XXX

Unavailable

13

Flat Washer 8 mm

234082410

$1.27

14

Panel Nut M6 X 1.0

250100198

$1.99

18

Torx Screw K50 X 16

250000720

$1.60

19

Not Available As Spare Parts

XXX

Unavailable

20

Torx Screw M6 X 45

250000215

$1.79

21

Torx Screw M6 X 16

250000755

$0.82

22

Truss Head Torx Screw K50 X 20

250000297

$2.00

23

Stainless, Torx Screw M6 X 30

250000842

$2.00

25

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

26

Tuflok Plastic Rivet

293150230

$1.39

27

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

28

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

33

Threaded Insert M6 X 1.0

250100242

Unavailable

34

Grommet

709000582

$4.25

35

Push Nut

389804300

$0.49

38

Edge Clip

517302785

$0.81

39

Knob

517303439

$4.28

40

Grommet

517303756

$3.61

41

Amber Reflector | Except Europe Model

705011222

$11.96

42

MAGNESIUM REMOVABLE HOOD - Call your local BRP dealership

705007076

Unavailable

42

PAINTED HYBRID WHITE HOOD - Call your local BRP dealership | White

705011739

Unavailable

43

LH Front Facia

705002885

$67.13

44

RH Front Facia

705002886

$67.13

47

Facia Front Support

705002891

$35.04

48

LH Deflector | XT

705005113

$14.90

49

RH Deflector

705002894

$17.88

50

MAGNESIUM LH REAR LATERAL PANNEL - Call your local BRP dealership

705006126

Unavailable

50

PANEL_BODY REAR L B-341 - Call your local BRP dealership | White

705006744

Unavailable

51

Panel_Body Rear R B-321

705011700

$479.07

51

PAINTED HYBRIB WHITE RH REAR PANEL - Call your local BRP dealership | White

705011694

$435.79

52

HOOD - Call your local BRP dealership

705009304

Unavailable

52

HOOD B-341 - Call your local BRP dealership | White

705006036

Unavailable

53

FRONT FENDER - Call your local BRP dealership

705009301

Unavailable

53

Painted Hybrid White Rh Front Fender | White

705011766

$368.63

54

FRONT FENDER - Call your local BRP dealership

705009299

Unavailable

54

FENDER FL B-341 - Call your local BRP dealership | White

705006774

$689.52

55

Black, LH Upper Front Mudguard | LTD

705008666

$34.86

56

Black, RH Upper Front Mudguard | LTD

705008667

$34.86

58

LH Middle Side Pannel | XT

705006993

$65.64

59

RH Middle Side Pannel | XT

705006994

$65.64

60

Not Available As Spare Parts

XXX

Unavailable

62

Black, LH Lower Mudguard | LTD

705008668

$34.86

63

Black, RH Lower Mudguard | LTD

705008669

$34.86

64

Black, LH Rear Lower Mudguard | LTD

705008670

$34.86

65

RH Rear Lower Black Mudguard | LTD

705008672

$34.86

66

LH FLASHER CAP - Call your local BRP dealership | Europe

705008676

Unavailable

67

RH Flasher Cap | Europe

705003628

$10.46

68

FASCIA UP B-160 - Call your local BRP dealership

705003629

$18.63

70

Black Front Facia

705008689

$91.76

73

Support Plate

705003841

$0.91

76

Support Plate

705004261

$11.81

77

Center Upper Facia Protector

705004336

$3.91

78

CVT INLET COVE - Call your local BRP dealership

705009302

Unavailable

78

COVER_AIR INLET FL B-341 - Call your local BRP dealership | White

705006054

Unavailable

79

LH Upper Facia Protector

705004350

$3.91

80

RH Upper Facia Protector

705004351

$3.91

89

Cup | Package Hunter

705007171

$6.00

92

Lower Front Facia Protector

705004755

$16.39

94

LH Lower Rear Facia Protector

705004819

$16.39

95

RH Lower Rear Facia Protector

705004820

$16.39

100

PANEL_BODY FL B-341 - Call your local BRP dealership | White

705006037

$303.70

100

LEFT PANEL - Call your local BRP dealership

705009306

Unavailable

101

PANEL_BODY FR B-341 - Call your local BRP dealership | White

705006059

Unavailable

101

MAGNESIUM RH FRONT LATERAL PANNEL - Call your local BRP dealership

705006383

Unavailable

103

Oval Washer

705005156

$4.70

105

LH PROTECTOR PLATE - Call your local BRP dealership

705007883

Unavailable

109

Rear Protector Plate

705007227

$29.82

110

RH PROTECTOR PLATE - Call your local BRP dealership

705006075

Unavailable

111

Hardened Washer

706200281

$2.69

112

Rubber Stopper

708000759

$4.15

16a

Torx Screw M6 X 20

250000722

$1.54

16b

Torx Truss Screw M6 X 20

250000350

$5.04

16c

Torx Truss Screw M6 X 20

250000488

$2.00

16c

Torx Truss Screw M6 X 20

250000488

$2.00

23a

Torx Truss Screw M6 X 30

250000843

$2.00
