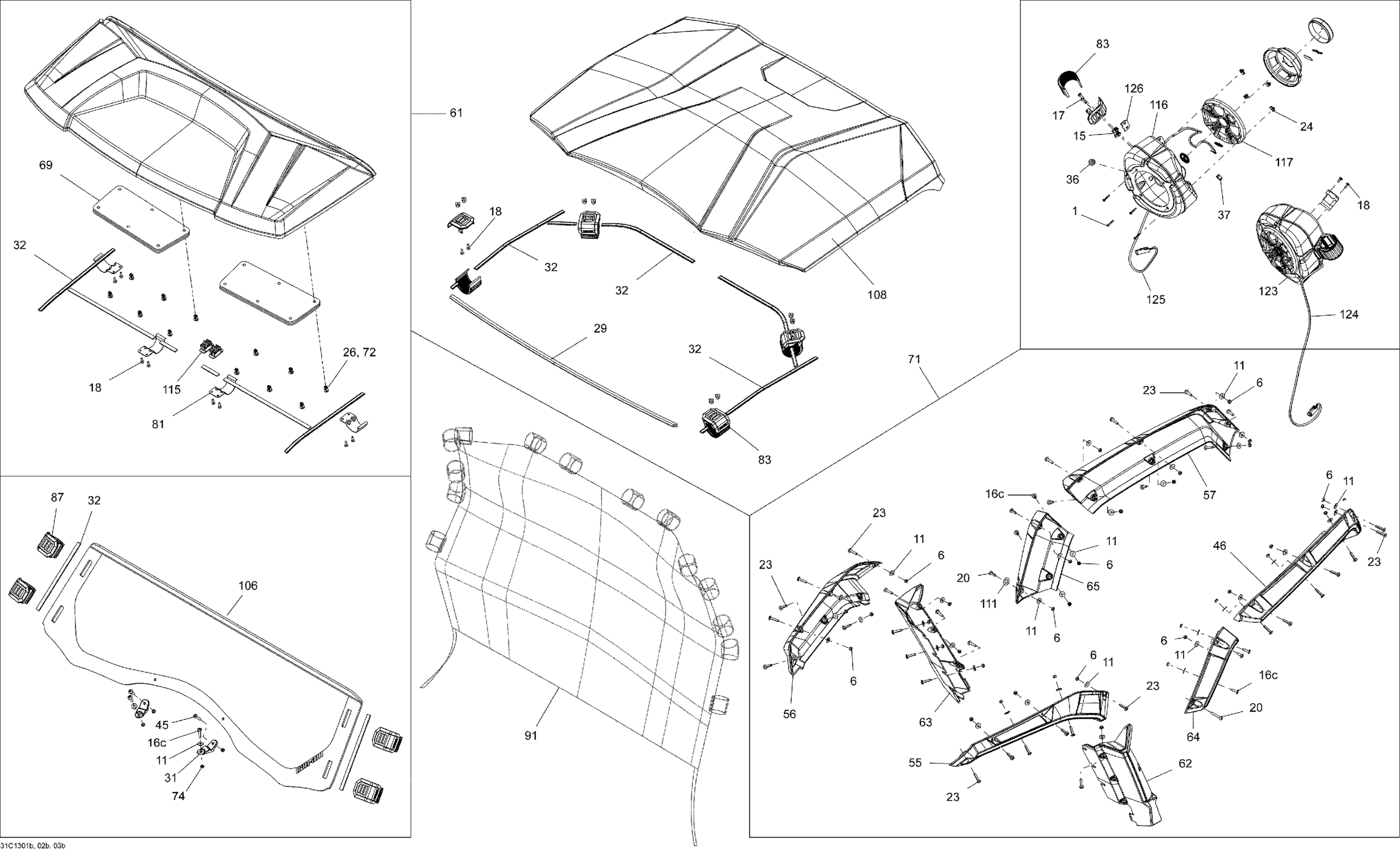

Can-Am Commander LTD 1000, 2013 Body And Accessories Kit Diagram

#

Description
Price

1

Socket Head Screw M4 X 25

205042560

$1.85

6

Elastic Stop Nut M6

232561434

$1.55

11

Stainless Steel Flat Washer

234062670

$1.74

15

Panel Nut M5 X 0.8

250000958

$3.48

16c

Torx Truss Screw M6 X 20

250000488

$1.74

16c

Torx Truss Screw M6 X 20

250000488

$1.74

17

Torx Screw M5 X 20

250000724

$1.39

18

Torx Screw K50 X 16

250000720

$1.39

20

Torx Screw M6 X 45

250000215

$1.56

23

Stainless, Torx Screw M6 X 30

250000842

$1.74

24

Extruded Panel Nut M4 X 0.7

250100143

$6.77

26

Tuflok Plastic Rivet

293150230

$1.21

29

Seal Tray 1000Mm Long

219704368

$12.91

31

Windshield Support | LTD

705005776

$12.91

32

Gasket, Neoprene 2000Mm Long

219704476

$12.64

36

Grommet

414036300

$2.22

37

Clip

414227300

$1.45

45

Torx Screw M6 x 25

250000284

$1.74

46

LH Upper Rear Mudguards | LTD

705008671

$38.56

55

Black, LH Upper Front Mudguard | LTD

705008666

$38.56

56

Black, RH Upper Front Mudguard | LTD

705008667

$38.56

57

RH Upper Rear Mudguards | LTD

705008673

$38.56

61

ROOF VISOR ASS. - Call your local BRP dealership

705005669

Unavailable

62

Black, LH Lower Mudguard | LTD

705008668

$38.56

63

Black, RH Lower Mudguard | LTD

705008669

$38.56

64

Black, LH Rear Lower Mudguard | LTD

705008670

$38.56

65

RH Rear Lower Black Mudguard | LTD

705008672

$38.56

69

VISOR POCKET - Call your local BRP dealership | LTD

280000496

Unavailable

71

FENDER EXTENSION KIT - Call your local BRP dealership | Includes 80 to 87

715002451

Unavailable

72

VISOR FASTENER KIT - Call your local BRP dealership | LTD

705005658

Unavailable

74

Hex. Flange Elastic Nut M6

233261494

$1.26

81

U Brace Strip | LTD

705009030

$18.43

83

Retainer Velcro Perforated

705013420

$40.74

87

Retainer Velcro Perforated

705013420

$40.74

91

Rear Net Wind Deflector Ass'y

715001193

$133.82

106

Windshield Half Ass'y

703501024

$369.20

108

MID ROOF KIT - Call your local BRP dealership

705005670

Unavailable

111

Hardened Washer

706200281

$2.34

115

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

116

RH Speaker Box Ass'y

710002839

$141.51

117

Speaker

710002838

$163.05

123

LH Speaker Box Ass'y

710002837

$141.51

124

Speaker Harness

710004341

$109.97

125

Speaker Harness

710004341

$109.97

126

M5 Support Plate

710002946

$7.37
