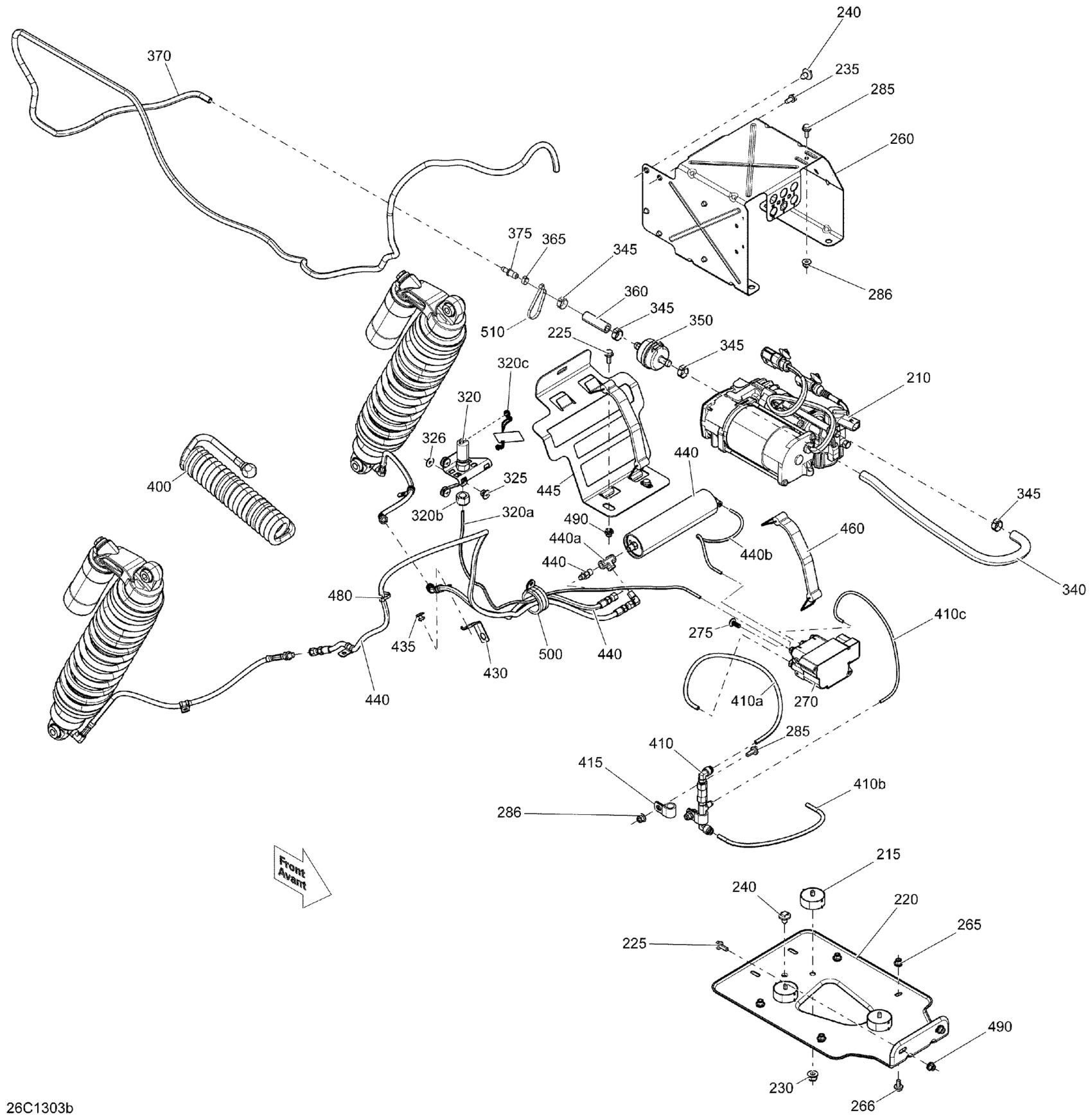

Can-Am Commander LTD 1000, 2013 Rear Suspension Except Europe_Compressor Diagram

#

Description
Price

210

COMPRESSOR - Call your local BRP dealership

706001100

Unavailable

210a

Solenoid Valve

706001104

Unavailable

210b

Pressure Connector 4mm

715900198

$9.23

210c

PRESSURE CONNECTOR 6MM - Call your local BRP dealership

715900199

Unavailable

215

RUBBER MOUNT - Call your local BRP dealership

706001127

Unavailable

220

LOWER SUPPORT - Call your local BRP dealership

706001121

Unavailable

225

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

230

Hex. Flange Elastic Nut M8

233281414

$1.14

235

Hex. Flange Screw M6 X 12

210261250

$1.56

240

Mount Dart

293730040

$0.86

260

UPPER SUPPORT - Call your local BRP dealership

706001120

Unavailable

265

Threaded Insert M6 X 1.0

250100242

Unavailable

266

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

270

Solenoid Valve

706001104

Unavailable

275

Oval Head Torx Screw K60 X 16

250000546

$1.74

285

Hex. Flange Screw M6 X 16

207661644

$0.61

286

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

320

BRACKET ASS'Y - Call your local BRP dealership

706001873

Unavailable

320a

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

320b

Hex. Nut With Nylon 1/2" X 20

250100124

$7.28

320c

O-Ring

414811400

$6.34

325

Pop Rivet 3/16"

390406500

$0.70

326

Washer

517124300

$0.16

340

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

345

Crimp Clamp

293650053

$2.42

350

Air Filter

706001141

$32.28

360

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

365

Clamp, Oetiker

293650195

$1.37

370

Polyurethane Hose 10000Mm Long

219704410

$46.12

375

Straight Fitting

293710035

$8.63

400

Auxiliary Hose

706000808

$101.51

410

PRESSURE DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001144

Unavailable

410a

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$9.72

410b

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$9.72

410c

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

415

Open Clamp

705600040

$12.91

430

Bracket

705601337

$2.69

435

Pop Rivet 3/16"

390406500

$0.70

440

Rear Shock Distributor

706001751

$281.51

440a

T-FITTING - Call your local BRP dealership

706000806

Unavailable

440b

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

455

TANK BRACKET - Call your local BRP dealership

706201524

Unavailable

460

Battery Strap

515176044

$14.27

480

Tie Wrap 142 mm

293750002

$0.88

490

Threaded Insert M6 X 1.0

250100242

Unavailable

500

Hose Retainer

293650218

$8.45

510

Tie-Rap 180 mm

414115200

$0.09
