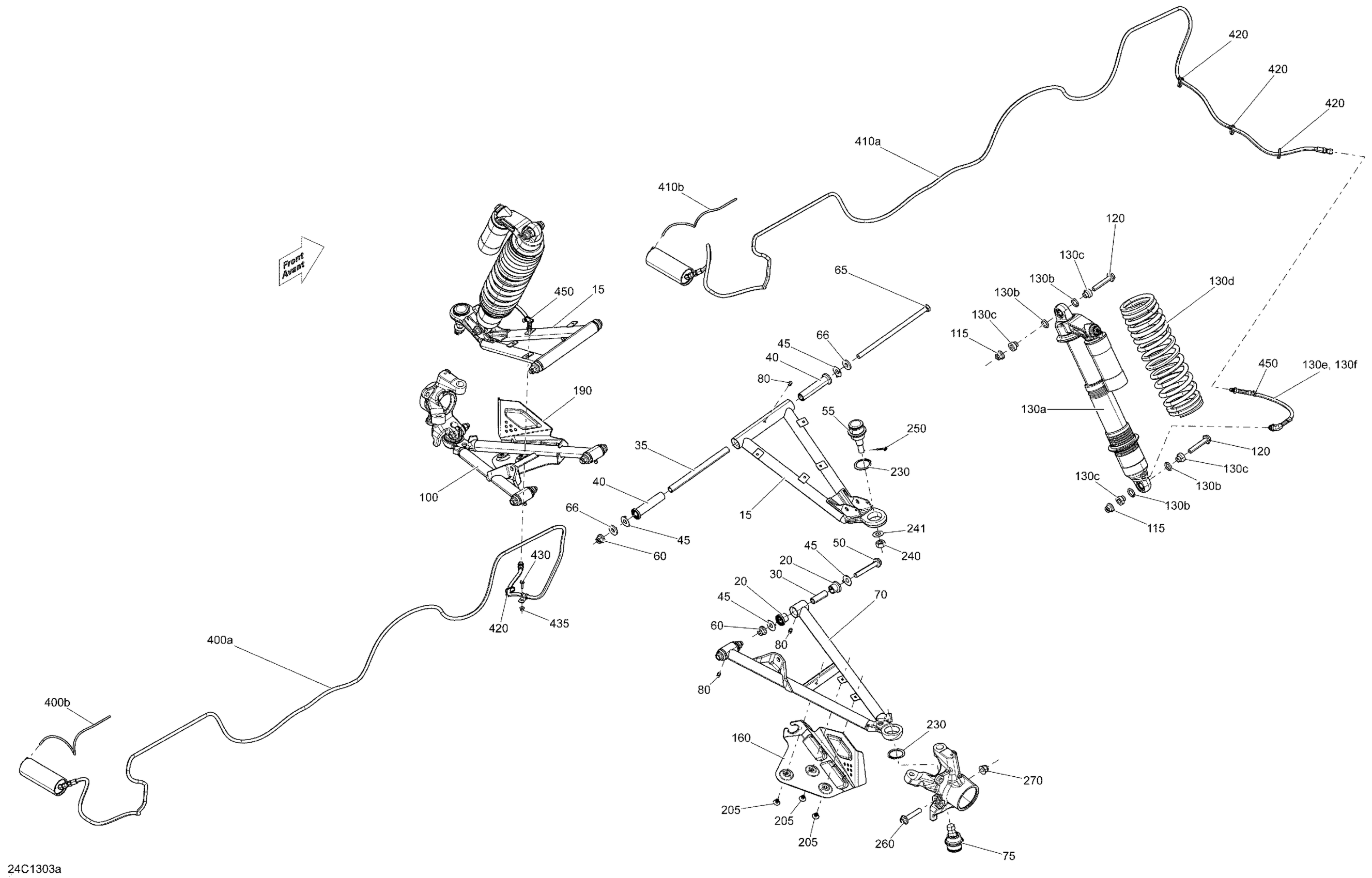

Can-Am Commander LTD 1000, 2013 Front Suspension Except Europe Diagram

#

Description
Price

15

Suspension Upper Arm

706200796

$184.58

20

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

30

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

35

Bushing

706202445

$16.89

40

Cushion

706201062

$4.60

45

Wear Plate

706201063

$0.89

50

Hex. Flange Screw M10 X 70

207607046

$2.91

55

Ball Joint

706202044

$35.14

60

Hex. Flange Elastic Nut M10

233201436

$1.74

65

Hex. Cap Screw M10 X 225

250001032

$9.49

66

Washer

503190439

$5.82

70

RH Lower Suspension Arm

706200744

$184.58

75

Ball Joint

706202045

$35.35

80

Grease Fitting

408200700

$2.80

100

LH Lower Suspension Arm

706200742

$184.58

115

Hex. Flange Elastic Nut M10

233201436

$1.74

120

Hex. Flange Screw M10 X 55

207605544

$2.78

130a

Front Shock

706201364

$804.58

130b

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$9.89

130c

Interior Bushing | OUT XTP

715500361

$27.66

130d

BLACK SPRING - Call your local BRP dealership

706201473

Unavailable

130e

Front Hose Ass'y

706202444

$78.43

130f

Clamp

293650256

$4.36

160

RH Protector

706201670

$17.66

190

LH Protector

706201669

$17.66

205

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

230

Circlip

293370035

$2.55

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

260

Hex. Flange Screw M10 X 50

207605044

$4.39

270

Hex. Flange Elastic Nut M10

233201414

$1.26

400a

LH Hose Ass'y

706201997

$166.12

400b

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

410a

RH Hose Ass'y

706201999

$166.12

410b

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

420

Tie Wrap 142 mm

293750002

$0.88

430

Hex. Forming Screw M5 X 16

210251650

$0.92

435

Elastic Flange Nut M5

233251494

$1.74

450

Tie-Rap 180 mm

414115200

$0.09
