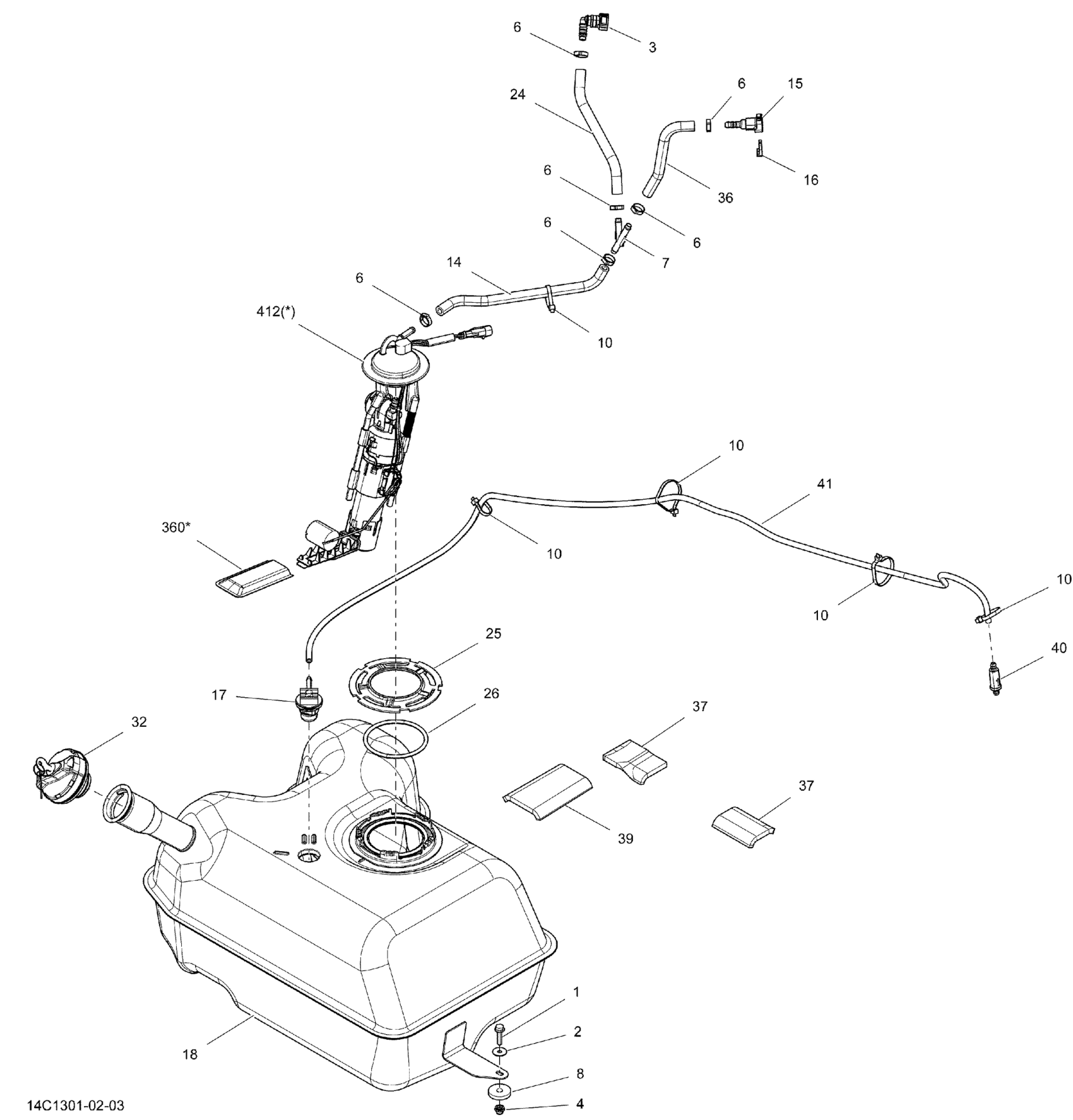

Can-Am Commander LTD 1000, 2013 Fuel System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662544

$0.61

2

Flat Washer

224060201

$1.12

3

Quick Attach 90°

275500700

$14.48

4

Threaded Insert M6 X 1.0

250100242

Unavailable

6

Oetiker Clamp

293650046

$2.67

7

Y-Fitting, 5/16''

293710136

$5.76

8

Rubber Washer

293830037

$2.68

10

Tie-Rap 180 mm

414115200

$0.10

14

Was 709000163 Fuel Line

219704440

$25.34

15

Female Quick Fitting Ass'y

709000125

$12.76

16

Locking Clip

513033135

$4.96

17

Rollover Valve

709000413

$50.72

18

Fuel Tank

709000753

Unavailable

24

Was 709000163 Fuel Line

219704440

$25.34

25

Ring

709000274

$14.40

26

O-Ring

709000275

$15.64

32

Fuel Cap | Except Europe

709000529

$28.18

36

Was 709000163 Fuel Line

219704440

$25.34

37

Neoprene Pad

709000288

$12.49

39

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

40

Filter

709000330

$7.48

41

Polyurethane Hose 10000Mm Long

219704410

$52.96

360

Fuel Pre-Filter Kit

709000389

$73.85

412

Fuel Pump | Includes 5 to 6

709000759

$353.87
