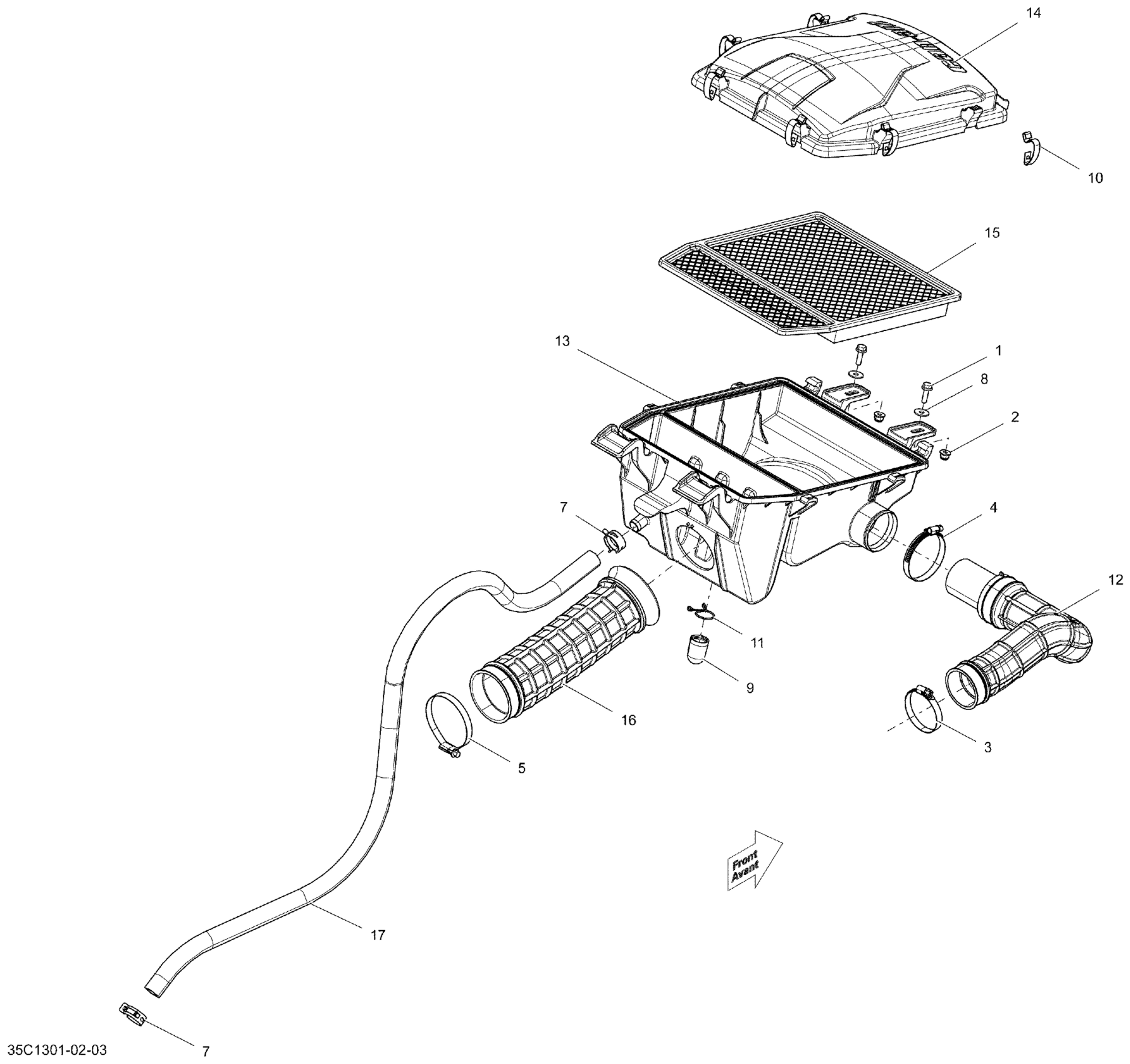

Can-Am Commander LTD 1000, 2013 Air Intake Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.91

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

Norma Clamp

293650077

$7.01

4

Norma Clamp

293650079

$10.21

5

Norma Clamp

293650091

$10.54

7

Norma Spring Clamp

293650213

$3.01

8

Flat Washer

250200082

$0.40

9

Drain Tube

707800080

$6.99

10

Cover Bracket

707800249

$7.67

11

Retainer Clip

707800278

$12.30

12

Intake Adaptor

707800322

$55.19

13

Air Intake Silencer Base

707800517

$49.22

14

Air Intake Silencer Cover

707800326

$29.82

15

Air Filter

707800327

$49.22

16

Intake Adaptor

707800329

$43.25

17

Was 707800411 Hose 15.88 mm

219704438

$11.57
