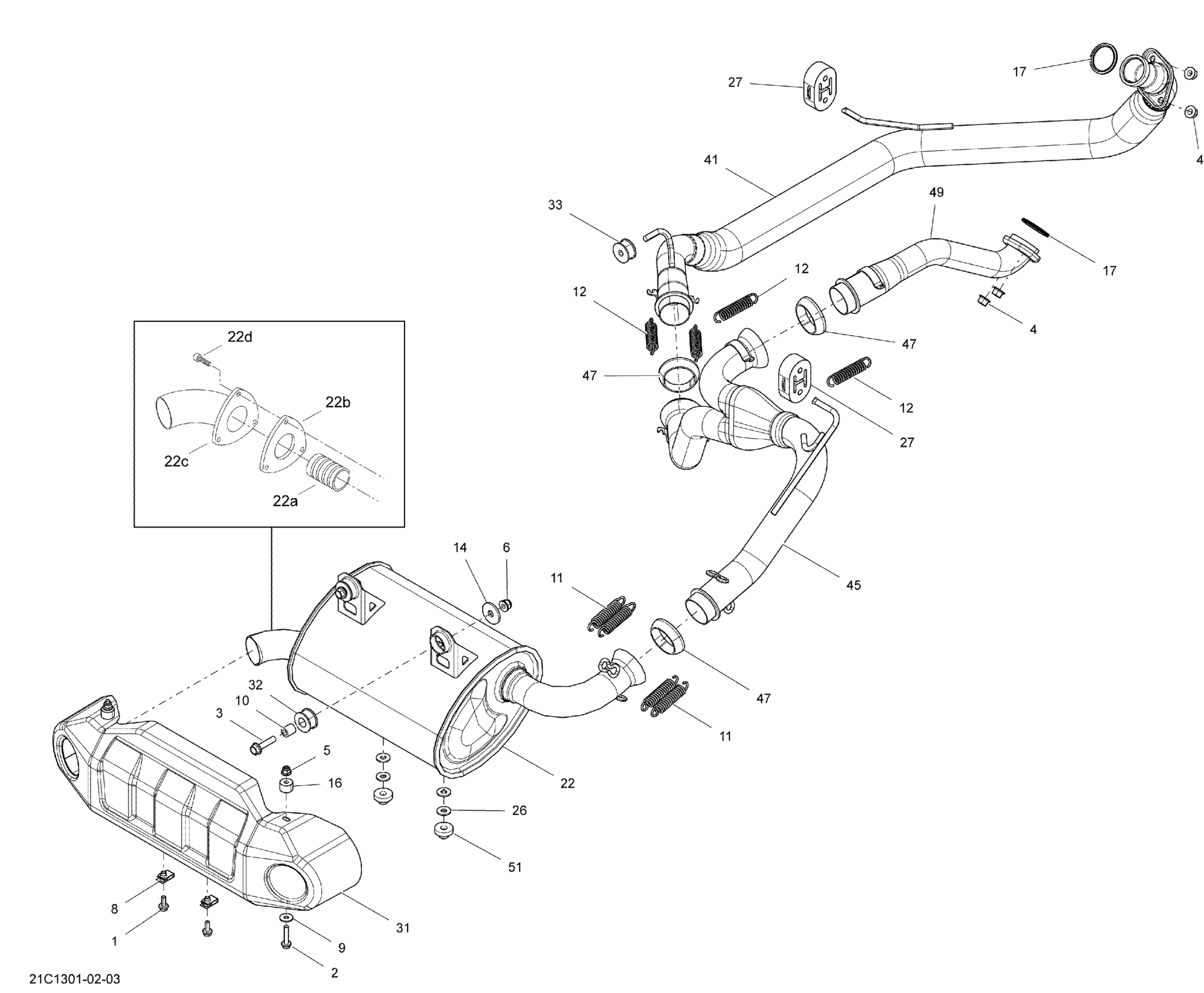

Can-Am Commander LTD 1000, 2013 Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

3

Hex. Flange Screw M8 X 35

207683544

$1.39

4

Hex. Flange Nut M8

233081416

$1.63

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Panel Nut M6 X 1.0

250100198

$1.73

9

Flat Washer

250200082

$0.35

10

Bushing

293900106

$4.42

11

Spring

415107100

$6.20

12

Spring

415107100

$6.20

14

Washer

503032900

$3.20

16

Bushing

707000882

$3.85

17

Gasket

707600317

$10.52

22

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 12 to 16

707600545

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Rubber Bumper

707600638

$14.37

31

Deflector

707600675

$41.51

32

Vibration Damper

707603323

$11.98

33

Anti-Vibration Rubber

707600702

$8.34

41

Front Head Pipe

707601013

$258.43

45

Link Head Pipe

707601020

$258.43

47

Exhaust Gasket

707601033

$13.29

49

Rear Head Pipe

707601016

$258.43

51

Grommet

709200285

$7.09

22a

Spark Arrestor

707601803

$50.74

22b

Gasket

715900090

$11.83

22c

Muffler Outlet End Piece

715900091

$36.89

22d

Socket Head Screw M6 X 20

205062060

$1.92
