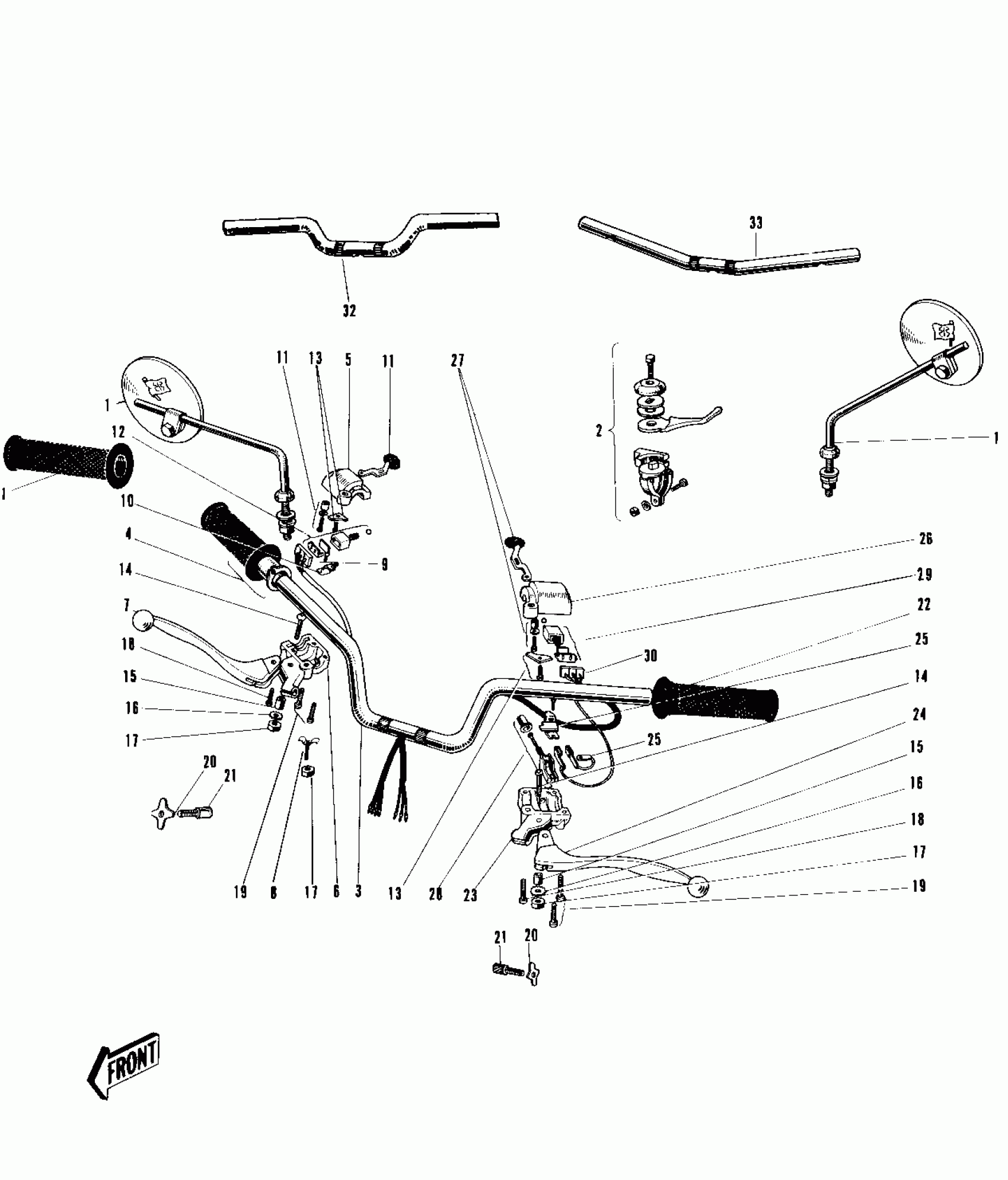

Kawasaki Commander HANDLEBAR (W2SS/W2TT) (LATE PRODUCTION) Diagram
#
1
REAR VIEW MIRROR
56001-005
$12.32
2
LEVER ASSY-AIR SHUTT
46109-007
$9.14
3
HANDLEBAR
46003-015
$207.66
4~21
GRIP ASSY-R.H
46017-042
Unavailable
4
GRIP ASSY THROTTLE
46019-005
Unavailable
5
GRIP-ASSY,RH
46017-1071
Unavailable
6
CASE R.H SWITCH LOWER
46022-012
Unavailable
7
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
8
SPRING THROTTLE GRIP
46024-001
Unavailable
8
SPRING THROTTLE GRIP
46024-002
Unavailable
9
WIRING HARNESS R.H SW
46032-010
Unavailable
10
HOLDER R.H SWITCH
46037-009
$3.96
11
KNOB ASSY R.H SWITCH
46043-002
Unavailable
12
SLIDE BLOCK AY R.H SW
46045-004
Unavailable
13
HOLDER WIRING HARNESS
46085-012
Unavailable
14
BOLT HEX HEAD 5X20
92007-018
Unavailable
14
BOLT HEX HEAD 5X20
92007-020
Unavailable
15
COLLAR LEVER
46059-005
Unavailable
15
COLLAR LEVER
46059-011
Unavailable
16
WASHER LOCK 5MM
464H0500
$1.86
17
NUT-HEX,5MM
312B0500
$0.46
17
NUT-HEX,5MM
312B0500
$0.46
18
SCREW-PAN-CROS
220B0518
$4.62
18
SCREW-PAN-CROS
220B0518
$4.62
19
SCREW-PAN-CROS
220B0520
$0.68
19
SCREW-PAN-CROS
220B0520
$0.68
20
NUT LOCK ADJUST SCREW
46056-001
Unavailable
21
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
14~29
GRIP ASSY L.H
46074-040
$108.20
22
RUBBER L.H GRIP
46075-007
Unavailable
23
CASE L.H SWITCH LOWER
46077-008
Unavailable
24
LEVER-GRIP,CLUTCH
46092-015
Unavailable
25
HOLDER L.H SWITCH
46085-008
Unavailable
26
CASE L.H SWITCH UPPER
46086-007
Unavailable
27
KNOB ASSY L.H SWITCH
46088-001
Unavailable
28
SWITCH ASSY LH BUTTON
46078-003
$9.20
29
SLIDE BLOCK AY L.H SW
46089-002
Unavailable
30
WIRING HARNESS L.H SW
46082-011
$19.35
31
RUBBER R.H GRIP
46061-009
Unavailable
32
UNAVAILABLE IN PRICE BOOK
46006-005
Unavailable
33
UNAVAILABLE IN PRICE BOOK
46005-004
Unavailable
