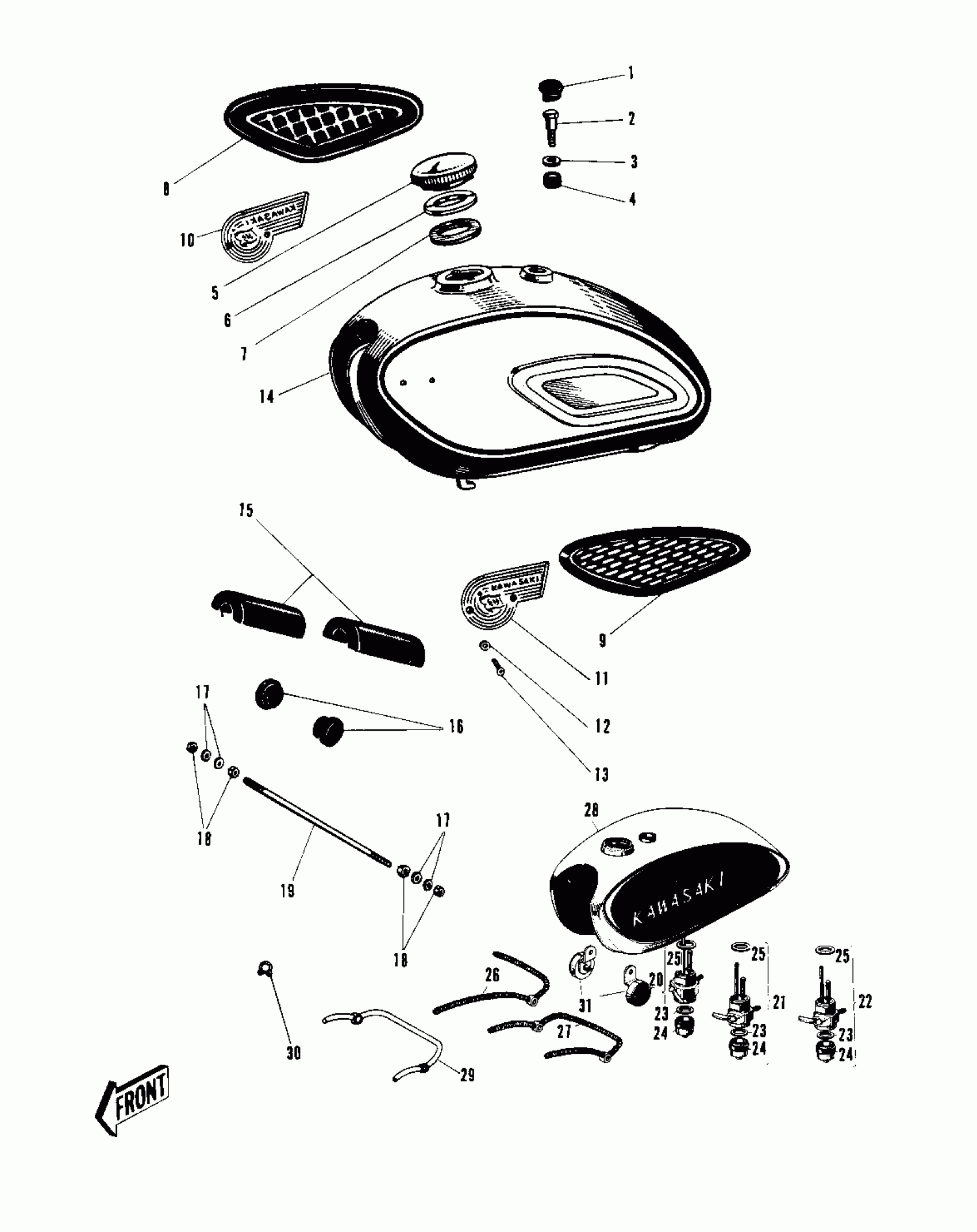

Kawasaki Commander FUEL TANK Diagram
#
Description
Price
1
CAP FUEL TNK FIT HOLE
51066-001
Unavailable
2
BOLT FUEL TANK FIT
92001-025
Unavailable
3
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
4
DAMPER RUBB TANK BOLT
92075-033
Unavailable
5,6
CAP FUEL TANK
51049-008
Unavailable
7
GASKET-FUEL TANK CAP
51059-007
$3.90
8
GRIP KNEE R.H
51062-008
Unavailable
9
GRIP KNEE L.H
51061-009
Unavailable
10
EMBLEM FUEL TANK R.H
56014-010
Unavailable
11
EMBLEM FUEL TANK L.H
56013-009
Unavailable
12
SPACER FL TANK EMBLEM
56025-002
Unavailable
13
SCREW-PAN-CROS,4X8
220E0408
$3.30
13
SCREW-PAN-CROS,4X8
220E0408
$3.30
14
TANK FUEL C.RED
51001-024-24
Unavailable
14
TANK FUEL BLACK
51001-021-10
Unavailable
14
TANK FUEL C.BLUE
51001-024-27
Unavailable
14
UNAVAILABLE IN PRICE BOOK
51001-024-10
$115.97
14
TANK FUEL C.RED
51001-024-24
Unavailable
14
TANK FUEL C.BLUE
51001-024-27
Unavailable
15
MAT FUEL TANK
51067-002
Unavailable
16
DAMPER RUBB FUEL TANK
92075-032
Unavailable
17
WASHER PLAIN 6MM
411B0600
$2.84
18
NUT 6MM
311B0600
$0.93
19
BOLT SHOCK DAMPER
92091-012
Unavailable
20
FUEL COCK ASSY
51023-008
Unavailable
23
GASKET FUEL COCK CUP
51037-007
$3.71
24
CUP FUEL COCK
51036-003
$5.03
25
GASKET FUEL COCK JONT
51032-001
$7.48
27
PIPE FUEL
51044-019
Unavailable
