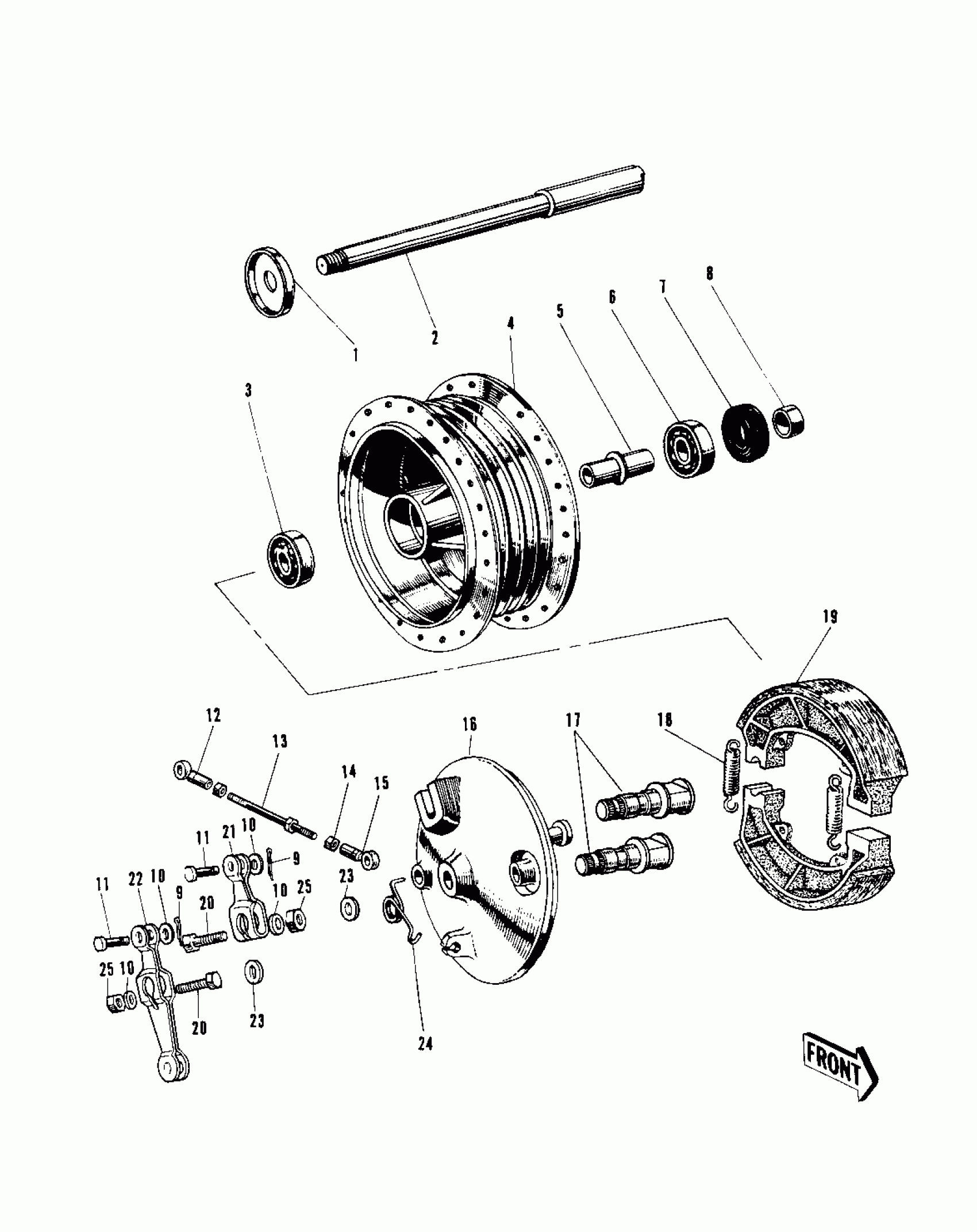

Kawasaki Commander FRONT HUB/BRAKE (-E/NO.54589) Diagram

#

Description
Price

1

DUST SHIELD FRONT HUB

41042-005

Unavailable

2

AXLE FRONT

41068-020

Unavailable

2

AXLE FRONT

41068-020

Unavailable

3~7

UNAVAILABLE IN PRICE BOOK

41034-011

$108.26

3

BEARING BALL #6303Z

601B6303Z

$24.50

5

UNAVAILABLE IN PRICE BOOK

41039-010

$13.40

6

BEARING-BALL,#6303C3

601B6303

$8.29

7

OIL SEAL FRONT AXLE

654A254708

$29.28

8

COLLAR AXLE OIL SEAL

41069-009

$10.17

9~25

UNAVAILABLE IN PRICE BOOK

41035-016

$263.22

9

PIN COTTER 1.2X10

550D1210

$2.65

10

WASHER PLAIN 6MM

411B0600

$2.84

11

PIN BRAKE CONNECT ROD

41055-003

$9.02

12

ROD END BRK CONNECT B

41058-007

$7.38

12

ROD END BRK CONNECT B

41058-003

Unavailable

12

ROD END,BRK CONNECT

41058-009

Unavailable

13

ROD BRK CAM LEV CONCT

41057-013

Unavailable

13

ROD BRK CAM LEV CONCT

41057-003

$18.83

13

ROD BRK CAM LEV CONCT

41057-011

Unavailable

14

NUT 6MM

311B0600

$0.93

14

NUT-HEX

311B0500

$0.47

14

NUT-HEX

311B0500

$0.47

15

ROD END BRK CONNECT A

41058-006

$6.28

15

ROD END BRK CONNECT A

41058-002

$15.77

15

ROD END,BRK CONNECT

41058-008

Unavailable

17

CAM SHAFT FRONT BRAKE

41050-007

$44.03

17

SPRING,BRAKE SHOE

41049-012

$9.49

19

SPRING,BRAKE SHOE

41049-012

$9.49

20

BOLT-UPSET

112G0630

$1.36

21

LEVER FRT BRK CAM 2ND

41053-012

Unavailable

22

LEVER FRT BRK CAM 1ST

41053-011

Unavailable

23

SEAL,BRAKE CAM

41051-001

$4.26

24

SPRING FR BRK CAM LEV

41056-002

Unavailable

25

NUT 6MM

311B0600

$0.93
