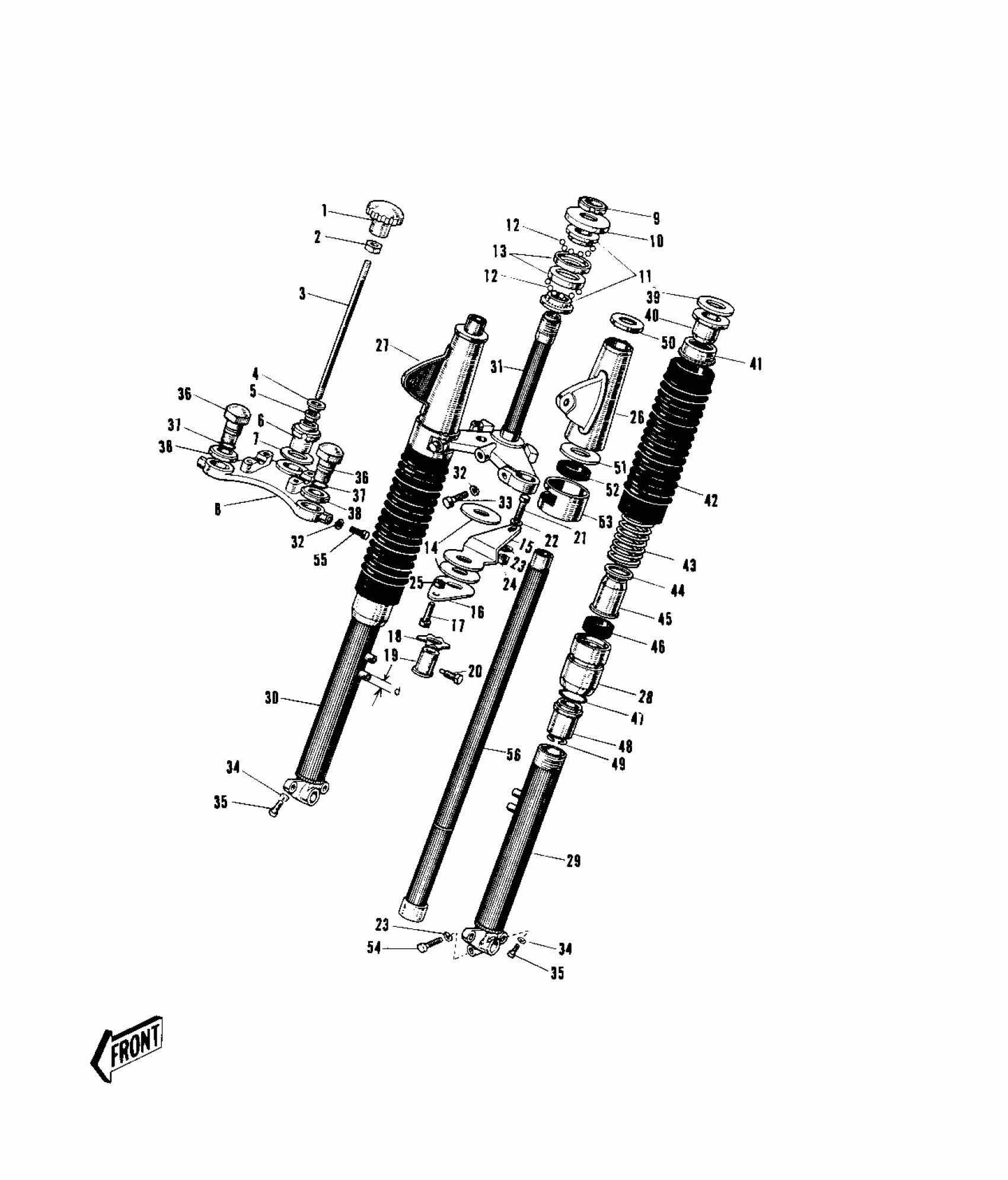

Kawasaki Commander FRONT FORK (W1/W1SS/W2SS) (-F/NO.6868) Diagram
#
1
KNOB STEERING DAMPER
46101-001
$7.52
2
NUT STEERING DAMP LCK
92016-001
$1.52
3
ROD STEERING DAMPER
46102-002
$5.54
4
WASHER STRNG DAMP NUT
46108-001
Unavailable
5
BUSH STRNG DAMPER ROD
46103-001
Unavailable
6
NUT STEERING STEM
92090-011
$13.60
7
WASHER STEERING STEM
92097-002
$7.31
8
HEAD STEERING STEM
44039-020
$115.49
9
NUT STEERING STEM LCK
92090-010
Unavailable
10
CAP STEERING STEM
46098-007
Unavailable
11
CONE STRNG STEM BERNG
92047-007
Unavailable
12
BALL-STEEL,1/4
600A0800
$0.62
13
RACE STRNG STEM BERNG
92048-007
Unavailable
14
DISC STRNG DAMP FRCTN
46104-002
$6.51
15
STOPPER STEERING DAMP
46105-002
$11.81
16
DISC STRNG DAMP STEEL
46106-002
$8.06
17
BOLT-UPSET
112G0625
Unavailable
17
BOLT-UPSET
112G0625
$3.62
18
SPRING-STEERING DAMP
46124-006
Unavailable
19
SLEEVE STRNG DAMPER
46125-002
$20.59
20
BOLT STEERING DAM SLV
92001-042
$1.53
21
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
22
WASHER PLAIN 8MM
410B0800
$0.93
23
WASHER SPRING 8MM
461F0800
$0.40
24
NUT,8MM
311B0800
$0.67
25
NUT,8MM
311B0800
$0.67
26~56
FRONT FORK ASSY
44004-013
Unavailable
26~56
UNAVAILABLE IN PRICE BOOK
44001-033
$489.55
26
COVER L.H FORK
44033-019
$92.15
27
COVER R.H FORK
44034-018
$73.90
28
NUT FORK OUTER TUBE
44007-014
$37.65
29
TUBE L.H OUTER
44005-018
Unavailable
29
TUBE,LH,FORK OUTER
44005-019
Unavailable
30
TUBE,RH,FORK OUTER
44006-017
Unavailable
30
TUBE,RH,FORK OUTER
44006-017
Unavailable
31
STEM-STEERING,BLACK
44037-018-10
$145.92
32
WASHER SPRING 10MM
461F1000
$0.67
33
BOLT,10X28
113G1028
$5.98
34
GASKET,FORK DRAIN PLUG
44045-002
$5.18
35
SCREW PAN HEAD 4X8
220B0408
$0.67
35
SCREW PAN HEAD 4X8
220B0408
$0.67
36
BOLT FORK FIT
44041-025
Unavailable
37
'O' RING FORK FIT BLT
44046-013
Unavailable
38
WASHER FORK FIT BOLT
44043-028
$7.52
39
WASHER FORK COVER
44032-002
$1.17
40
GUIDE SPRING
44028-014
Unavailable
41
HOLDER FORK BOOT UPP
44035-002
Unavailable
42
DUST SHIELD FORK SPRG
44027-009
Unavailable
43
SPRING FORK
44026-017
$25.57
44
WASHER FORK SPRG GUID
44029-008
Unavailable
45
DUST SHIELD FORK
44010-013
$9.43
46
OIL SEAL,FORK
44009-020
$60.50
47
'O' RING INNER TUBE
44046-014
Unavailable
48
GUIDE FORK INNER TUBE
44015-010
$4.48
49
CIRCLIP INN TUBE GUID
44044-007
$2.42
50
CAP FORK COVER
44032-004
Unavailable
51
WASHER FORK COVER
44032-003
Unavailable
52
GASKET FORK COVER
44045-026
Unavailable
53
GUIDE FORK COVER
44030-007
Unavailable
54
BOLT FRNT AXLE PINCH
44041-017
$3.71
55
BOLT HEX HEAD 10X12
113B1012
$1.07
56
TUBE FORK INNER
44013-014
$129.53
