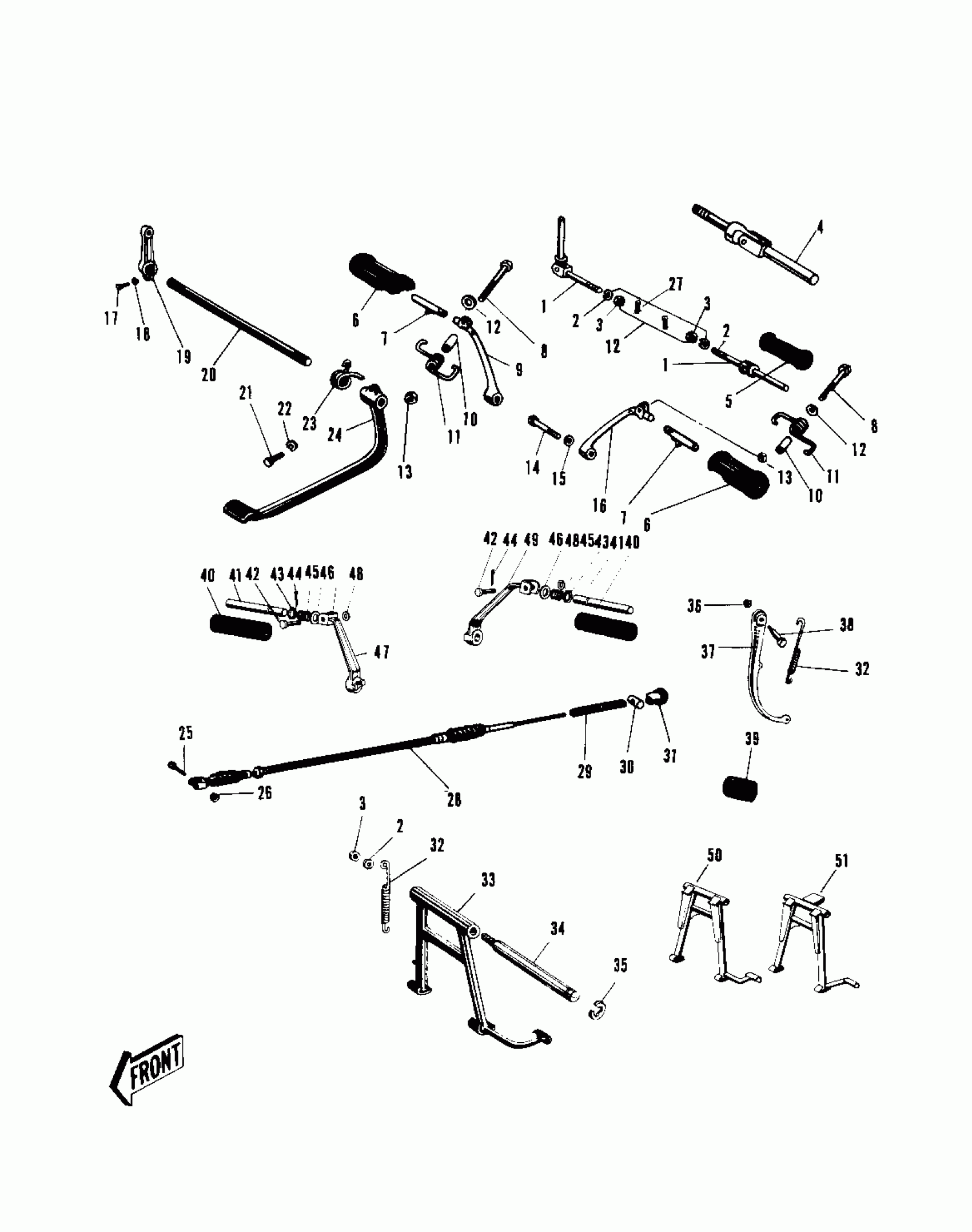

Kawasaki Commander FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
1
BAR R.H REAR FOOTREST
34027-007
Unavailable
2
WASHER SPRING 10MM
461F1000
$0.67
3
NUT-HEX-FINE,10MM
314B1000
$0.67
5
RUBBER REAR FOOTREST
92076-009
$3.03
6
RUBBER FOOTREST
92076-005
$11.69
7
PEG FOOTREST FOLDING
34005-001
Unavailable
8
BOLT,10X45
92001-1182
$10.86
9
BAR FOOTREST R.H
34003-007
Unavailable
10
COLLAR FOOTREST FOLD
92027-016
Unavailable
11
SPRING-FOOTREST FOLD
34006-001
Unavailable
12
WASHER,8X26X2.3
92022-1564
$4.31
13
NUT,8MM
311B0800
$0.67
14
BOLT HEX HEAD 14X55
113B1455
$6.88
15
WASHER SPRING 14MM
461F1400
Unavailable
16
BAR FOOTREST L.H
34003-008
Unavailable
17
BOLT-UPSET,6X40
112G0640
$2.22
18
WASHER SPRING 6MM
461F0600
$0.69
19
LEVER REAR BRAKE
43003-003
Unavailable
20
SHAFT BRAKE PEDAL
43004-004
$56.30
21
BOLT BRAKE PEDAL
92001-044
$0.89
22
WASHER SPRING 8MM
461F0800
$0.40
23
SPRING BRAKE PEDAL
43005-010
$3.29
24
PEDAL BRAKE
43001-023
$34.04
25
PIN R BRK CABLE JOINT
92043-034
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
27
PIN COTTER 2.0X15
550D2015
$1.04
28
CABLE REAR BRAKE
54022-004
$53.78
29
SPRING BRAKE ROD
54025-001
$2.08
30
PIN BRAKE ROD
92043-053
Unavailable
31
NUT BRAKE ROD ADJUST
92015-017
$17.91
32
SPRING STAND
34023-008
Unavailable
33
STAND MAIN
34011-026
Unavailable
34
SHAFT MAIN STAND
34019-010
Unavailable
35
CIRCLIP 15MM
482K0300
$3.64
36
NUT-HEX-FINE,10MM
315B1000
$0.58
37
STAND-SIDE
34024-018
Unavailable
38
BOLT SIDE STAND
92003-024
$4.06
39
DAMPER RUBB SIDE STND
92075-031
$10.21
40
RUBBER FOOTREST
92076-010
Unavailable
41
PEG FOOTREST FOLDING
34005-004
$7.49
42
PIN STER FIXING
92043-037
$3.43
43
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
44
PIN COTTER 2.0X15
550D2015
$1.04
45
SPRING FOOTREST PEG
34006-002
Unavailable
46
WASHER FOLDING PEG
92022-049
Unavailable
47
BAR FOOTREST R.H
34003-016
$28.19
48
WASHER PLAIN 8MM
410B0800
$0.93
49
BAR FOOTREST L.H
34003-017
$20.08
