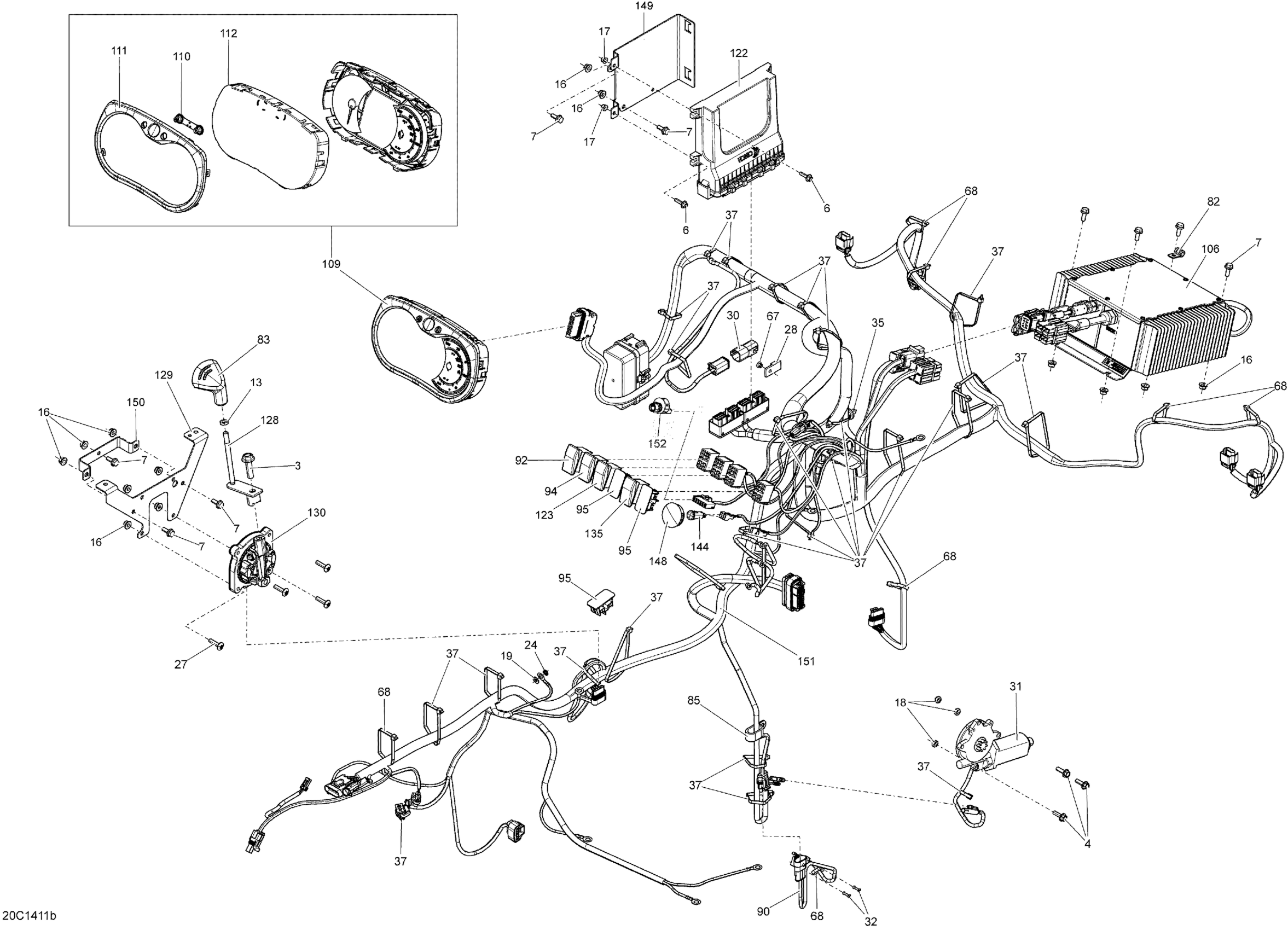

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2014 Electrical System Main Harness_20C1411b Diagram

#

Description
Price

3

Hex. Flange Screw M10 X 35

207503544

$7.17

4

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

6

Hex.Flange Screw M5 X 20

207652044

$1.56

7

Hex. Flange Screw M6 X 16

207661644

$0.61

13

Hex. Jam Nut M8

232180491

$6.18

16

Hex. Flange Nut M6

233061414

$1.34

17

Flange Elastic Nut M5

233251434

$1.66

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Flat Washer 6 mm

234061410

$1.04

24

External Serrated Lock Washer 6 mm

234461608

$0.92

27

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

28

Clip

270000141

$8.33

30

Diagnostic Connector

278002704

$15.57

31

Windshield Motor

278002579

$184.57

32

Pop Rivet

293150150

$2.31

35

Mount Dart

293730040

$0.86

37

Tie Wrap 368 mm

293750008

$0.85

67

Pop Rivet 3/16"

390402400

$0.25

68

Tie-Rap 180 mm

414115200

$0.09

82

Clamp

293650256

$4.36

83

Lever Handle

707000284

$18.43

85

Open Clamp

709000057

$5.52

90

Brake Pressure Switch Ass'y

710001379

$41.51

92

Hi/Low Switch | Except Europe

710001725

$23.74

94

4X4 Switch

710001737

$32.28

95

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

106

CHARGER, 48 VOLTS - Call your local BRP dealership

710002805

Unavailable

109

SPEEDOMETER ASS'Y - Call your local BRP dealership | Includes 600 to 600c

710002864

Unavailable

109

CALIBRATED SPEEDOMETER - Call your local BRP dealership | LTD Model

710003290

Unavailable

110

Speedometer Button | XTP

415129355

$13.94

111

Gauge Ring

415129348

$11.71

112

Lens | XTP

415129349

$23.05

122

VCM MODULE - Call your local BRP dealership

710003777

Unavailable

123

SWITCH - Call your local BRP dealership

710002879

Unavailable

128

UPPER SHIFTER ARM - Call your local BRP dealership

710002929

Unavailable

129

Potentiometer Support

710002932

Unavailable

130

SHIFTER POTENTIOMETER - Call your local BRP dealership

710002933

Unavailable

135

DIFFERENTIAL SWITCH - Call your local BRP dealership

710002958

Unavailable

144

Pilot Lamp

710003222

Unavailable

148

Plug

710003284

Unavailable

149

Support

710003323

Unavailable

150

Potentiomete Stifner

710003451

Unavailable

151

WIRING HARNESS ASSY - Call your local BRP dealership

710003770

Unavailable

152

Ignition Switch

710008400

$78.43
