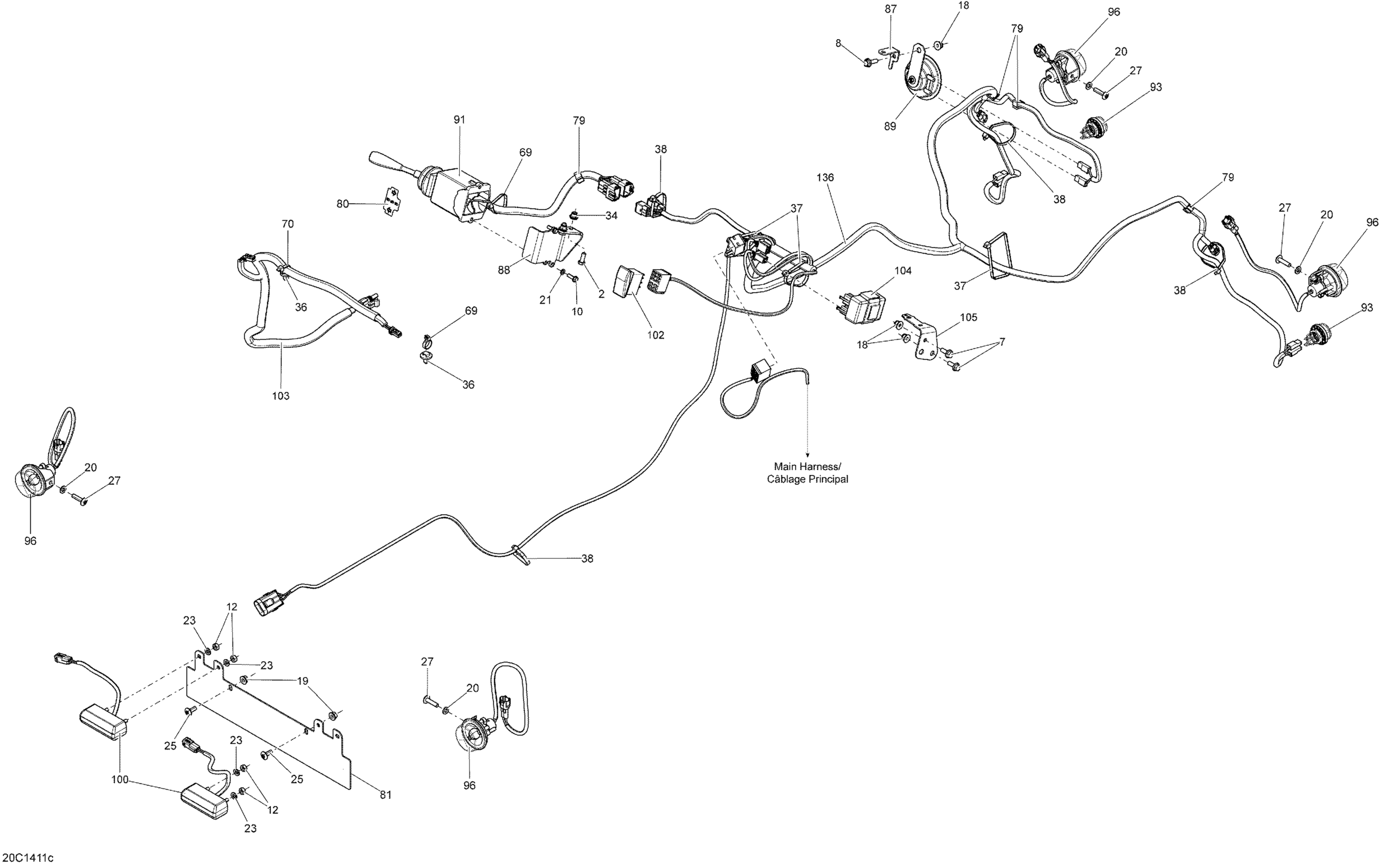

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2014 Electrical System Flasher_20C1411c Diagram

#

Description
Price

2

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

7

Hex. Flange Screw M6 X 16

207661644

$0.61

8

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Hex. Forming Screw M5 X 16

210251650

$0.92

12

Hex. Nut M6

232061600

$0.91

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Flat Washer 6 mm

234061410

$1.04

21

Lock Washer 5 mm | Europe

234151401

$0.46

23

Lock Washer Helical M6

234161601

$0.92

25

Torx Truss Screw M6 X 16

250000721

$1.39

27

Torx Screw M6 x 25

250000284

$1.74

34

Threaded Insert M6 X 1.0

250100242

Unavailable

36

Mount Dart

293730040

$0.86

37

Tie Wrap 368 mm

293750008

$0.85

38

Tie Wrap 368 mm

293750008

$0.85

69

Tie-Rap 180 mm

414115200

$0.09

70

Tie-Rap 180 mm

414115200

$0.09

79

Clip

414227300

$1.45

80

Flasher Decal | Europe

704902614

$16.89

81

Plate Holder | LSV

705007032

$41.51

87

SUPPORT - Call your local BRP dealership

709200284

Unavailable

88

Flasher Arm Support | Europe

709400810

$27.66

89

Horn

710004791

$37.66

91

Turn Signal | Europe

710001721

$198.43

93

Day Light | Europe

710001726

$36.89

96

Flasher | Europe

710002047

$32.28

100

License Light

710002055

$59.99

102

Switch Hazard | Europe

710002076

$18.43

103

Tail Gate Harness Ass'y

710002220

Unavailable

104

Flasher Unit

710003239

$78.43

105

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

136

WIRING HARNESS ASSY - Call your local BRP dealership

710004336

Unavailable
